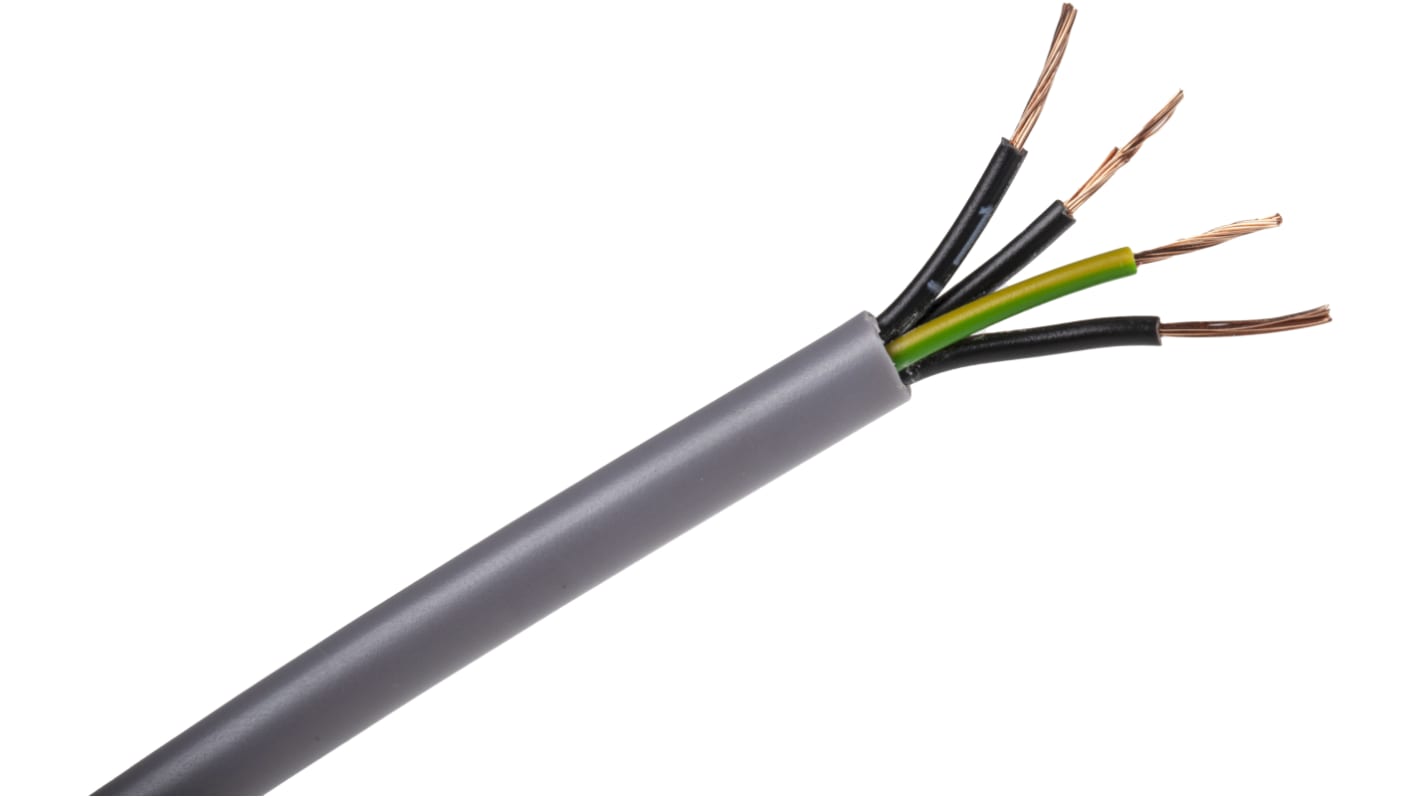

RS PRO Control Cable, 4 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

RS Stock No.:: 827-4268
Distrelec Article No.:: 301-80-445
Manufacturer:: RS PRO

RS PRO Control Cable, 4 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

Bulk discount available

Subtotal (1 reel of 50 metres)**

PHP4,279.59

(exc. VAT)

PHP4,793.14

(inc. VAT)

56 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Reel(s)	Per Reel	Per Metre**
1 - 9	PHP4,279.59	PHP85.592
10 +	PHP4,151.21	PHP83.024

**price indicative

RS Stock No.:: 827-4268
Distrelec Article No.:: 301-80-445
Manufacturer:: RS PRO

LAPP ÖLFLEX® CLASSIC 110 Series Control Cable, 4 Number Of Cores, 0.5 mm² Cross Sectional Area - 1119004

This control cable is designed for a variety of applications, featuring 4 cores with a cross-sectional area of 0.5 mm². Measuring 50m in length, this specially crafted cable utilises bare copper conductors and a grey PVC sheath for optimal flexibility and durability. It is engineered for both fixed and occasional flexing installations, ensuring reliability in demanding environments.

Features & Benefits

• Unsurpassed flexibility, ideal for space-saving installations
• Grey PVC outer sheathing enhances durability and protection
• Rated for up to 9A current capacity for reliable performance
• Flame-retardant properties contribute to safety in installations
• Excellent chemical resistance for longevity in various conditions
• Suitable for use in plant engineering and HVAC systems

Applications

• Used for connecting control circuits in automation
• Effective in conveyor and transport systems
• Ideal for heating and air conditioning systems
• Utilised in various industrial control

What are the electrical cable specifications for this product?

The control cable has a voltage rating of 300/500 V and can handle a maximum DC resistance of 39 ohms/km. Its testing voltage is rated at 4000V AC, making it suitable for robust applications.

What makes this cable suitable for different environmental conditions?

The cable features an oil-resistant design, allowing it to thrive in environments where exposure to oils is possible. Additionally, it can operate in temperatures ranging from -40°C to +80°C, making it versatile for various uses.

How does the filler material improve the cable's performance?

Incorporating a non-wicking filler material ensures that moisture does not affect the overall performance, enhancing the cable's reliability in humid or damp environments.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Series	ÖLFLEX® CLASSIC 110
	Number of Cores	4
	Cross Sectional Area	0.5 mm²
	American Wire Gauge	20 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Length	50m
	Minimum Bend Radius	Fixed - 4 x D , Flexing - 15 x D
	Outer Diameter	5.7mm
	Voltage Rating	300/500 V
	Current Rating	9 A
	CPR Certification	Eca
	Standards Met	EN 50525-2-51
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+80°C
	Conductor Resistance	39 Ω/km
	Filler Material	Non-Wicking Filler
	Core Strands	16/0.20 mm
	Insulation Material	PVC
	Earth Cable	Yes
	Cable Shape	Multicore
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes

	Select all
	Brand RS PRO
	Series ÖLFLEX® CLASSIC 110
	Number of Cores 4
	Cross Sectional Area 0.5 mm²
	American Wire Gauge 20 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Length 50m
	Minimum Bend Radius Fixed - 4 x D , Flexing - 15 x D
	Outer Diameter 5.7mm
	Voltage Rating 300/500 V
	Current Rating 9 A
	CPR Certification Eca
	Standards Met EN 50525-2-51
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +80°C
	Conductor Resistance 39 Ω/km
	Filler Material Non-Wicking Filler
	Core Strands 16/0.20 mm
	Insulation Material PVC
	Earth Cable Yes
	Cable Shape Multicore
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
