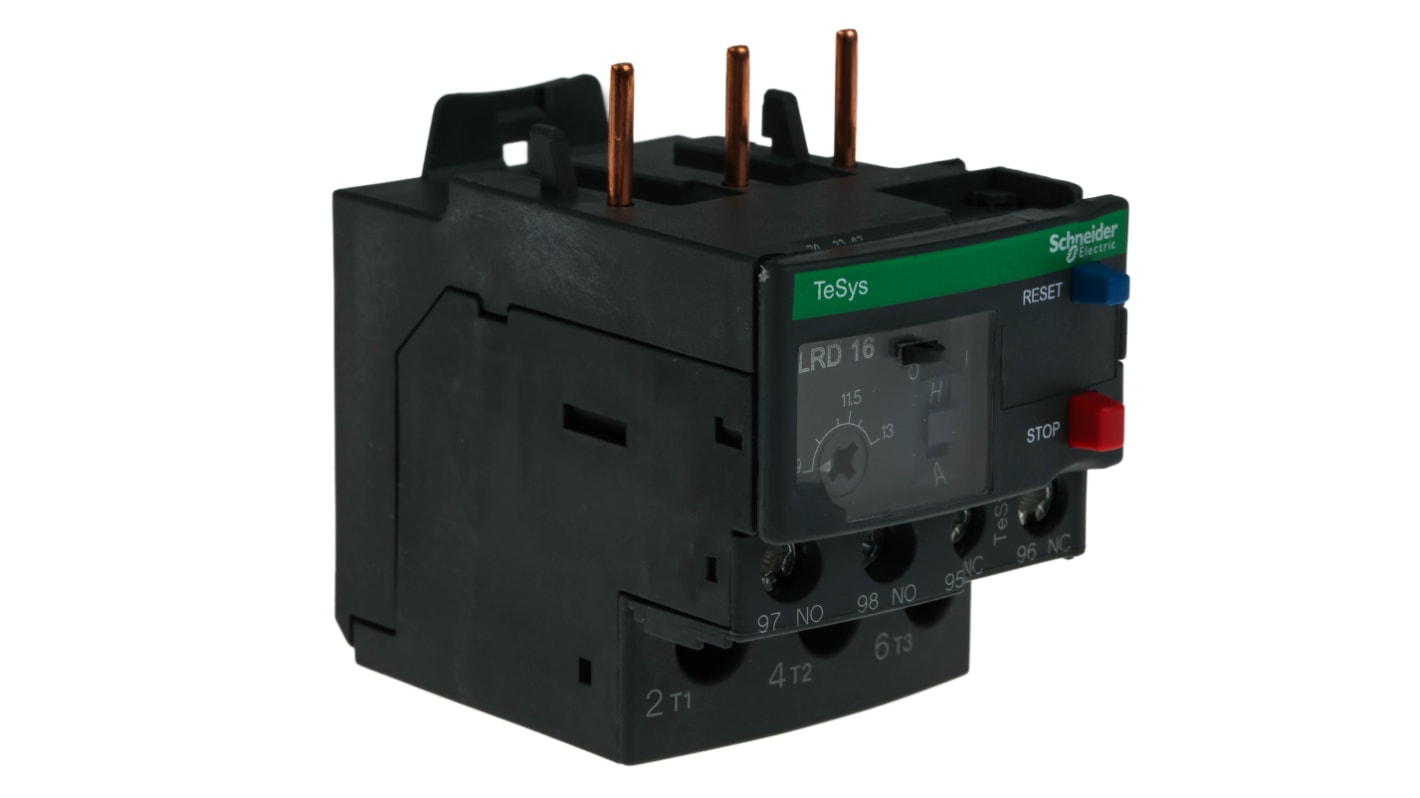

Schneider Electric, LRD Thermal Overload Relay 1 NO/1 NC, 9 to 13 A F.L.C, 13 A Contact Rating, 5.5 kW 3
- RS Stock No.:
- 394-9346
- Distrelec Article No.:
- 136-22-711
- Mfr. Part No.:
- LRD16
- Manufacturer:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
PHP2,091.65
(exc. VAT)
PHP2,342.65
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 99 unit(s) shipping from February 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP2,091.65 |
| 5 + | PHP1,987.07 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 394-9346
- Distrelec Article No.:
- 136-22-711
- Mfr. Part No.:
- LRD16
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 9 to 13 A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 13 A | |
| Mount Type | Direct | |
| Series | LRD | |
| Power Rating | 5.5kW | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 9 to 13 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Width | 45 mm | |
| Contact Voltage | 690V ac | |
| Length | 66mm | |
| Maximum Operating Temperature | 60°C | |
| Depth | 70mm | |
| Standards/Approvals | EAC Approved, CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved | |
| Better World Product | Yes | |
| Supply Voltage | 690 V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 9 to 13 A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 13 A | ||
Mount Type Direct | ||
Series LRD | ||
Power Rating 5.5kW | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 9 to 13 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Width 45 mm | ||
Contact Voltage 690V ac | ||
Length 66mm | ||
Maximum Operating Temperature 60°C | ||
Depth 70mm | ||
Standards/Approvals EAC Approved, CSA Approved, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL Approved, EC Approved, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, UL Approved | ||
Better World Product Yes | ||
Supply Voltage 690 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric LRD Series Thermal Overload Relay, 9 to 13A FLC Motor Rating, 690V AC Contact Voltage Rating - LRD16
This thermal overload relay is designed for motor protection applications. With a flexible current rating of 9 to 13A and a compact size of 66mm in height, 45mm in width, and 70mm in depth, it efficiently safeguards motor circuits against overload conditions. The device operates within a temperature range of -20 to +60 °C, ensuring reliability in various environments. Its robust build includes screw terminals for secure connections, making it suitable for direct contactor mounting in industrial settings.
Features & Benefits
• Designed for protection against thermal overloads in motors
• Automatic reset feature enhances operational efficiency
• Compatible with 690V AC, ensuring high-performance ratings
• 1NO + 1NC auxiliary contacts allow versatile integration
• Direct contactor mounting simplifies installation processes
• Robust thermal protection adjustment from 9A to 13A
Applications
• Used with various contactors to enhance motor safety
• Ideal for industrial requiring reliable overload protection
• Suitable for environments needing high temperature tolerance up to 60 °C
• Commonly employed in automation systems for motor management
What terminal types are available for this device?
It features screw clamp terminals that accommodate flexible and solid cables, ensuring durable and secure connections.
How does the automatic reset functionality improve usability?
The automatic reset feature reduces the need for manual intervention, allowing for continuous operation without frequent checks during overload situations.
What is the significance of having a thermal overload class of 10A?
This class ensures precise protection for motor applications, making it suitable for environments with variable load conditions, limiting potential damage from overloads.
Can this relay be used in both AC and DC networks?
Yes, it is compatible with both AC and DC networks, providing flexibility for different electrical setups and enhancing its utility across various applications.
