Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, 16A, 24 A F.L.C, 5A Contact Rating

View all Contactor Overload Relays

Subtotal (1 unit)*

PHP18,321.03

(exc. VAT)

PHP20,519.55

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP18,321.03

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
256-6686
Mfr. Part No.:
LRD226
Manufacturer:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Thermal Overload Relay

FLC Motor Rating

16, 24A

Relay Contact Current

5A

Mount Type

Plate, Under Contactor Mount, Rail

Series

TeSyS LR

Normal State Configuration

1 NO/1 NC

IP Rating

IP20

Reset Method

Push Button

Minimum Operating Temperature

-20°C

Width

45mm

Number of Auxiliary Contacts

2

Length

66mm

Maximum Operating Temperature

60°C

Depth

70mm

Standards/Approvals

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495

Better World Product

Yes

Supply Voltage

690V ac

COO (Country of Origin):
FR

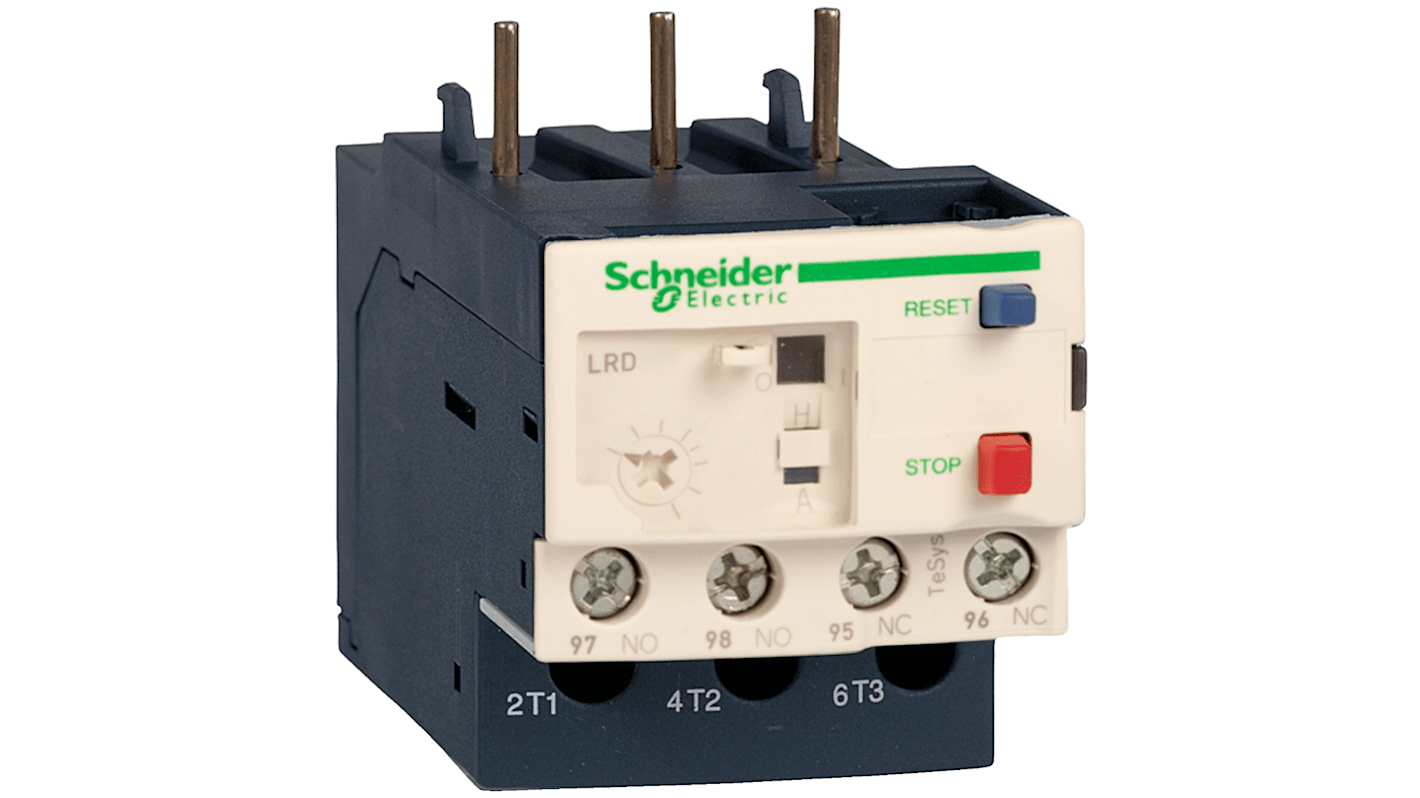

Schneider Electric LRD226


TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

The Schneider Electric TeSys LRD thermal overload relay provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors.

New modern look & feel of all machines

Easier to install and operate with multi-standard screws

Digital customer experience for technical documents
