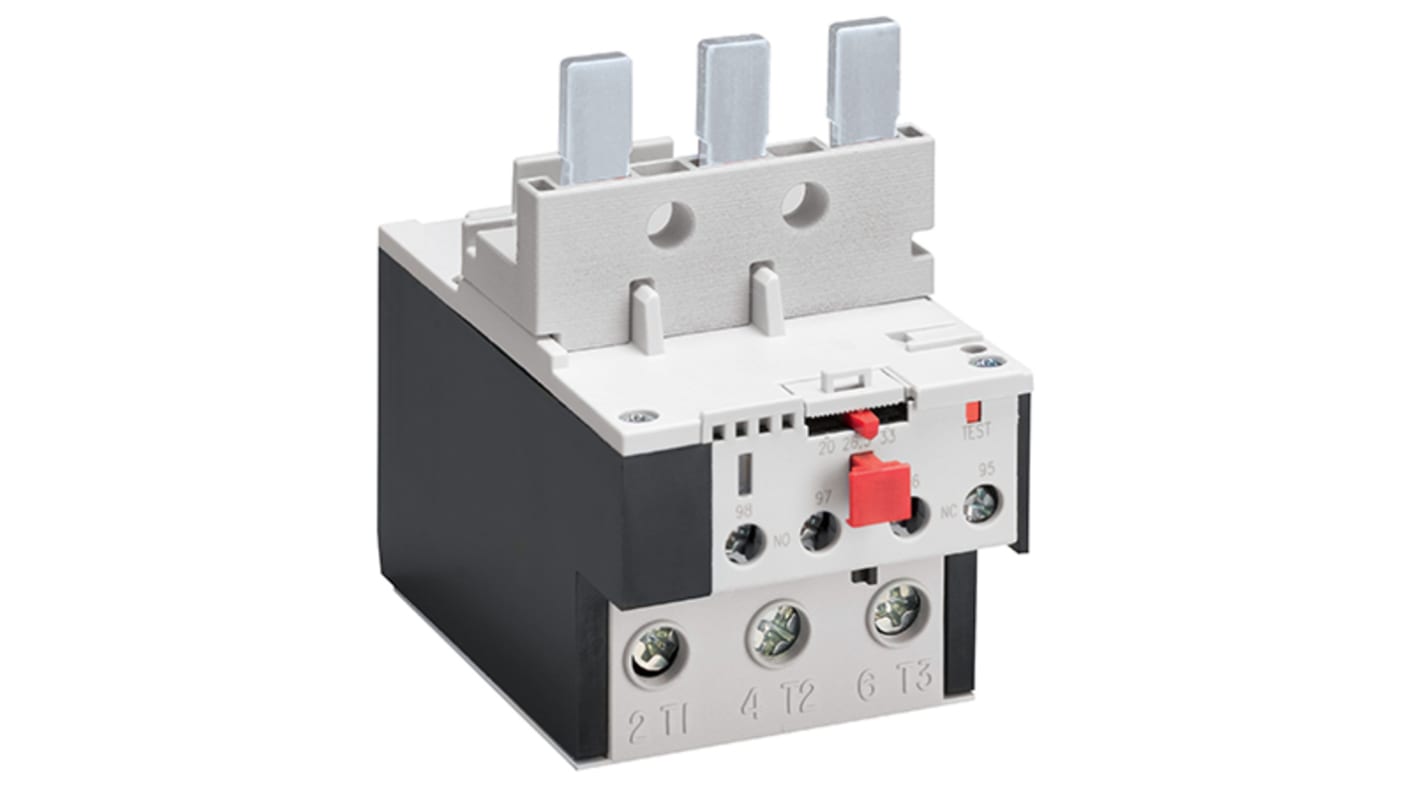

Lovato Electric, RF82 Thermal Overload Relay, Trip Dial: 95 A, 95A F.L.C, 95A Contact Rating, 690V 3P
- RS Stock No.:
- 248-5644
- Mfr. Part No.:
- RF829500
- Manufacturer:
- Lovato Electric
Subtotal (1 unit)*
PHP20,270.42
(exc. VAT)
PHP22,702.87
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from November 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP20,270.42 |
*price indicative
- RS Stock No.:
- 248-5644
- Mfr. Part No.:
- RF829500
- Manufacturer:
- Lovato Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 95A | |
| Relay Contact Current | 95A | |
| Series | RF82 | |
| Mount Type | Direct | |
| Pole and Throw Configuration | 3P | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Manual | |
| Minimum Operating Temperature | -20°C | |
| Number of Auxiliary Contacts | 2 | |
| Width | 9mm | |
| Adjustable Current Range | 95 A | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 55°C | |
| Length | 194mm | |
| Standards/Approvals | CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | |
| Depth | 114.5mm | |
| Supply Voltage | 690V | |
| Control Voltage | 690V | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 95A | ||
Relay Contact Current 95A | ||
Series RF82 | ||
Mount Type Direct | ||
Pole and Throw Configuration 3P | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Manual | ||
Minimum Operating Temperature -20°C | ||
Number of Auxiliary Contacts 2 | ||
Width 9mm | ||
Adjustable Current Range 95 A | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 55°C | ||
Length 194mm | ||
Standards/Approvals CSA C22.2 n° 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | ||
Depth 114.5mm | ||
Supply Voltage 690V | ||
Control Voltage 690V | ||
- COO (Country of Origin):
- IT
The Lovato product is an electronic thermal overload relay for BF series contactors. It is self powered by the main circuit current and therefore do not require separate auxiliary supply voltage. RFE electronic thermal overload relays are suitable for all types of motor starting thanks to the possibility to select several tripping classes.
Three pole relay
Phase failure sensitive
Mounting position is any
Sealable current adjuster and dip switches for tripping class selection
