Belden 9259 Series, 152 m, RG59/U Coaxial, Unterminated 75 Ω

RS Stock No.:: 331-9199
Mfr. Part No.:: 9259 010U500
Manufacturer:: Belden

Belden 9259 Series, 152 m, RG59/U Coaxial, Unterminated 75 Ω

Subtotal (1 reel of 152 metres)*

PHP48,776.64

(exc. VAT)

PHP54,629.84

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	PHP48,776.64	PHP320.899

*price indicative

RS Stock No.:: 331-9199
Mfr. Part No.:: 9259 010U500
Manufacturer:: Belden

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Product Type	SDI Coaxial Cable
	Terminated/Unterminated	Unterminated
	Coaxial Type	RG59/U
	American Wire Gauge	22AWG
	Voltage	300 Vrms
	Outside Diameter	0.241 in
	Characteristic Impedance	75Ω
	Conductor Type	Stranded
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Cable Length	152m
	Standards/Approvals	CPR Euroclass: Eca, UL Style 1354, CEC/C(UL)) Specification: CM, NEC/(UL)) Specification: CM
	Jacket Colour	Black
	Fire Behaviour	Fire Resistant
	Jacket Material	Polyvinyl Chloride
	Conductor Material	Bare Copper
	Series	9259
	Core Strands	7

	Select all
	Brand Belden
	Product Type SDI Coaxial Cable
	Terminated/Unterminated Unterminated
	Coaxial Type RG59/U
	American Wire Gauge 22AWG
	Voltage 300 Vrms
	Outside Diameter 0.241 in
	Characteristic Impedance 75Ω
	Conductor Type Stranded
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Cable Length 152m
	Standards/Approvals CPR Euroclass: Eca, UL Style 1354, CEC/C(UL)) Specification: CM, NEC/(UL)) Specification: CM
	Jacket Colour Black
	Fire Behaviour Fire Resistant
	Jacket Material Polyvinyl Chloride
	Conductor Material Bare Copper
	Series 9259
	Core Strands 7

COO (Country of Origin):: US

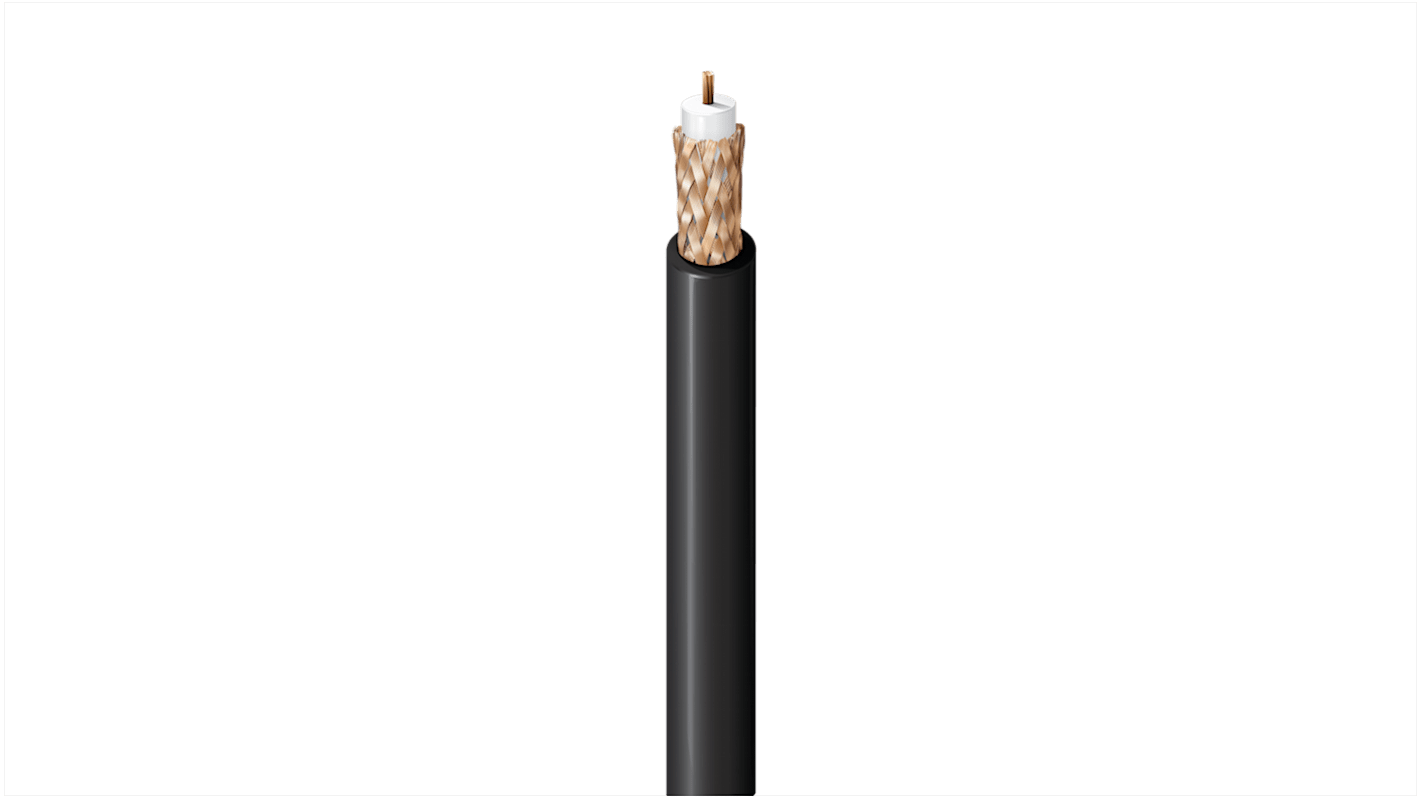

Belden SDI Coaxial Cable, 6.1mm Diameter, Braided Shield - 9259 Series - 9259 010U500

Looking for an easy way to transmit digital video signals? Choose this RG-59 SDI coaxial cable from Belden. Its braided bare copper shielding cuts crosstalk from nearby devices, so you get crystal-clear signalling. As the cable comes on a 152m reel, you get plenty for wiring up offices and other large areas. An operating temperature range from -40°C to +80°C makes this an ideal pick for harsh environments.

Features & Benefits

• Durable PVC jacket for a long service life

• 61mm bend radius means it's flexible enough for use in complex systems

• Unterminated, so you can use connectors that suit your needs

• Speedy transmission up to 10Mbps

Applications

• Office networking

• Security systems

• Satellite receivers

Is this product suitable for domestic applications?

Yes. RG-59 cables have a slim centre conductor, so they're easy to install in walls and ceilings. They can also transmit across short distances in domestic applications.
