Siretta N Type, SMA Series, 15 m, LLC200A Coaxial Coaxial Cable 50 Ω, Black, Terminated
- RS Stock No.:
- 140-8019
- Mfr. Part No.:
- ASMN1500A058L13
- Manufacturer:
- Siretta
Bulk discount available
Subtotal (1 bag of 1 unit)*
PHP4,696.69
(exc. VAT)
PHP5,260.29
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag |
|---|---|
| 1 - 4 | PHP4,696.69 |
| 5 + | PHP4,227.02 |
*price indicative
- RS Stock No.:
- 140-8019
- Mfr. Part No.:
- ASMN1500A058L13
- Manufacturer:
- Siretta
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siretta | |
| Terminated/Unterminated | Terminated | |
| Product Type | Coaxial Cable | |
| Coaxial Type | LLC200A | |
| Outside Diameter | 5mm | |
| Characteristic Impedance | 50Ω | |
| Attenuation | 0.15 dB | |
| Conductor Type | Solid | |
| Cable Length | 15m | |
| Jacket Colour | Black | |
| Standards/Approvals | RoHS | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 19 | |
| Conductor Material | Copper | |
| Series | N Type, SMA | |
| Jacket Material | Polyvinyl Chloride | |
| Select all | ||
|---|---|---|
Brand Siretta | ||
Terminated/Unterminated Terminated | ||
Product Type Coaxial Cable | ||
Coaxial Type LLC200A | ||
Outside Diameter 5mm | ||
Characteristic Impedance 50Ω | ||
Attenuation 0.15 dB | ||
Conductor Type Solid | ||
Cable Length 15m | ||
Jacket Colour Black | ||
Standards/Approvals RoHS | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 19 | ||
Conductor Material Copper | ||
Series N Type, SMA | ||
Jacket Material Polyvinyl Chloride | ||

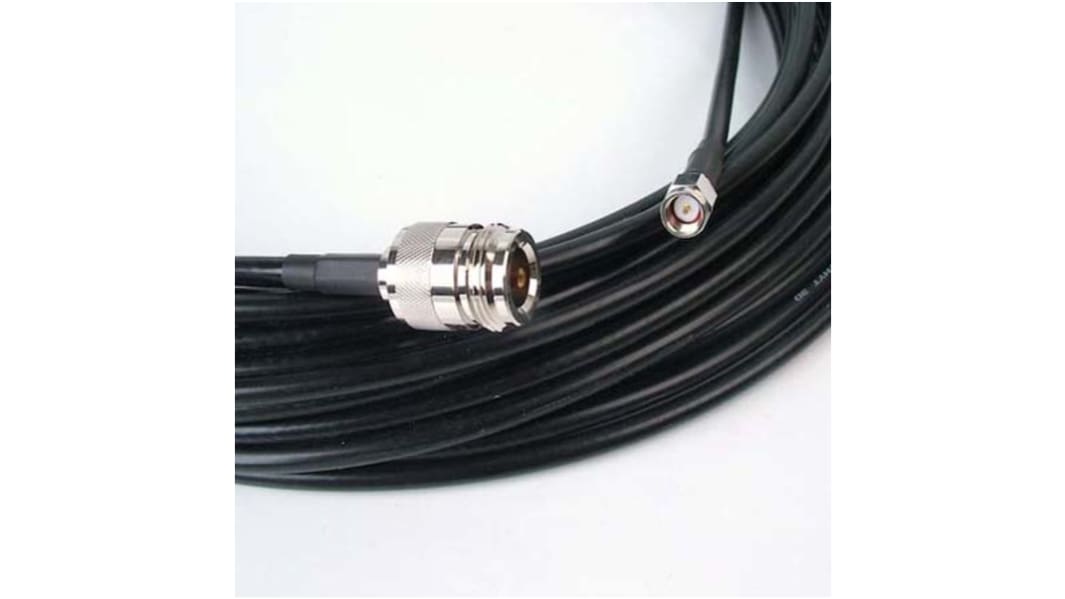

SMA Male to N-Type Female LLC200A Coaxial Cables, Siretta
Available in two cable lengths with an SMA Male connector and an N-Type Female connector:
ASMN500A058L13 - 5 m cable (124-8842)
ASMN1000A058L13 - 10 m cable (124-8843)
ASMN1500A058L13 - 15 m cable (140-8019)
ASMN2000A058L13 - 20 m cable (140-8020)
Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz
Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC
