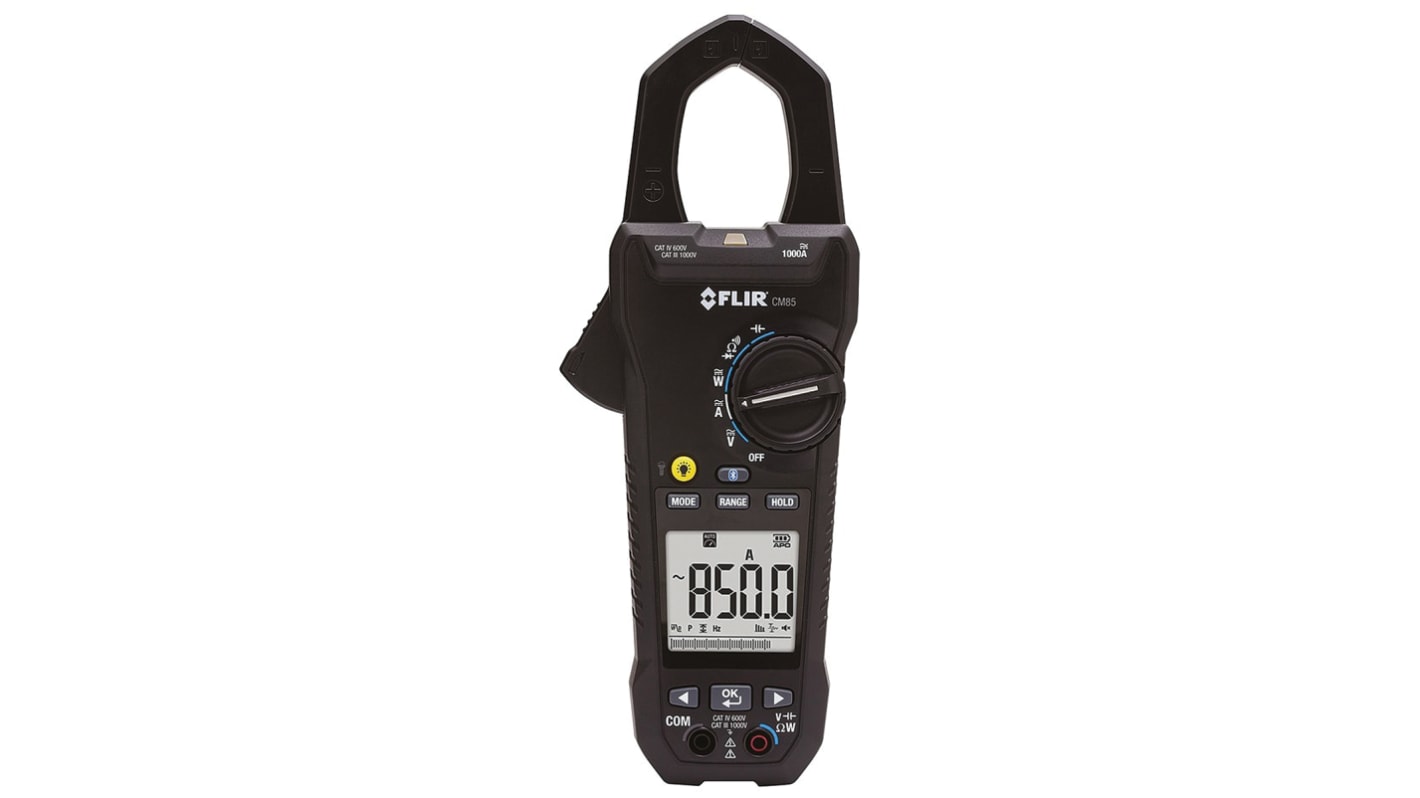

FLIR CM85 Clamp Meter Bluetooth, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V

RS Stock No.:: 848-1347
Mfr. Part No.:: CM85
Manufacturer:: FLIR

FLIR CM85 Clamp Meter Bluetooth, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V

Subtotal (1 unit)**

PHP31,368.04

(exc. VAT)

PHP35,132.20

(inc. VAT)

4 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit
1 +	PHP31,368.04

**price indicative

RS Stock No.:: 848-1347
Mfr. Part No.:: CM85
Manufacturer:: FLIR

FLIR CM85 1000V/1000A True RMS AC/DC Power Clamp Meter

From FLIR, the CM85 True RMS power clamp meter with advanced power analysis and variable frequency drive (VFD mode). Designed specifically for industrial environments the CM85 clamp meter can check exceedingly high voltage and current up to 1000V/1000A, both AC and DC.

Working in industrial environments are often challenging and you may not be able to see readings or results, well not anymore! The FLIR CM85 has integrated Bluetooth METERLiNK™ technology. The clever feature allows data to be wirelessly sent to compatible smartphones or tablets that have the FLIR Tools mobile app. The app enables users to view data and share results remotely and safely. The CM85 can also be interfaced directly with compatible FLIR thermal imaging cameras by adding clamp meter readings to captured images.

Ergonomically designed, with built-in LED work lights the CM85 clamp meter can also provide extra illumination for environments with little or no light. Readings are clearly visible on the large backlit LCD display. Ideal for dark cabinets racks and panels.

Compact, lightweight and easy to operate the FLIR CM85 clamp meter is THE all-in-one professional electrical test tool. Packed with an array of advanced features including; VFD, inrush current, power factor, harmonics, and total harmonic distortion, resistance, continuity, frequency capacitance, and diode.

Features and Benefits

VFD mode for use on variable frequency drive equipment

Advanced power efficiency and harmonics

Phase rotation testing

Inrush current

1000 AC/DC amperage measurement

1000 V AC/DC voltage measurement

True RMS Digital Multimeter

Powerful built-in LED worklights

Large bright white backlit screen

Analogue bar graph and digital display

NVD (non-contact voltage detection)

MIN/MAX/AVG calculation

Data hold and peak hold

Low battery status

Automatic power down

Clamp jaw opening 45 mm

Applications

Built for industrial applications the FLIR CM85 power clamp meters are used widely by experienced field engineers, electricians and technicians. The advanced tool helps with electrical measurement, verification, diagnostics and troubleshooting. Some of the most common applications are

Electrical energy industry

Facility maintenance and management

Utilities

Electric motor installation

Optional Extras

187-4886 foe the TA11 Protective Case

187-4882 for the TA03-KIT NIMH Rechargeable Battery Kit

187-4894 for the TA80 CAT IV Silicone Test Leads

123-6703 for the TA15 Universal Soft Sided Case

187-4892 for the TA70 CAT IV Insulated Alligator Probes

Standards

CAT IV-600V, CAT III-1000V

Supplied with

Clamp Meter, 6 x AAA Batteries, CAT IV Silicone test leads, user manual/CD

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FLIR
	Absolute Maximum AC Current Measurement	1kA ac
	Absolute Maximum DC Current Measurement	1kA dc
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum Resistance Measurement	99.99kΩ
	Model Number	CM85
	Connectivity	Bluetooth
	Best DC Current Accuracy	±2 %
	Clamp Meter Type	Power Clamp Meter
	Best AC Current Accuracy	±2 %
	Best AC Voltage Accuracy	±0.7 %
	Best DC Voltage Accuracy	±0.7 %
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
	True RMS	Yes
	Jaw Capacity Busbars	45mm
	Safety Category	CAT III 1000 V, CAT IV 600 V
	Best Resistance Measurement Accuracy	±1 %
	Display Type	LED
	Power Source	Battery
	Non-Contact Voltage Detector	Yes
	Safety Category Level	CAT III, CAT IV
	Battery Type	6 x AAA
	Safety Category Voltage	600 V, 1000 V
