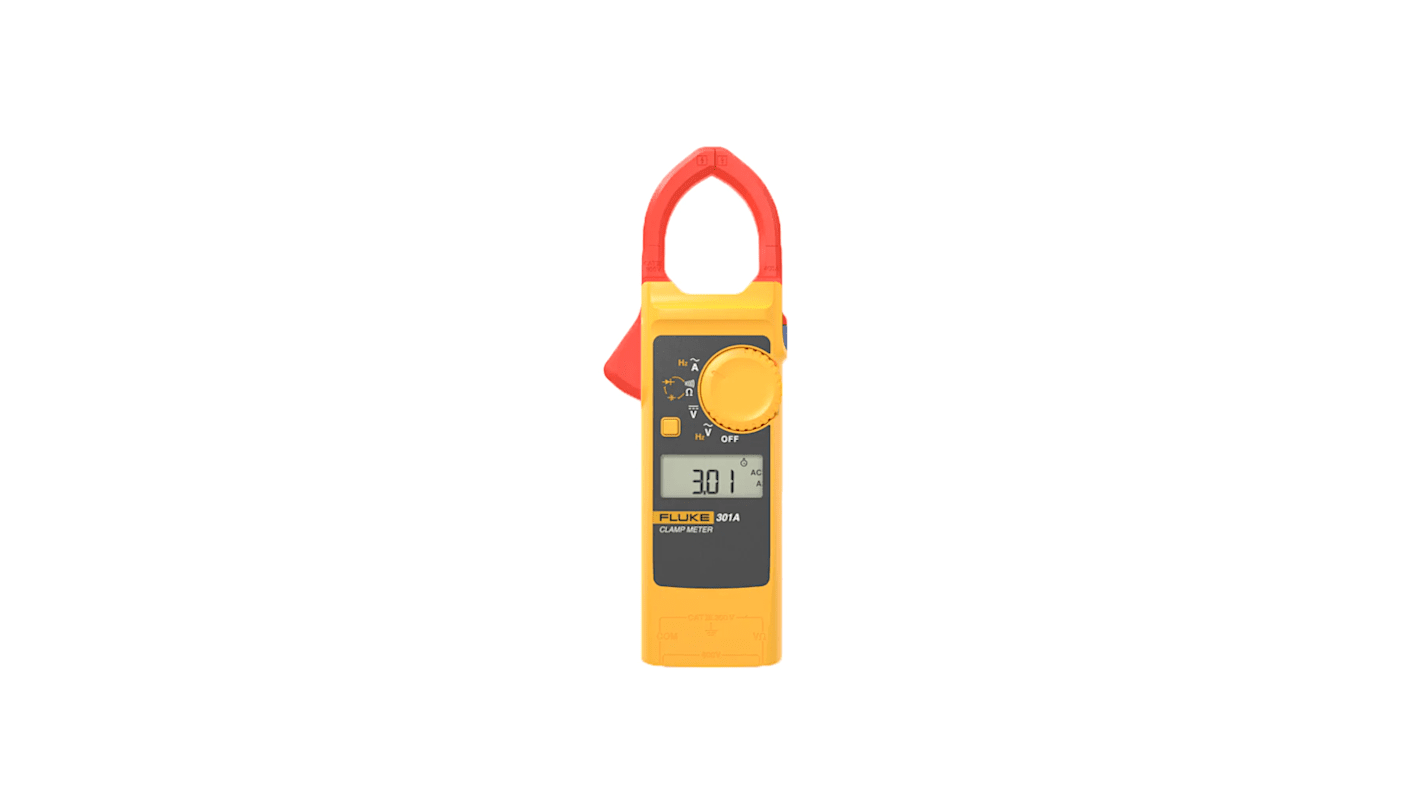

Fluke 301A+ Clamp Meter, 400 A dc 400 A 600 V dc 600 V ac CAT III
- RS Stock No.:
- 281-5824
- Mfr. Part No.:
- FLUKE-301A+/CN
- Manufacturer:
- Fluke
- RS Stock No.:
- 281-5824
- Mfr. Part No.:
- FLUKE-301A+/CN
- Manufacturer:
- Fluke
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Clamp Meter | |
| Maximum DC Current Measurement | 400A dc | |
| Maximum AC Voltage Measurement | 600V ac | |
| Maximum DC Voltage Measurement | 600V dc | |
| Maximum Resistance Measurement | 60kΩ | |
| Model Number | 301A+ | |
| AC Voltage Accuracy | ±1.5 % rdg + 5 Digits | |
| DC Voltage Resolution | 0.1 V dc | |
| Minimum Operating Temperature | -10°C | |
| AC Current Accuracy | ±2 % rdg + 10 Digits | |
| Maximum Jaw Opening | 34mm | |
| AC Voltage Resolution | 0.1V ac | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| DC Voltage Accuracy | 1.5 % | |
| Maximum Operating Temperature | 50°C | |
| Weight | 132g | |
| Standards/Approvals | IEC 610101, IEC610102032 | |
| Width | 52mm | |
| Functions Measured | Current, Continuity, Frequency, Resistance, Voltage, Diode, Capacitance | |
| Safety Category Voltage | 300V | |
| Battery Type | AAA IEC LR03 | |
| Power Source | Battery | |
| Battery Life | 500h | |
| Display Type | LCD | |
| Safety Category Level | CAT III | |
| Maximum AC Current Measurement | 400A | |
| Maximum Conductor Size | 34mm | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Clamp Meter | ||
Maximum DC Current Measurement 400A dc | ||
Maximum AC Voltage Measurement 600V ac | ||
Maximum DC Voltage Measurement 600V dc | ||
Maximum Resistance Measurement 60kΩ | ||
Model Number 301A+ | ||
AC Voltage Accuracy ±1.5 % rdg + 5 Digits | ||
DC Voltage Resolution 0.1 V dc | ||
Minimum Operating Temperature -10°C | ||
AC Current Accuracy ±2 % rdg + 10 Digits | ||
Maximum Jaw Opening 34mm | ||
AC Voltage Resolution 0.1V ac | ||
Clamp Meter Type AC/DC Clamp Meter | ||
DC Voltage Accuracy 1.5 % | ||
Maximum Operating Temperature 50°C | ||
Weight 132g | ||
Standards/Approvals IEC 610101, IEC610102032 | ||
Width 52mm | ||
Functions Measured Current, Continuity, Frequency, Resistance, Voltage, Diode, Capacitance | ||
Safety Category Voltage 300V | ||
Battery Type AAA IEC LR03 | ||
Power Source Battery | ||
Battery Life 500h | ||
Display Type LCD | ||
Safety Category Level CAT III | ||
Maximum AC Current Measurement 400A | ||
Maximum Conductor Size 34mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
