Deutsch 6862 Series, size 20 7.5A Female Crimp Contact for use with IMC Series Connector, Wire size 24 → 20 AWG

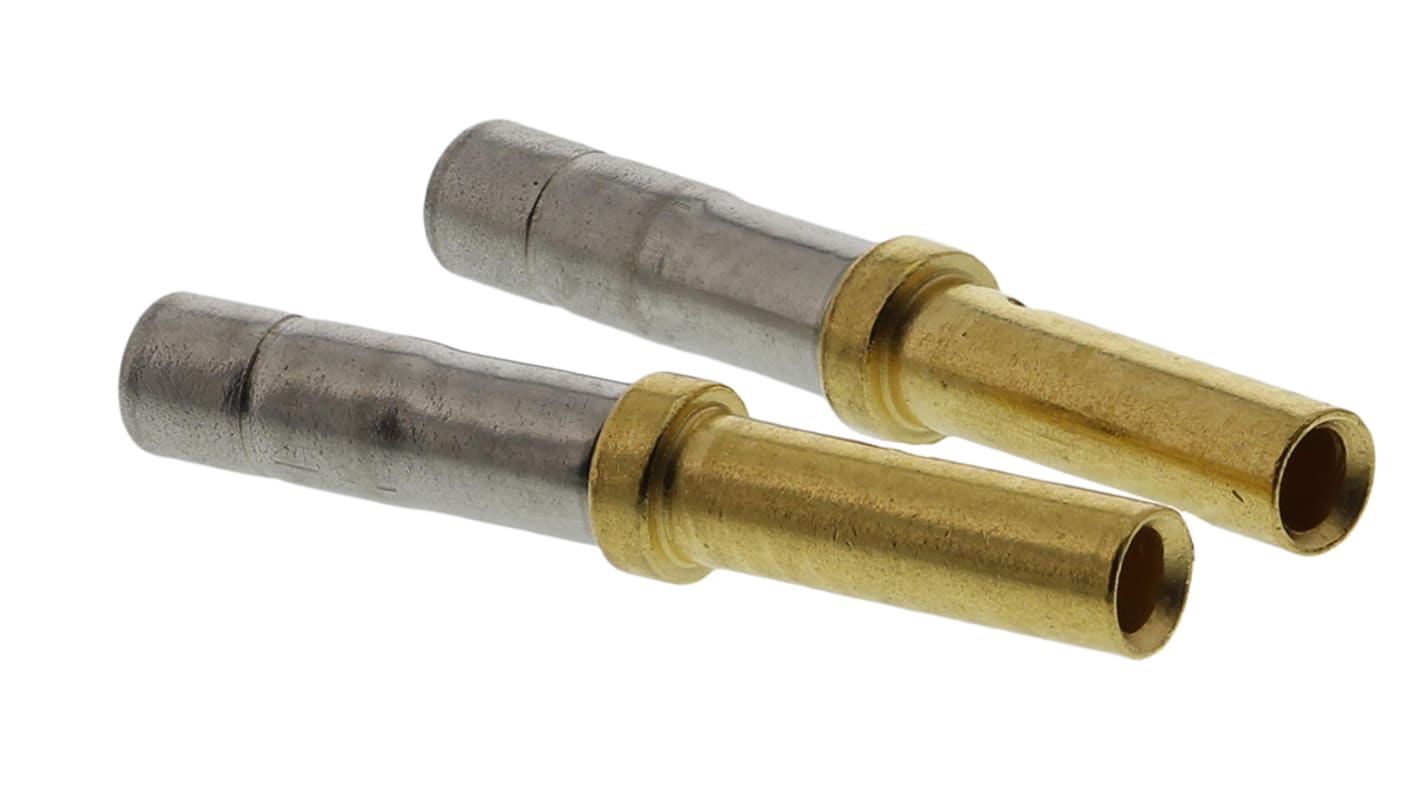

This image is representative of the product range

View this category
Stock information currently inaccessible
RS Stock No.:
314-7455
Mfr. Part No.:
6862-201-20278
Manufacturer:
Deutsch
Find similar products by selecting one or more attributes.
Select all

Brand

Deutsch

Gender

Female

Contact Size

20

Wire Size

24 → 20 AWG

Termination Method

Crimp

Series

6862

For Use With

IMC Series Connector

Current Rating

7.5A

Contact Plating

Gold over Nickel

Voltage Rating

1 kV ac

Contact Material

Copper Alloy

Maximum Contact Resistance

10mΩ

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+175°C

Machined Crimp/Solder Contacts


• Stock No. 314-6840 is a size 16 Pin Crimp for IP67 Connector
• Stock No. 314-6856 is a size 20 Pin Crimp for IP67 Connector
• Stock No. 314-6862 is a size 22 Pin Crimp for IP67 Connector
• Stock No. 314-7449 is a size 16 Socket Crimp for IP67 Connector
• Stock No. 314-7455 is a size 20 Socket Crimp for IP67 Connector
• Stock No. 314-7461 is a size 22 Socket Crimp for IP67 Connector


Quick Connect Series


A range of hard wearing RoHS compliant, IP68 sealed electrical connectors. The thumb latch mechanism and chunky keyway allows for easy connection and disconnection. Back fittings enable either half to be panel mounted or sealed to a cable. A flange can be added for bulkhead mounting. Loose contacts can be soldered or crimped. The plug half is provided with a cap to protect the contacts when the mated pairs are uncoupled.


Constructed from Ultem® impact, temperature and corrosion resistant composite material, ideal for use with over-moulding and heat shrink tube
Positive thumb latch receptacle has pin contacts and the plug socket contacts
2, 7 and 12 way scoop proof plan forms
