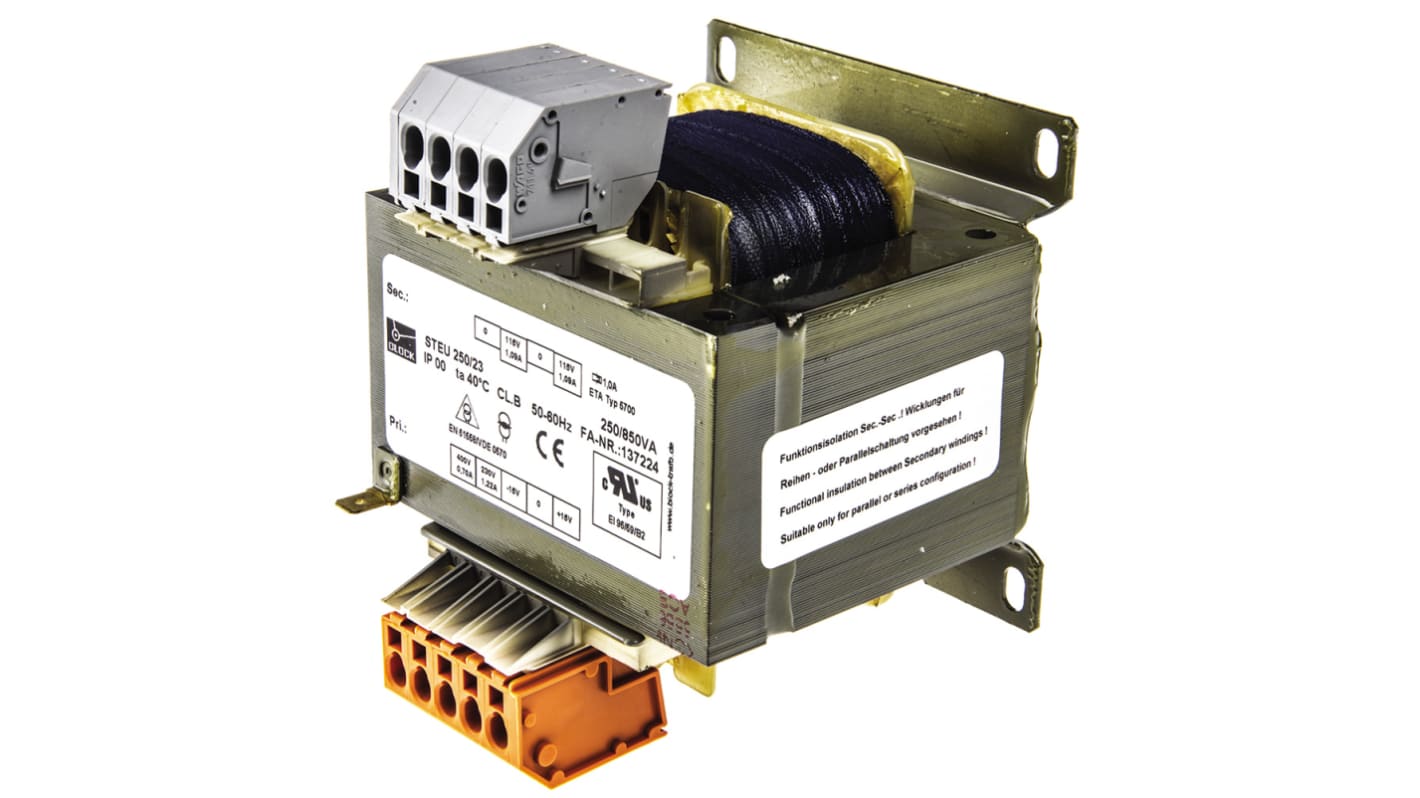

Block 2 Output 250 VA Chassis Mount Transformer, 2 x 115 V ac, IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66, DIN EN
- RS Stock No.:
- 361-8092
- Mfr. Part No.:
- STEU250/23
- Manufacturer:
- Block
Bulk discount available
Subtotal (1 unit)*
PHP6,930.52
(exc. VAT)
PHP7,762.18
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 11 unit(s) shipping from March 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP6,930.52 |
| 25 + | PHP6,737.60 |
*price indicative
- RS Stock No.:
- 361-8092
- Mfr. Part No.:
- STEU250/23
- Manufacturer:
- Block
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Primary Voltage | 400 V ac, 230 V | |
| Product Type | Chassis Mount Transformer | |
| Secondary Voltage | 2 x 115 V ac | |
| Number of Outputs | 2 | |
| Power | 250VA | |
| Maximum Operating Temperature | 40°C | |
| Width | 96 mm | |
| Depth | 125mm | |
| Weight | 3.6kg | |
| Series | STEU 250/23 | |
| Minimum Operating Frequency | 50Hz | |
| Length | 96mm | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66, DIN EN 61558-2-2, VDE 0570 Teil 2-2, EN 61558-2-2 | |
| Select all | ||
|---|---|---|
Brand Block | ||
Primary Voltage 400 V ac, 230 V | ||
Product Type Chassis Mount Transformer | ||
Secondary Voltage 2 x 115 V ac | ||
Number of Outputs 2 | ||
Power 250VA | ||
Maximum Operating Temperature 40°C | ||
Width 96 mm | ||
Depth 125mm | ||
Weight 3.6kg | ||
Series STEU 250/23 | ||
Minimum Operating Frequency 50Hz | ||
Length 96mm | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66, DIN EN 61558-2-2, VDE 0570 Teil 2-2, EN 61558-2-2 | ||
- COO (Country of Origin):
- DE
Safety Isolating Transformer
Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B
Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation
Approvals
UL Recognised Component for Canada & US
Standards
EN 61558, VDE0570
