Arcol HS100 1R5 J, 1.5 Ω 100 W Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 252-2906
- Distrelec Article No.:
- 160-68-076
- Mfr. Part No.:
- HS100 1R5 J
- Manufacturer:
- Arcol

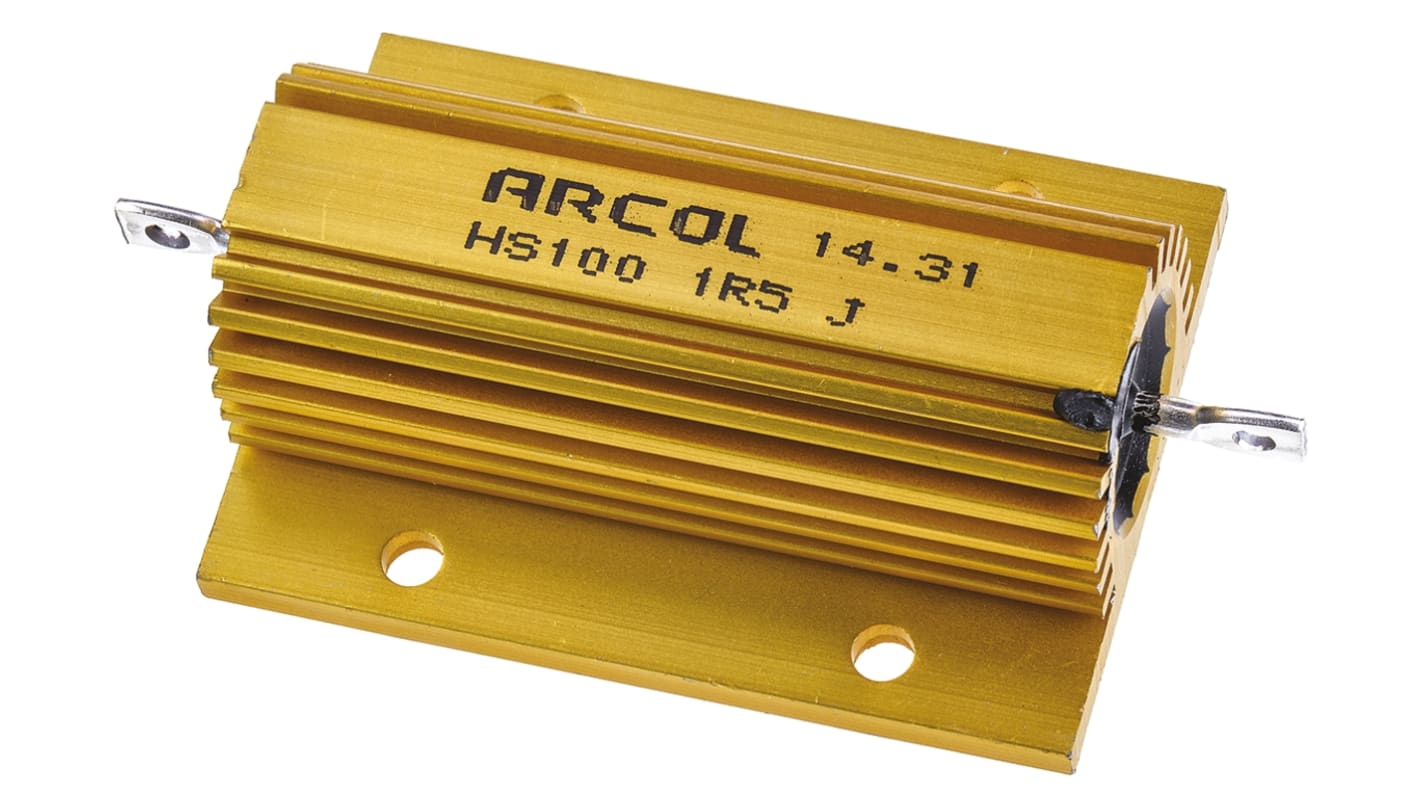

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP542.74
(exc. VAT)
PHP607.87
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 155 unit(s) ready to ship from another location
- Plus 105 unit(s) shipping from May 07, 2026
- Plus 45 unit(s) shipping from July 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP542.74 |
| 25 - 74 | PHP526.46 |
| 75 - 99 | PHP510.66 |
| 100 - 249 | PHP495.35 |
| 250 + | PHP480.49 |
*price indicative
- RS Stock No.:
- 252-2906
- Distrelec Article No.:
- 160-68-076
- Mfr. Part No.:
- HS100 1R5 J
- Manufacturer:
- Arcol
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 1.5Ω | |
| Power Rating | 100W | |
| Series | HS100 | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | ±100 ppm/°C | |
| Technology | Wirewound | |
| Automotive Standard | No | |
| Termination Style | Axial | |
| Overall Length | 88mm | |
| Maximum Operating Temperature | 200°C | |
| Overall Width | 47.5mm | |
| Standards/Approvals | IEC 115, MIL 18546, RoHS | |
| Overall Height | 24.1mm | |
| Select all | ||
|---|---|---|
Brand Arcol | ||
Product Type Chassis Mount Resistor | ||
Resistance 1.5Ω | ||
Power Rating 100W | ||
Series HS100 | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient ±100 ppm/°C | ||
Technology Wirewound | ||
Automotive Standard No | ||
Termination Style Axial | ||
Overall Length 88mm | ||
Maximum Operating Temperature 200°C | ||
Overall Width 47.5mm | ||
Standards/Approvals IEC 115, MIL 18546, RoHS | ||
Overall Height 24.1mm | ||
100W Aluminium housed wirewound power resistor, HS Series
Arcol HS100 Series wirewound power resistors are high powered aluminium housed resistors manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
The wirewound design of these resistors maximises the high Pulse characteristics the power dissipates linearly to zero, even at high ambient temperatures. Their Advanced design optimises stability, linearity and reliability making the HS Resistors suitable for many applications.
Features
Compact size for Power rating Winding construction maximises High Pulse Capability
Easy assembly.
Excellent load resistance
High power to volume
Applications
Braking resistor;Inrush limiter;Inverter/converter;Snubber;Balancing resistor
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
