RS PRO, 220 Ω 1 kW Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 185-2364
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP8,746.99
(exc. VAT)
PHP9,796.63
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP8,746.99 |
| 5 - 9 | PHP8,397.10 |
| 10 - 19 | PHP8,047.22 |
| 20 + | PHP7,872.28 |
*price indicative
Sponsored
- RS Stock No.:
- 185-2364
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 220Ω | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 1kW | |
| Series | R1000 | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | +200 ppm/°C | |
| Technology | Wirewound | |
| Automotive Standard | No | |
| Termination Style | Wire | |
| Overall Length | 400mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 250°C | |
| Overall Width | 60mm | |
| Standards/Approvals | UL, RoHS | |
| Overall Height | 30mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 220Ω | ||
Product Type Chassis Mount Resistor | ||
Power Rating 1kW | ||
Series R1000 | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient +200 ppm/°C | ||
Technology Wirewound | ||
Automotive Standard No | ||
Termination Style Wire | ||
Overall Length 400mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 250°C | ||
Overall Width 60mm | ||
Standards/Approvals UL, RoHS | ||
Overall Height 30mm | ||
- COO (Country of Origin):
- IN

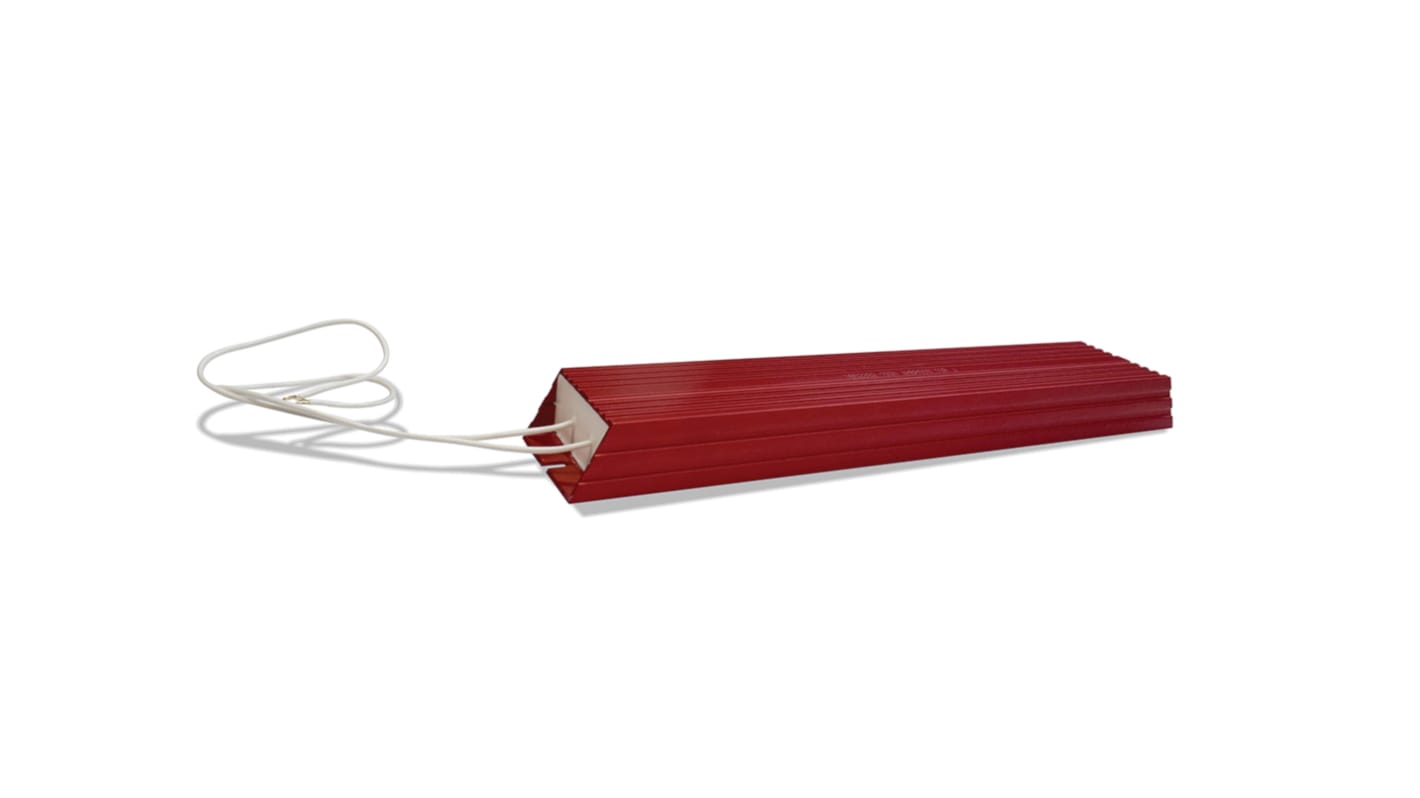

RS PRO Metal Clad Braking Resistor
The RS PRO R1000 series resistor has a resistance of 220ohm and 1kW power rating. It has an aluminium housing with ±5% tolerance. This metal encased braking resistor is designed for direct heat sink attachment.
Features and Benefits
• Heat sink mountable for increased power dissipation
• High power density
• Operating temperature coefficient ranges between -200ppm/°C and 200ppm/°C
• Operating temperature is between -25°C and 250°C
• Wire lead terminal
Certifications
• UL approved
• RoHS compliant
