RS PRO, 4.7 Ω 500 W Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 185-2342
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
PHP5,592.30
(exc. VAT)
PHP6,263.38
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 10 unit(s) shipping from September 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP5,592.30 |
| 5 - 9 | PHP5,474.86 |
| 10 - 19 | PHP5,310.61 |
| 20 + | PHP5,151.29 |
*price indicative
- RS Stock No.:
- 185-2342
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 4.7Ω | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 500W | |
| Series | R500 | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | +200 ppm/°C | |
| Technology | Wirewound | |
| Automotive Standard | No | |
| Termination Style | Wire | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 335mm | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | UL, RoHS | |
| Overall Width | 60mm | |
| Overall Height | 30mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 4.7Ω | ||
Product Type Chassis Mount Resistor | ||
Power Rating 500W | ||
Series R500 | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient +200 ppm/°C | ||
Technology Wirewound | ||
Automotive Standard No | ||
Termination Style Wire | ||
Minimum Operating Temperature -25°C | ||
Overall Length 335mm | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals UL, RoHS | ||
Overall Width 60mm | ||
Overall Height 30mm | ||

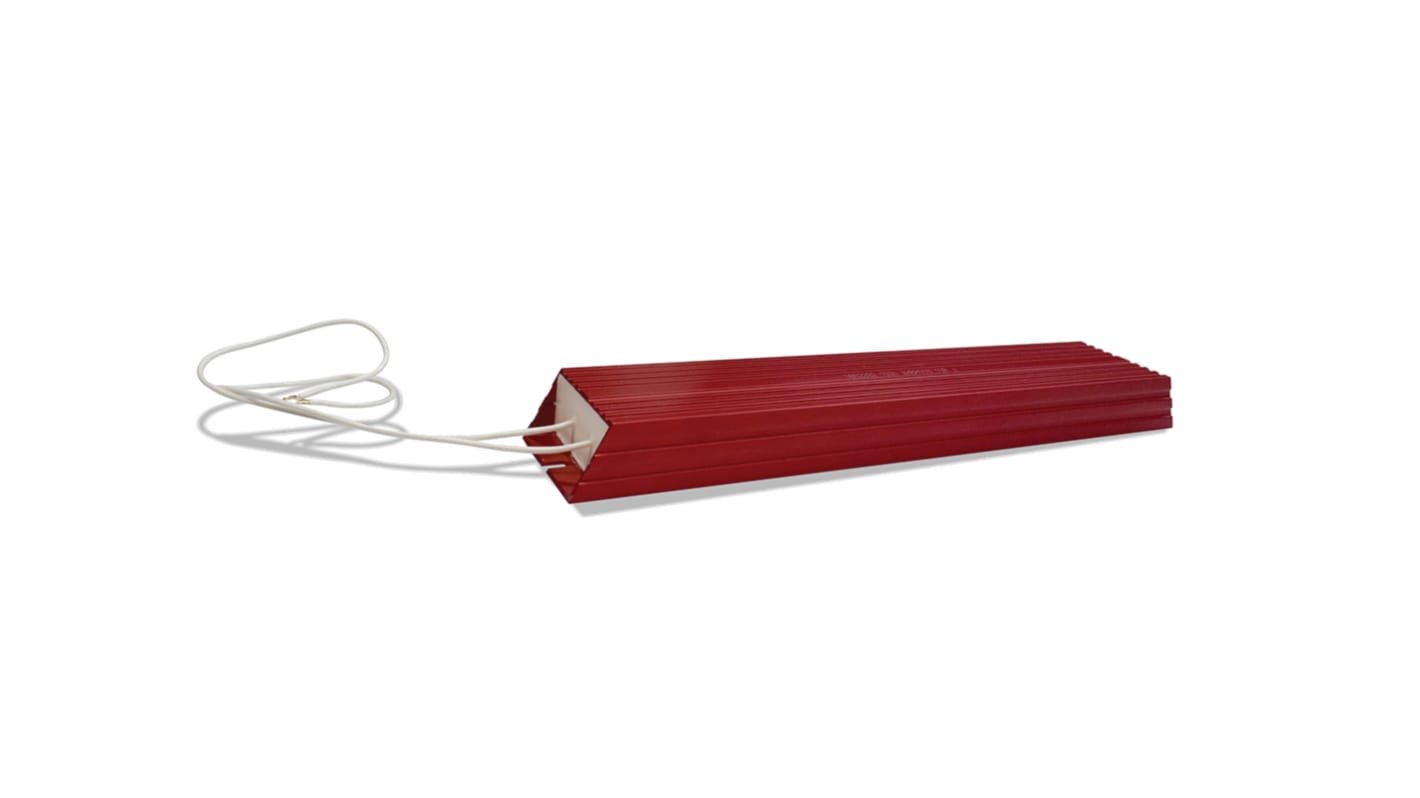

RS PRO Braking Resistor
The RS PRO R500 series aluminium housed metal-clad braking resistor has a resistance of 4.7ohm and power rating value of 500W. Its dimensions are 335mm x 60mm x 30mm (L x W x H). This high-quality wire lead resistor is designed for direct heat sink attachment.
Features and Benefits
• High power density
• Heat sink mountable for increased power dissipation
• Operating temperature ranging between -25°C and 250°C
• Temperature coefficient ranging between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm
Certifications
• UL approved (cables)
