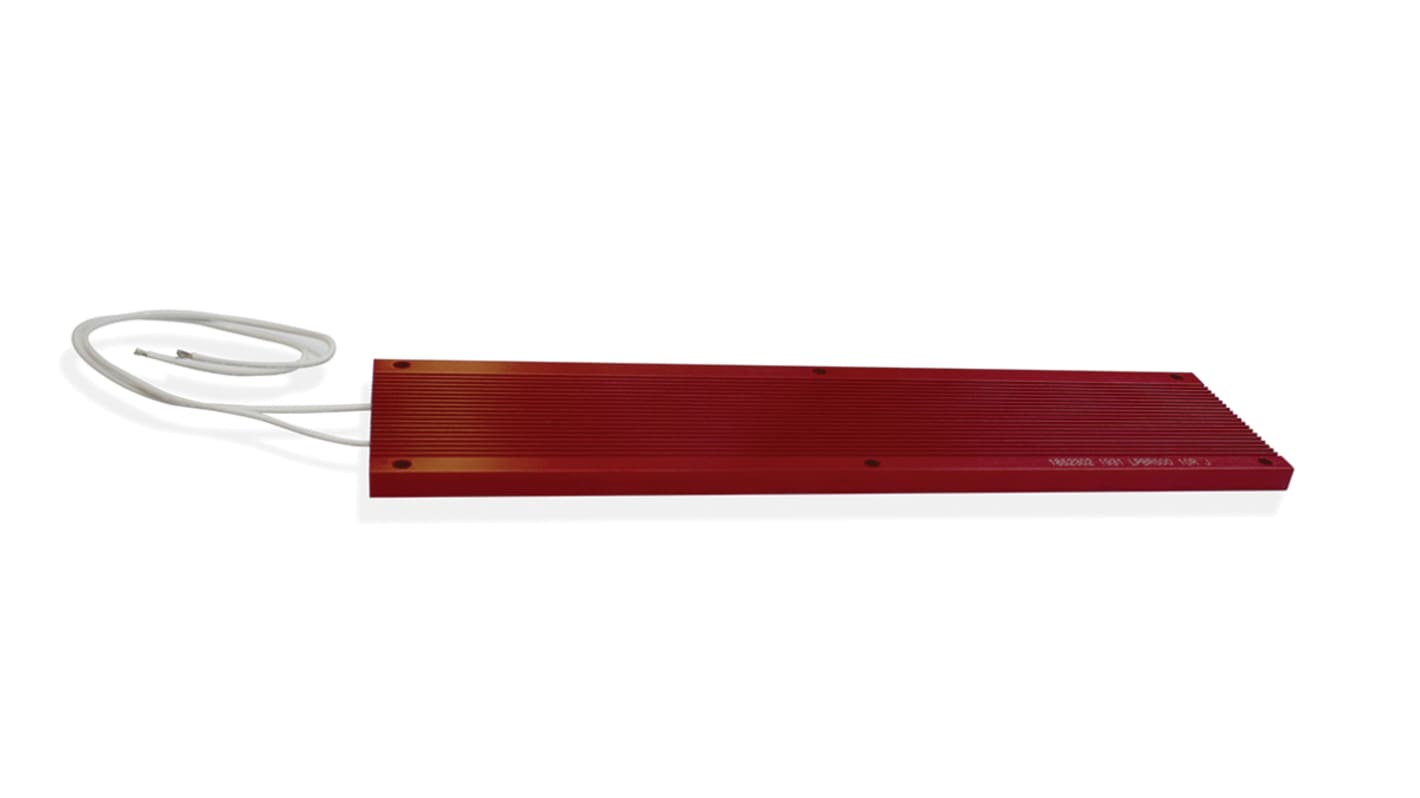

RS PRO, 10 Ω 250 W Aluminium Braking Resistor ±5 %
- RS Stock No.:
- 185-2287
- Manufacturer:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Sponsored
- RS Stock No.:
- 185-2287
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 10Ω | |
| Product Type | Braking Resistor | |
| Power Rating | 250W | |
| Series | RS PRO | |
| Package/Case | Aluminium | |
| Temperature Coefficient | +100 ppm/°C | |
| Tolerance | ±5 % | |
| Technology | Aluminium | |
| Automotive Standard | No | |
| Termination Style | UL approved Cable | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 180mm | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | UL, RoHS | |
| Overall Width | 80mm | |
| Overall Height | 10mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 10Ω | ||
Product Type Braking Resistor | ||
Power Rating 250W | ||
Series RS PRO | ||
Package/Case Aluminium | ||
Temperature Coefficient +100 ppm/°C | ||
Tolerance ±5 % | ||
Technology Aluminium | ||
Automotive Standard No | ||
Termination Style UL approved Cable | ||
Minimum Operating Temperature -25°C | ||
Overall Length 180mm | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals UL, RoHS | ||
Overall Width 80mm | ||
Overall Height 10mm | ||
- COO (Country of Origin):
- IN
This range of high Quality, Aluminium housed Power Resistors designed for direct heat sink attachment
High Power density
Low Profile
Heat Sink mountable for increased power dissipation
