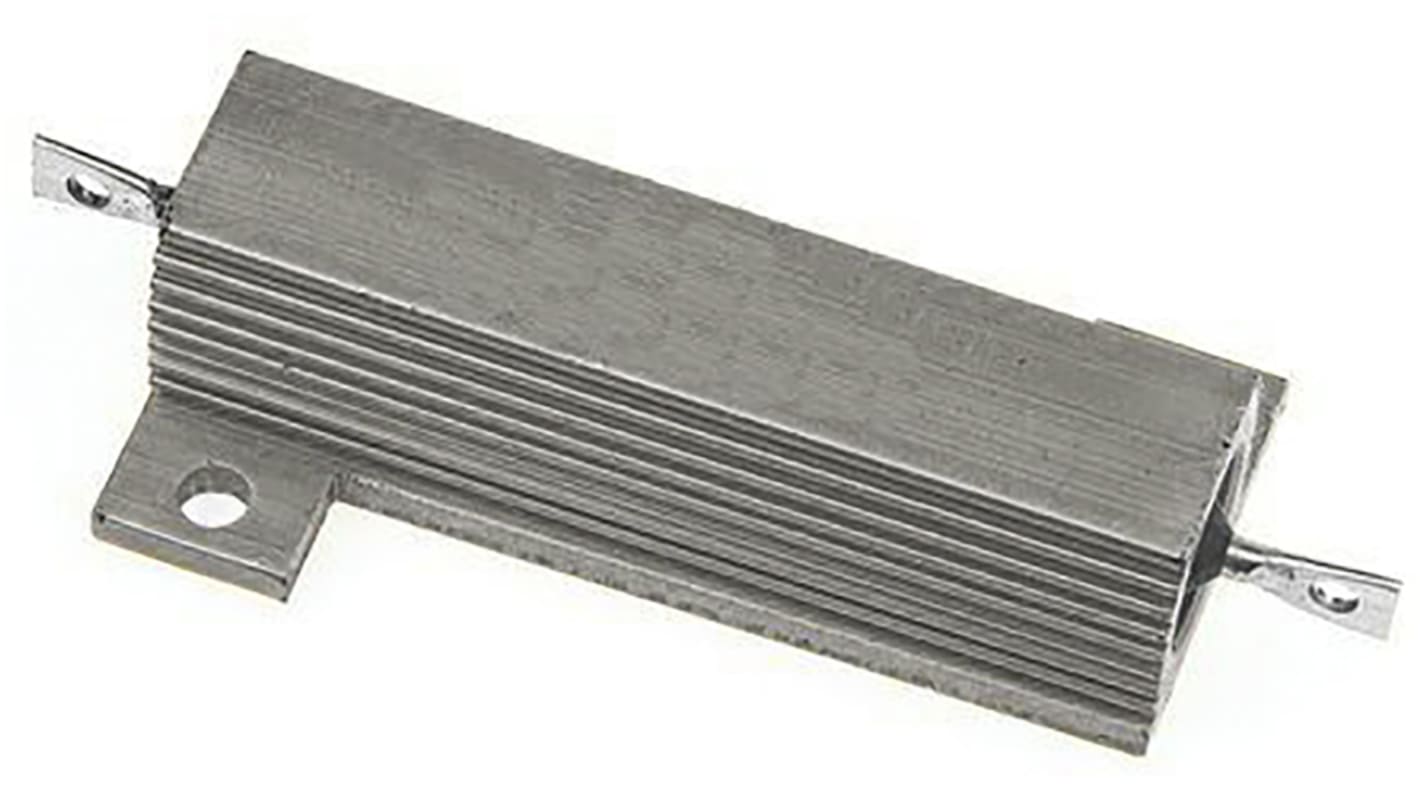

RS PRO, 33 kΩ 50 W Aluminium Chassis Mount Resistor ±5 %
- RS Stock No.:
- 175-4115
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP2,344.16
(exc. VAT)
PHP2,625.46
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | PHP468.832 | PHP2,344.16 |
| 50 - 120 | PHP450.082 | PHP2,250.41 |
| 125 - 245 | PHP431.33 | PHP2,156.65 |
| 250 + | PHP421.956 | PHP2,109.78 |
*price indicative
- RS Stock No.:
- 175-4115
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 33kΩ | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 50W | |
| Series | RS50 | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Automotive Standard | No | |
| Technology | Aluminium | |
| Overall Length | 49.1mm | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | MIL 18546, RoHS, IEC 115 | |
| Overall Width | 28mm | |
| Overall Height | 14.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 33kΩ | ||
Product Type Chassis Mount Resistor | ||
Power Rating 50W | ||
Series RS50 | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Automotive Standard No | ||
Technology Aluminium | ||
Overall Length 49.1mm | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals MIL 18546, RoHS, IEC 115 | ||
Overall Width 28mm | ||
Overall Height 14.8mm | ||
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
High Power to volume
Wound to maximise High Pulse Capability
Values from R005 to 100K
