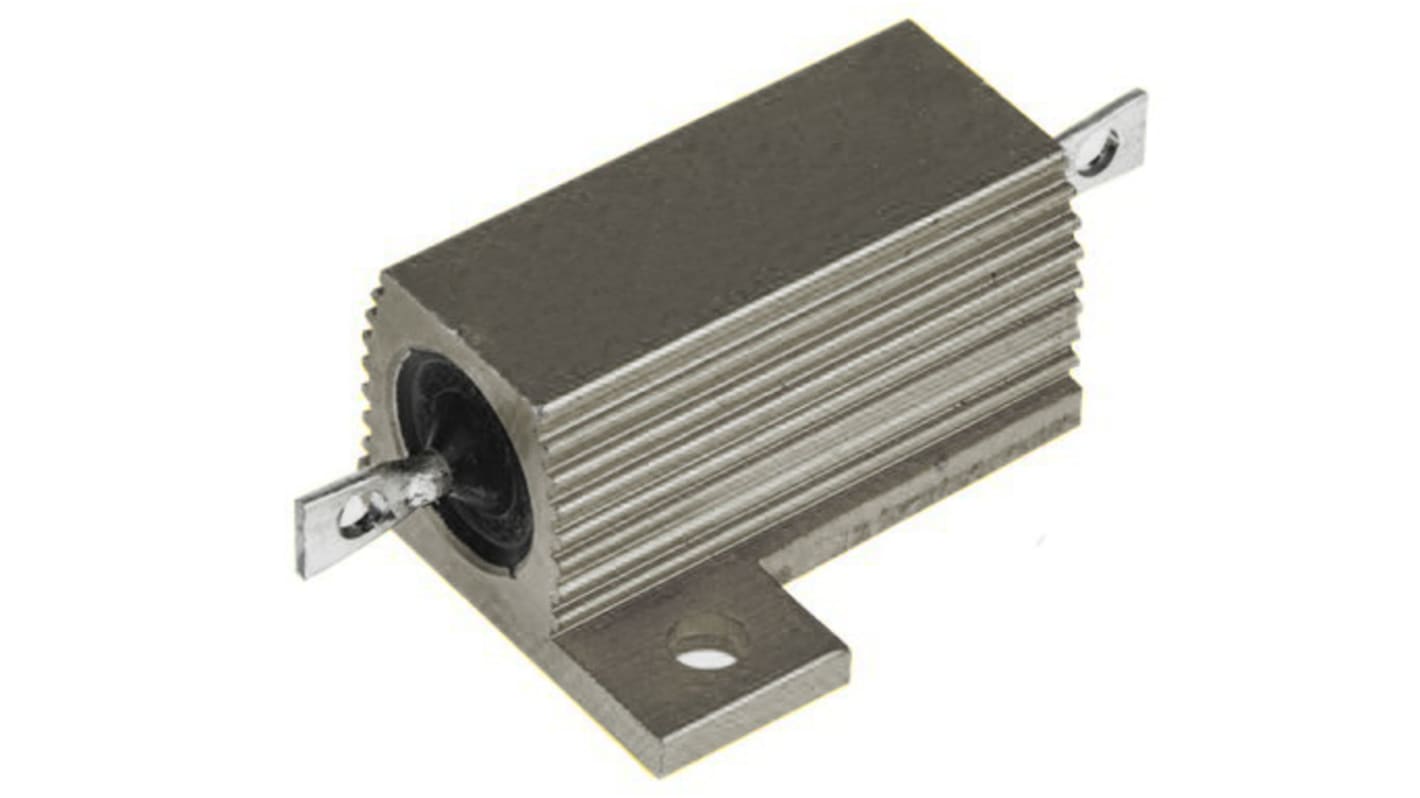

RS PRO, 20 Ω 25 W Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 131-1264
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP1,134.45
(exc. VAT)
PHP1,270.60
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 75 unit(s) ready to ship from another location
- Plus 225 unit(s) shipping from May 27, 2026
- Plus 225 unit(s) shipping from July 22, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 495 | PHP226.89 | PHP1,134.45 |
| 500 - 1245 | PHP221.218 | PHP1,106.09 |
| 1250 - 2495 | PHP215.686 | PHP1,078.43 |
| 2500 + | PHP210.292 | PHP1,051.46 |
*price indicative
- RS Stock No.:
- 131-1264
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 20Ω | |
| Power Rating | 25W | |
| Series | RS25 | |
| Packaging | Aluminium Housed | |
| Package/Case | Aluminium | |
| Temperature Coefficient | +100 ppm/°C | |
| Tolerance | ±5 % | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Termination Style | Axial | |
| Overall Length | 51mm | |
| Minimum Operating Temperature | 200°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | IEC 115, RoHS, MIL 18546 | |
| Overall Height | 14.6mm | |
| Overall Width | 28mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Chassis Mount Resistor | ||
Resistance 20Ω | ||
Power Rating 25W | ||
Series RS25 | ||
Packaging Aluminium Housed | ||
Package/Case Aluminium | ||
Temperature Coefficient +100 ppm/°C | ||
Tolerance ±5 % | ||
Automotive Standard No | ||
Technology Wirewound | ||
Termination Style Axial | ||
Overall Length 51mm | ||
Minimum Operating Temperature 200°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals IEC 115, RoHS, MIL 18546 | ||
Overall Height 14.6mm | ||
Overall Width 28mm | ||
RS Pro 25 W Aluminium Housed Wirewound Resistors
RS Pro 25 W Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Features
Compact size for Power rating;High Power to volume;Wound to maximise High Pulse Capability
Applications
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
