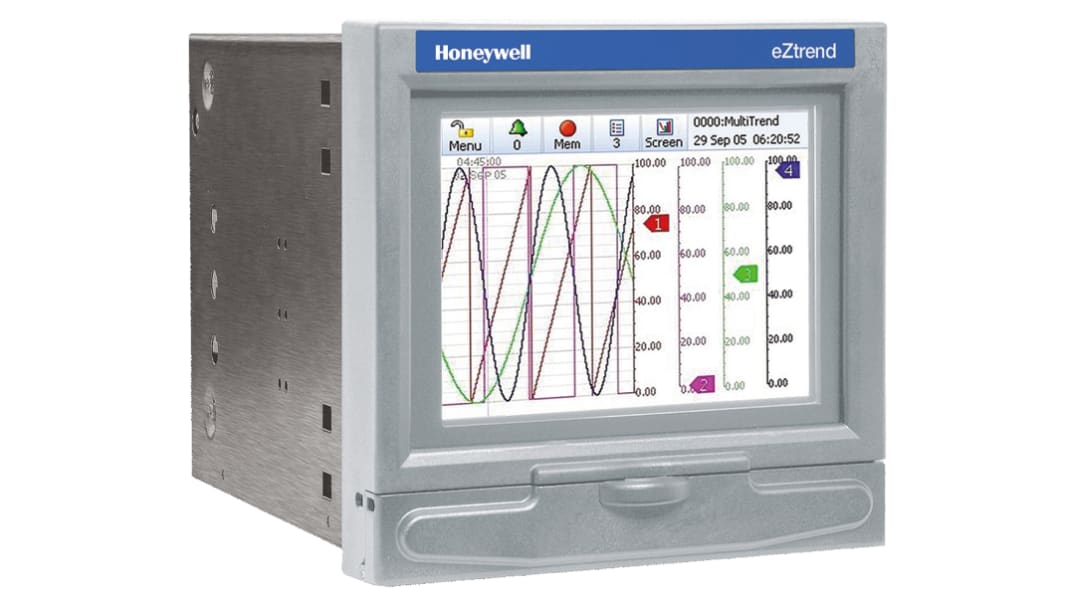

Honeywell 43-TV-03-18, 3 Input Channels, 4 Output Channels, Graphical Chart Recorder Measures Current, Resistance,

RS Stock No.:: 833-2790
Mfr. Part No.:: TVEZGR-31-010-11-0-000-000000-000
Manufacturer:: Honeywell

Honeywell 43-TV-03-18, 3 Input Channels, 4 Output Channels, Graphical Chart Recorder Measures Current, Resistance,

Subtotal (1 unit)**

PHP293,919.19

(exc. VAT)

PHP329,189.49

(inc. VAT)

Temporarily out of stock - back order for despatch 23/04/2025, delivery within 10 working days from desptach date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP7,000.00 (ex VAT)

Units	Per Unit
1 +	PHP293,919.19

**price indicative

RS Stock No.:: 833-2790
Mfr. Part No.:: TVEZGR-31-010-11-0-000-000000-000
Manufacturer:: Honeywell

Attribute	Value
Chart Type	Graphical
Number of Inputs	3
Parameter Measured	Current, Resistance, Temperature, Voltage
Maximum Temperature Measurement	+100 (G) °C, +100 (N) °C, +1000 (E) °C, +1000 (S) °C, +1200 (J) °C, +1220 (C) °C, +1300 (N) °C, +1372 (K) °C, +1390 (P) °C, +1410 (M) °C, +1515 (G) °C, +1768 (R) °C, +1768 (S) °C, +180 (100 hm Nickel) °C, +180 (C) °C, +180 (D) °C, +1816 (B) °C, +1840 (D) °C, +2315 (C) °C, +2315 (G) °C, +2490 (D) °C, +260 (120 hm Nickel) °C, +260 (R) °C, +260 (S) °C, +316 (G) °C, +370 (M) °C, +400 (T) °C, +538 (B) °C, +600 (Chromel/Copel) °C, +650 (R) °C, +830 (G) °C, +850 (PT100) °C, +850 (PT1000) °C, +850 (PT200) °C, +850 (PT500) °C, +900 (L) °C, 0 (J) °C, 0 (L) °C, -200 (E) °C, -210 (T) °C, -70 (E) °C, -70 (K) °C
Maximum Current Measurement	20mA
Number of Outputs	4
Maximum Resistance Measurement	0 ￫ 4000Ω
Maximum Operating Voltage	250V ac
Recorder Input Type	mV,V,mA,Thermocouple,RTD,O
Maximum Voltage Measurement	50V dc
Model Number p	43-TV-03-18
IP Rating	IP54
Best Temperature Measurement Accuracy	±0.3 (Type 120 ohm Nickel) %, ±0.5 (Type 100 ohm Nickel) %, ±0.6 (Type Chromel/Copel) %, ±0.6 (Type PT100) %, ±0.6 (Type PT1000) %, ±0.6 (Type PT200) %, ±0.6 (Type PT500) %, ±0.7 (Type E) %, ±0.7 (Type J) %, ±0.7 (Type L) %, ±0.8 (Type M) %, ±1 (Type K) %, ±1 (Type T) %, ±1.1 (Type M) %, ±1.1 (Type N) %, ±1.2 (Type L) %, ±1.4 (Type P) %, ±1.5 (Type R) %, ±1.5 (Type S) %, ±1.7 (Type E) %, ±1.7 (Type G) %, ±1.7 (Type J) %, ±1.8 (Type S) %, ±12 (Type E) %, ±2 (Type C) %, ±2 (Type R) %, ±2.2 (Type B) %, ±2.2 (Type D) %, ±2.5 (Type C) %, ±2.8 (Type G) %, ±20 (Type K) %, ±25 (Type G) %, ±3.2 (Type N) %, ±3.5 (Type D) %, ±3.5 (Type S) %, ±3.7 (Type C) %, ±4.5 (Type B) %, ±5 (Type R) %, ±5.4 (Type T) %, ±6.2 (Type G) %, ±6.5 (Type D) %
Minimum Operating Voltage	100V ac
Plug Type	IEC Power Plug, US Power Cord
Best Voltage Measurement Accuracy	±0.1 %, ±0.2 %
Best Resistance Measurement Accuracy	±0.1 %
Height	144mm
Best Current Measurement Accuracy	±0.2 %
Weight	2.4kg
Power Source	Mains
Width	144mm
Length	200mm

Honeywell 43-TV-03-18, 3 Input Channels, 4 Output Channels, Graphical Chart Recorder Measures Current, Resistance,

FREE delivery for over PHP7,000.00 (ex VAT)

eZrend GR
