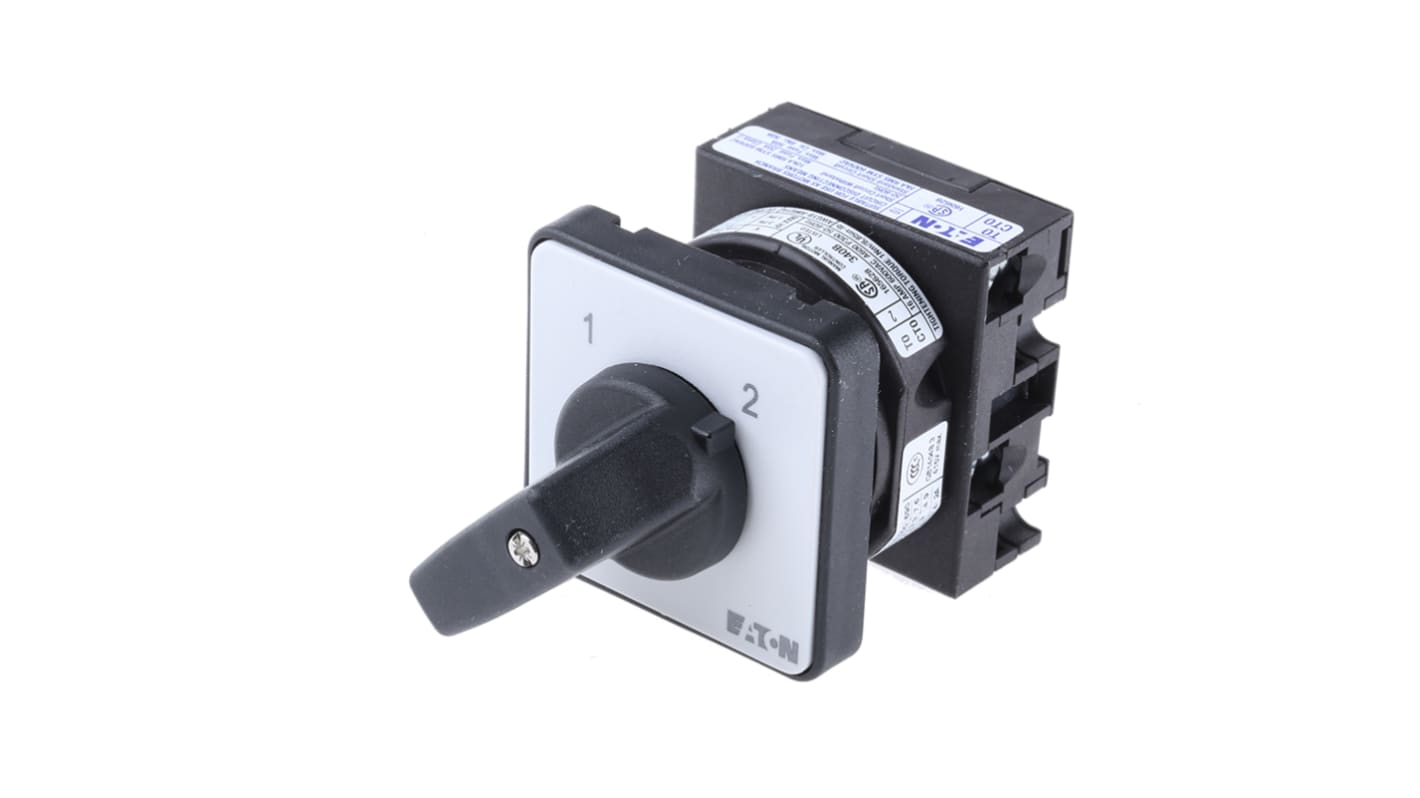

Eaton 2 Position 90 °, Knob Actuator 20 A
- RS Stock No.:
- 294-7771
- Mfr. Part No.:
- 78628225 T0-1-8220/E/EZ-P1(RS294-7771)
- Manufacturer:
- Eaton
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP2,561.98
(exc. VAT)
PHP2,869.42
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 16 unit(s) shipping from June 08, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP2,561.98 |
| 6 - 11 | PHP2,485.12 |
| 12 + | PHP2,410.55 |
*price indicative
- RS Stock No.:
- 294-7771
- Mfr. Part No.:
- 78628225 T0-1-8220/E/EZ-P1(RS294-7771)
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Electrical Phase | 1 | |
| Mount Type | Flush | |
| Number of Positions | 2 | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Knob | |
| Contact Voltage | 690V ac | |
| Hazardous Area Certification | IECEx | |
| Width | 48mm | |
| Standards/Approvals | CE marking, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 508, VDE 0660 | |
| Depth | 76mm | |
| Length | 48mm | |
| Mechanical Life | 10000000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Electrical Phase 1 | ||
Mount Type Flush | ||
Number of Positions 2 | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Knob | ||
Contact Voltage 690V ac | ||
Hazardous Area Certification IECEx | ||
Width 48mm | ||
Standards/Approvals CE marking, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 508, VDE 0660 | ||
Depth 76mm | ||
Length 48mm | ||
Mechanical Life 10000000Operations | ||
Eaton Cam Switch, 20A Maximum Current, 690V AC Maximum Voltage - 78628225 T0-1-8220/E/EZ-P1(RS294-7771)
This cam switch is a high-quality changeover switch designed for industrial applications. It features a robust design and is suitable for flush mounting, making it ideal for controlling electrical circuits securely. With a compact size of 90 x 75 x 48 mm, it integrates seamlessly into various setups, providing maximum versatility and ease of use.
Features & Benefits
• Changeover functionality enhances circuit control capabilities
• Maximum current rating of 20A supports heavy-duty usage
• Rated for voltages up to 690V AC ensuring broad compatibility
• User-friendly knob actuator simplifies operation
• IP65 rated front design protects against dust and moisture
Applications
• Utilised in control circuits for motors and machinery
• Ideal for switching between different electrical sources
• Effective in industrial automation systems for reliable control
• Suitable for use in harsh environments due to its protective features
• Can be used in electrical panels for efficient circuit management
What are the operational limits for temperature when using this switch?
The operational temperature range is from -25°C to +50°C when open and -25°C to +40°C when enclosed, making it suitable for a wide variety of environmental conditions.
How does the cam switch ensure safety from electrical hazards?
It features a finger and back-of-hand-proof design, effectively protecting against direct contact when operated, thus enhancing safety during use.
What type of terminal connection does it utilise?
It employs a screw connection type for the main current circuit, providing a secure and reliable method for wiring that caters to various installation requirements.
Note
Eaton formerly known as Moeller
