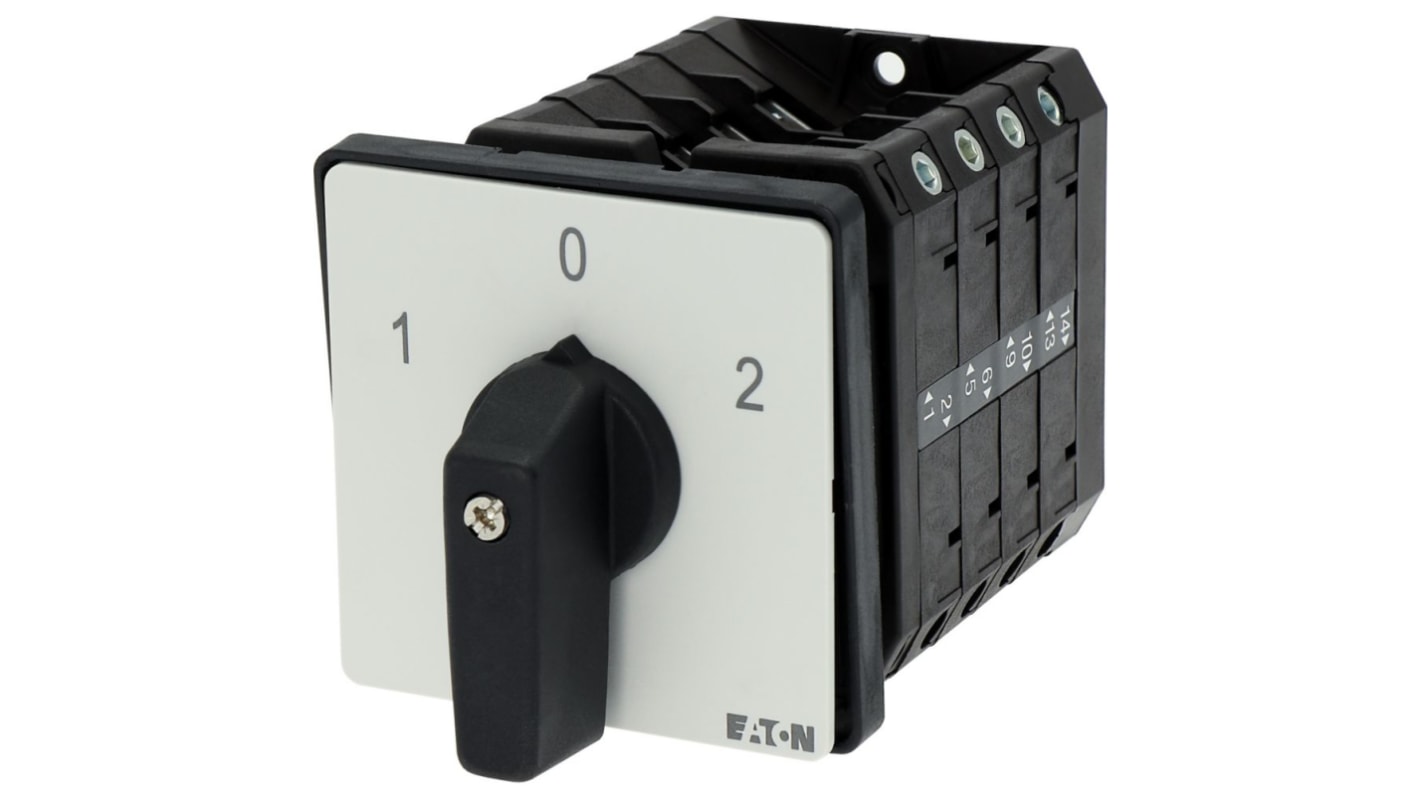

Eaton 3 Position 60 °, Short Thumb Grip Actuator 63 A
- RS Stock No.:
- 271-5996
- Mfr. Part No.:
- 092112 T5B-4-8213/E
- Manufacturer:
- Eaton
Subtotal (1 unit)*
PHP13,339.67
(exc. VAT)
PHP14,940.43
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP13,339.67 |
*price indicative
- RS Stock No.:
- 271-5996
- Mfr. Part No.:
- 092112 T5B-4-8213/E
- Manufacturer:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Moeller | |
| Mount Type | Flush | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Number of Poles | 4 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Contact Current | 63A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V | |
| Actuator Type | Short Thumb Grip | |
| Maximum Operating Temperature | 40°C | |
| Width | 88mm | |
| Standards/Approvals | CSA, EN/IEC 60204 | |
| Hazardous Area Certification | NO | |
| Length | 141mm | |
| Depth | 88mm | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Moeller | ||
Mount Type Flush | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Number of Poles 4 | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Contact Current 63A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V | ||
Actuator Type Short Thumb Grip | ||
Maximum Operating Temperature 40°C | ||
Width 88mm | ||
Standards/Approvals CSA, EN/IEC 60204 | ||
Hazardous Area Certification NO | ||
Length 141mm | ||
Depth 88mm | ||
Mechanical Life 500000Cycles | ||
Eaton Cam Switch, 4P Pole Configuration, 63A Maximum Current - 092112 T5B-4-8213/E
This cam switch is a versatile changeover device designed for electrical applications. With a compact design measuring 141 x 88 x 88 mm, it delivers reliable performance in various settings. The Eaton cam switch accommodates both single and three-phase electrical configurations, supporting a maximum current of 63A and a maximum voltage of 690V.
Features & Benefits
• Changeover design allows flexibility in switching circuits
• 4 poles ensure robust functionality for multiple connections
• Maintained actuator with a short thumb grip improves user control
• Screw terminal type simplifies installation and maintenance
• High durability with a mechanical lifespan of 500,000 operations
Applications
• Used in automation systems for seamless circuit transitions
• Suitable for motor disconnect in electrical panels
• Ideal for branch circuits requiring reliable switching
• Utilised in control and power distribution setups
• Designed for flush mounting in control cabinets
What is the significance of the IP65 rating for this device?
The IP65 rating indicates strong protection against dust ingress and water jets from any direction, making it suitable for harsh environments where moisture and debris are concerns.
How does the actuator design enhance user experience?
The short thumb grip actuator allows for easy and precise switching even in confined spaces, facilitating quick operational changes without sacrificing safety or control.
What are the implications of the 63A current rating?
This current rating ensures that the switch can handle significant loads, making it ideal for industrial applications where high electrical demand is common.
Can this device be used in both single-phase and three-phase systems?
Yes, this product is designed to operate efficiently in both single-phase and three-phase configurations, making it versatile for various electrical setups.
Note
Eaton formerly known as Moeller
