RS PRO 12 Position 30 °, Knob Actuator 16 A
- RS Stock No.:
- 265-7674
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP2,246.90
(exc. VAT)
PHP2,516.53
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 17 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from June 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP2,246.90 |
*price indicative
- RS Stock No.:
- 265-7674
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Cam Switch | |
| Series | T-000 | |
| Electrical Phase | 1 | |
| Mount Type | Door Mount | |
| Number of Positions | 12 | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 30 ° | |
| IP Rating | IP65 | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -5°C | |
| Actuator Type | Knob | |
| Contact Voltage | 500V ac | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | NO | |
| Width | 50mm | |
| Standards/Approvals | EN 60947-3 and UL 508 | |
| Depth | 85.5mm | |
| Length | 50mm | |
| Mechanical Life | 10000Cycles | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Cam Switch | ||
Series T-000 | ||
Electrical Phase 1 | ||
Mount Type Door Mount | ||
Number of Positions 12 | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 30 ° | ||
IP Rating IP65 | ||
Contact Current 16A | ||
Minimum Operating Temperature -5°C | ||
Actuator Type Knob | ||
Contact Voltage 500V ac | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification NO | ||
Width 50mm | ||
Standards/Approvals EN 60947-3 and UL 508 | ||
Depth 85.5mm | ||
Length 50mm | ||
Mechanical Life 10000Cycles | ||

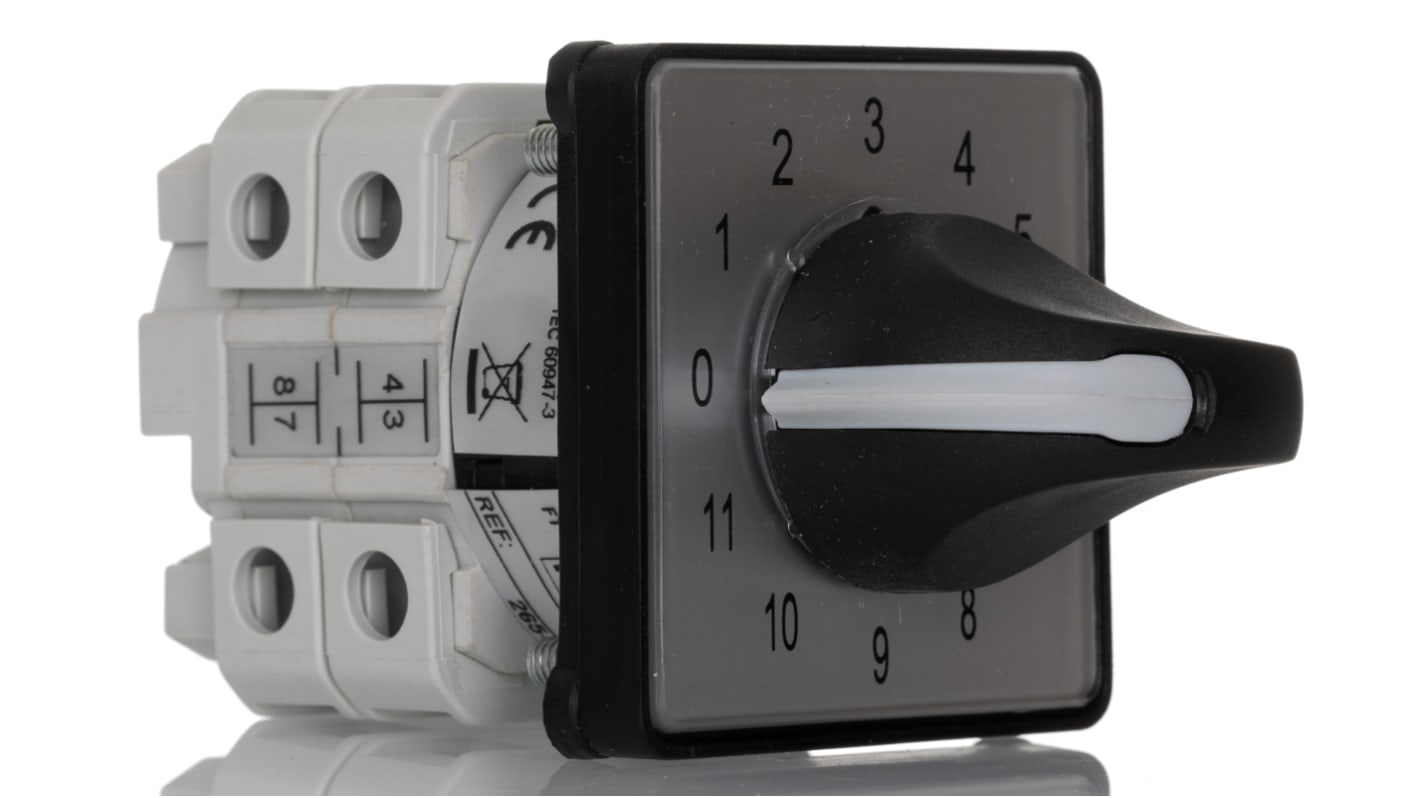

RS PRO Single Pole 12 Position Rotary Cam Step Switch (500V/ 16A)
A tough and reliable rotary cam switch with Single Pole configuration and 12 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 12 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 12 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 to 11 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
Rotary cam switch
Single Pole configuration
12 positions
Marked 0 to 11
IP65 rated
Contact rating of 16 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
