RS PRO 3 Position 60 °, Knob Actuator 16 A
- RS Stock No.:
- 265-7667
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP2,267.44
(exc. VAT)
PHP2,539.53
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP2,267.44 |
*price indicative
- RS Stock No.:
- 265-7667
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Cam Switch | |
| Series | T-000 | |
| Electrical Phase | 1 | |
| Mount Type | Door Mount | |
| Number of Positions | 3 | |
| Number of Poles | 2 | |
| Terminal Type | Screw | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Knob | |
| Contact Voltage | 500V ac | |
| Depth | 85.5mm | |
| Hazardous Area Certification | NO | |
| Length | 50mm | |
| Standards/Approvals | EN 60947-3 and UL 508 | |
| Width | 50mm | |
| Mechanical Life | 10000Cycles | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Cam Switch | ||
Series T-000 | ||
Electrical Phase 1 | ||
Mount Type Door Mount | ||
Number of Positions 3 | ||
Number of Poles 2 | ||
Terminal Type Screw | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Contact Current 16A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Knob | ||
Contact Voltage 500V ac | ||
Depth 85.5mm | ||
Hazardous Area Certification NO | ||
Length 50mm | ||
Standards/Approvals EN 60947-3 and UL 508 | ||
Width 50mm | ||
Mechanical Life 10000Cycles | ||

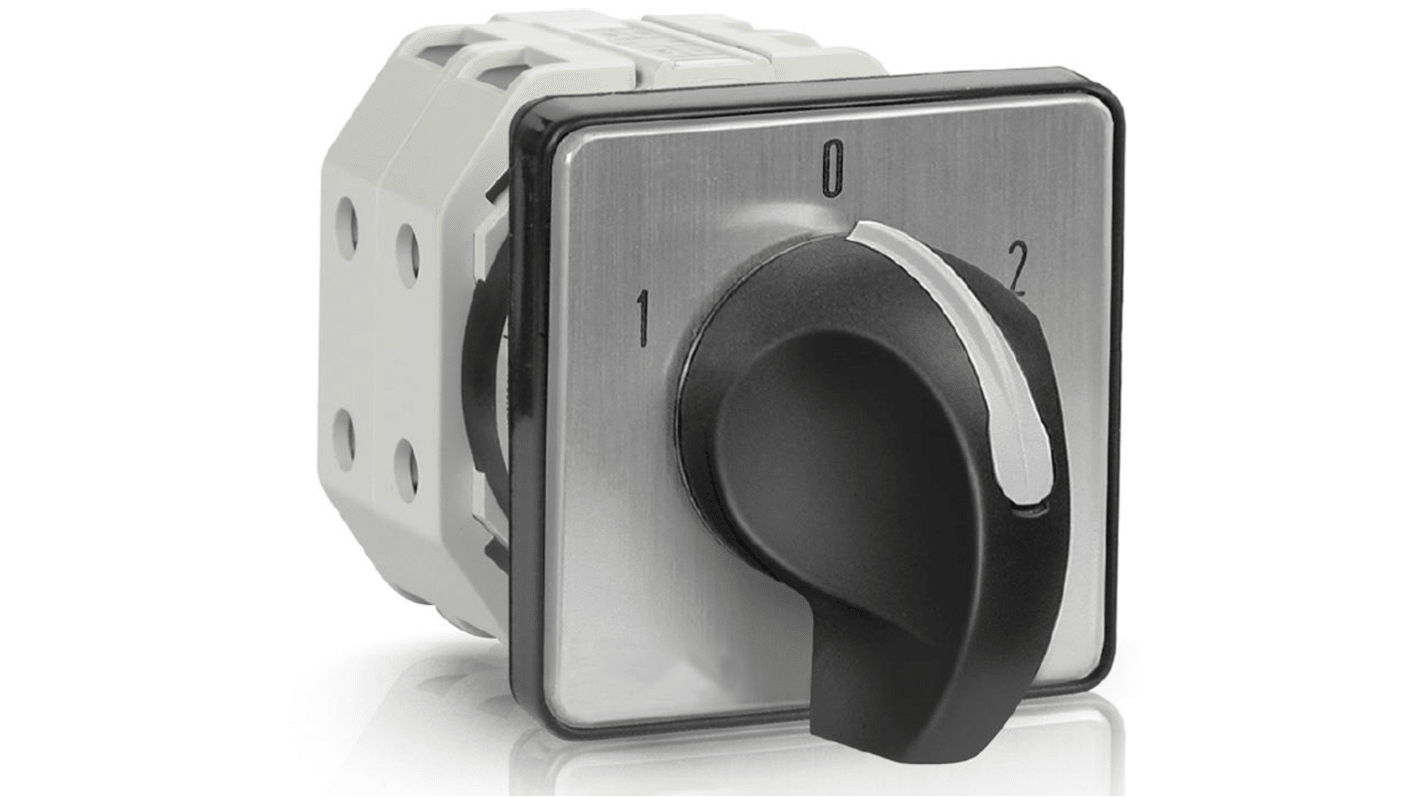

RS PRO Double Pole 3 Position 60° Change Over Rotary Cam Switch (500V/ 16A)
A tough and reliable 60° rotary cam switch with DPDT (Double Pole Double Throw) configuration and 3 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The DPDT cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 3 position cam switch features a plate size of 50mm x 50mm marked with symbols 0, 1 and 2 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
60° rotary cam switch
DPDT configuration
3 positions
Marked 1-0-2
IP65 rated
Contact rating of 16 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
