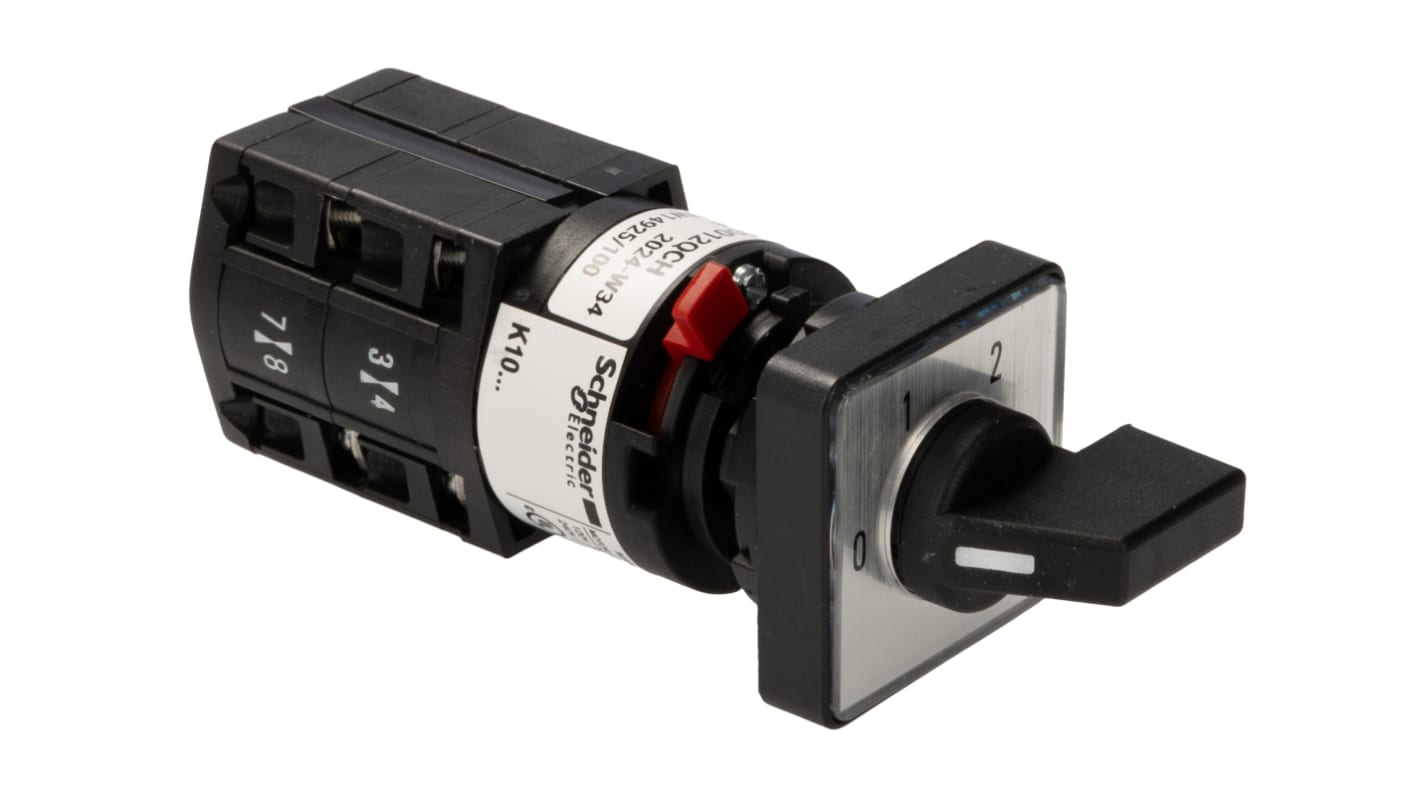

Schneider Electric 3 Position 60 °, Handle Actuator 10 A

RS Stock No.:: 218-046
Mfr. Part No.:: K10D012QCH
Manufacturer:: Schneider Electric

Schneider Electric 3 Position 60 °, Handle Actuator 10 A

Subtotal (1 unit)*

PHP3,762.84

(exc. VAT)

PHP4,214.38

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

Plus 21 unit(s) shipping from June 08, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP3,762.84

*price indicative

RS Stock No.:: 218-046
Mfr. Part No.:: K10D012QCH
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Series	K10
	Product Type	Rotary Switch Cam Switch
	Electrical Phase	1, 3
	Number of Positions	3
	Mount Type	Front
	Terminal Type	Screw Clamp
	Angle of Throw	60 °
	IP Rating	IP20, IP65
	Contact Current	10A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Actuator Type	Handle
	Contact Voltage	440V
	Hazardous Area Certification	No
	Length	30mm
	Standards/Approvals	EN/IEC 60947-3, UL 508, EN/IEC 60947-5-1, cULus
	Depth	88mm
	Width	30mm
	Mechanical Life	1000000Cycles

	Select all
	Brand Schneider Electric
	Series K10
	Product Type Rotary Switch Cam Switch
	Electrical Phase 1, 3
	Number of Positions 3
	Mount Type Front
	Terminal Type Screw Clamp
	Angle of Throw 60 °
	IP Rating IP20, IP65
	Contact Current 10A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Actuator Type Handle
	Contact Voltage 440V
	Hazardous Area Certification No
	Length 30mm
	Standards/Approvals EN/IEC 60947-3, UL 508, EN/IEC 60947-5-1, cULus
	Depth 88mm
	Width 30mm
	Mechanical Life 1000000Cycles

RoHS Status: Exempt

COO (Country of Origin):: AT

Schneider Electric Harmony K Series Rotary SwitchCam Switch, 10 A Maximum Current, Screw Terminal - K10D012QCH

This cam switch is suitable for diverse electrical applications, particularly in automation and control circuits. Its multi-position functionality offers precise control, making it a practical choice for improving operational efficiency across various settings. Built with durable materials, it meets the demands of professionals in the electrical and mechanical fields.

Features & Benefits

• 10A current handling capacity for dependable performance

• Three distinct positions to enhance control options

• Front mounting design with standard hole sizes for straightforward installation

• Screw terminals for simplified wiring processes

• IP65 rated operating head for protection against dust and moisture

• Slow-break contact operation to enhance safety and reduce arcing

Applications

• Used in machinery control mechanisms for improved operational precision

• Commonly employed in electrical panels requiring multi-position control

• Fit for automation systems integrating multiple electrical components

• Ideal in environments needing compact and durable switching devices

How is the cam switch mounted in electrical panels?

It can be front mounted using either a 16mm or 22mm hole, which ensures easy installation.

What is the maximum operational current this switch can handle?

It is rated for up to 10A, making it appropriate for various applications.

Can it be used in outdoor environments?

While the operating head is IP65 rated for moisture protection, ensure proper installation to shield against environmental factors.

What type of terminals does it have for wiring connections?

It features captive screw clamp terminals, providing secure and dependable connections.

How does the design improve operational safety?

The slow-break contact operation helps prevent arcing, minimising the risk of electrical hazards during switching.
