Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Product Type	Circular Connector Contact
	Colour	Silver
	Material	Copper
	Sleeve Length	305m
	Braided	Yes
	Expandable	No
	Standards/Approvals	SJ/T 11364-2014, GB/T 26572-2011, Directive 2011/65/EU, Directive 2015/863/EU
	Series	FIT Wire Management

	Select all
	Brand Alpha Wire
	Product Type Circular Connector Contact
	Colour Silver
	Material Copper
	Sleeve Length 305m
	Braided Yes
	Expandable No
	Standards/Approvals SJ/T 11364-2014, GB/T 26572-2011, Directive 2011/65/EU, Directive 2015/863/EU
	Series FIT Wire Management

Datasheet - 1231 SV001

RoHS Status: Exempt

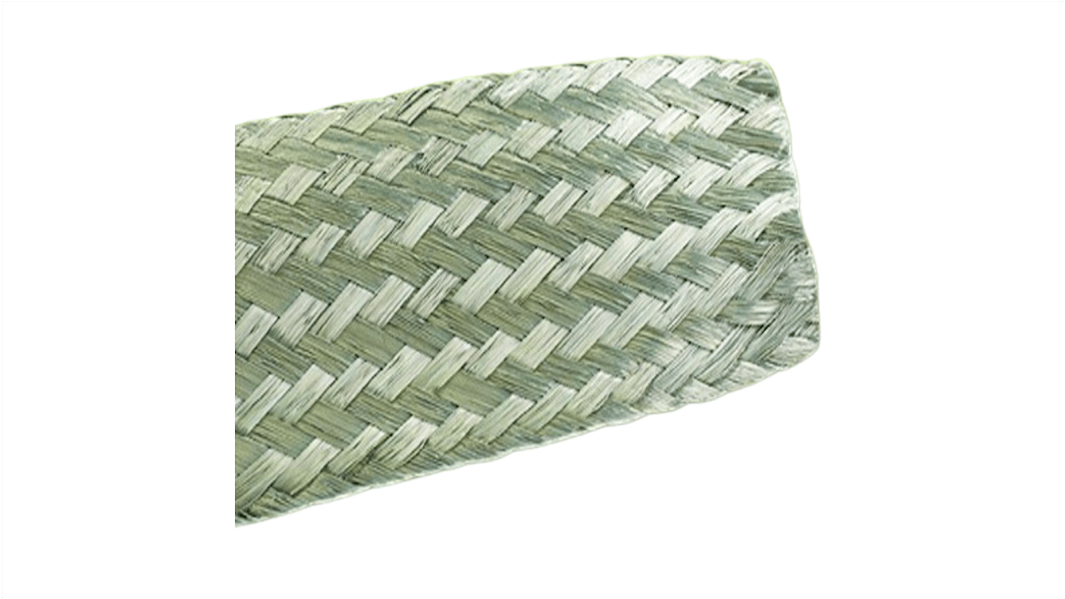

Belden FIT Wire Management Series Braided Copper Wire, 305m Sleeve Length, Silver - 1231 SV001

This braided copper wire is a silver, tinned-braid sleeve intended for cable management and EMI control in industrial and electrical systems. It is supplied as a continuous sleeve in long-length put-ups and is non-expandable, offering a consistent profile for routing and protection of conductors in automation, electronics and mechanical assemblies.

Features & Benefits

• Tinned copper conductors deliver high conductivity and corrosion resistance
• 168 total ends provide flexible yet stable braided structure
• Approx equivalent AWG14 supports up to 32A continuous current
• Nominal DC resistance 3.49Ω/1000ft limits voltage drop over runs
• 24 carriers with AWG36 ends enhance braiding uniformity and handling
• Compliance with RoHS and China RoHS standards reduces regulatory risk

Applications

• Suitable for organising harnesses in factory automation panels
• Ideal for EMI shielding in control cabinets and drive systems
• Used with cable trays where silver braided copper wire is required
• Can be used for retrofitting EMC protection on existing harnesses
• Used for protected routing in electrical assembly and maintenance

What conductor material and stranding type does it use?

The braid is formed from tinned copper conductors with a solid stranding configuration to balance conductivity and mechanical stability.

How is the product typically packaged for installation?

It is offered in continuous lengths on reels and in specified put-ups including 100ft, 500ft and 1000ft options with minimum piece lengths for cut orders.

Which standards and directives are relevant to its manufacture?

It meets directives and standards for restricted substances including RoHS (2011/65/EU and 2015/863/EU) and China marking standards SJ/T11364-2014 and GB/T26572-2011.

What electrical performance can installers expect in typical runs?

Expect approximate ampacity of 32A and a nominal DC resistance of 3.49Ω per 1000ft for planning voltage-drop and thermal considerations.

Alpha Wire Braided Copper Silver Circular Connector Contact, 305m Length, FIT Wire Management Series
