Lapp SKINTOP Series 100 Cable Gland
- RS Stock No.:
- 444-3029
- Distrelec Article No.:
- 304-42-467
- Mfr. Part No.:
- 53111200
- Manufacturer:
- Lapp
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP382.26
(exc. VAT)
PHP428.13
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 4,770 unit(s) ready to ship from another location
- Plus 2,700 unit(s) shipping from May 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 120 | PHP76.452 | PHP382.26 |
| 125 - 245 | PHP74.156 | PHP370.78 |
| 250 + | PHP71.934 | PHP359.67 |
*price indicative
- RS Stock No.:
- 444-3029
- Distrelec Article No.:
- 304-42-467
- Mfr. Part No.:
- 53111200
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Cable Gland | |
| Number of Pieces | 100 | |
| Series | SKINTOP | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Thread Size | M12 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Cable Gland | ||
Number of Pieces 100 | ||
Series SKINTOP | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Thread Size M12 | ||

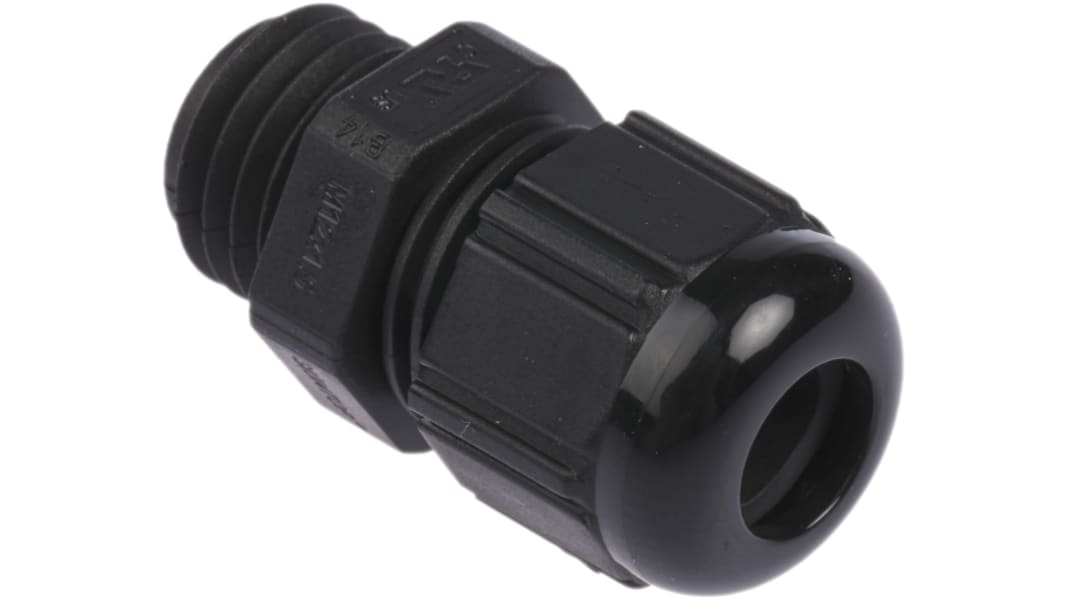

LAPP Cable Gland, M12 Thread, 3.5 to 7mm Cable Diameter - SKINTOP Series - 53111200
Looking for a way to seal the end of a cable when attaching it to an enclosure? Use this cable gland from LAPP. It has a simple screw-on design so you'll find it easy to plug in without the need for complex tooling. The polyamide body is resistant to wear and oil, so you can use it in demanding environments like factories. As this cable gland is vibration-proof, you can be sure of a secure connection, even with heavy-duty machinery.
Features & Benefits
• Wide operating temperature range between -20°C and +100°C for use in demanding environments
• Ingress protection ratings of IP66, IP68 and IP69K mean it's protected against damage caused by dust, steam and water immersion
• Compatible with cable diameters between 3.5 to 7mm for versatility
• Built-in strain relief prevents cables being damaged by bending
Applications
• Manufacturing industry
• Photovoltaic devices
• Control panels
• Automotive industry
How do I attach a cable to this cable gland?
To attach a cable to this gland, remove the nut and strip the outer sheath of the cable to match the length of the gland. Insert the cable into the gland while spreading the peeled sheath around it. Re-attach the nut and tighten it using a compatible spanner.
