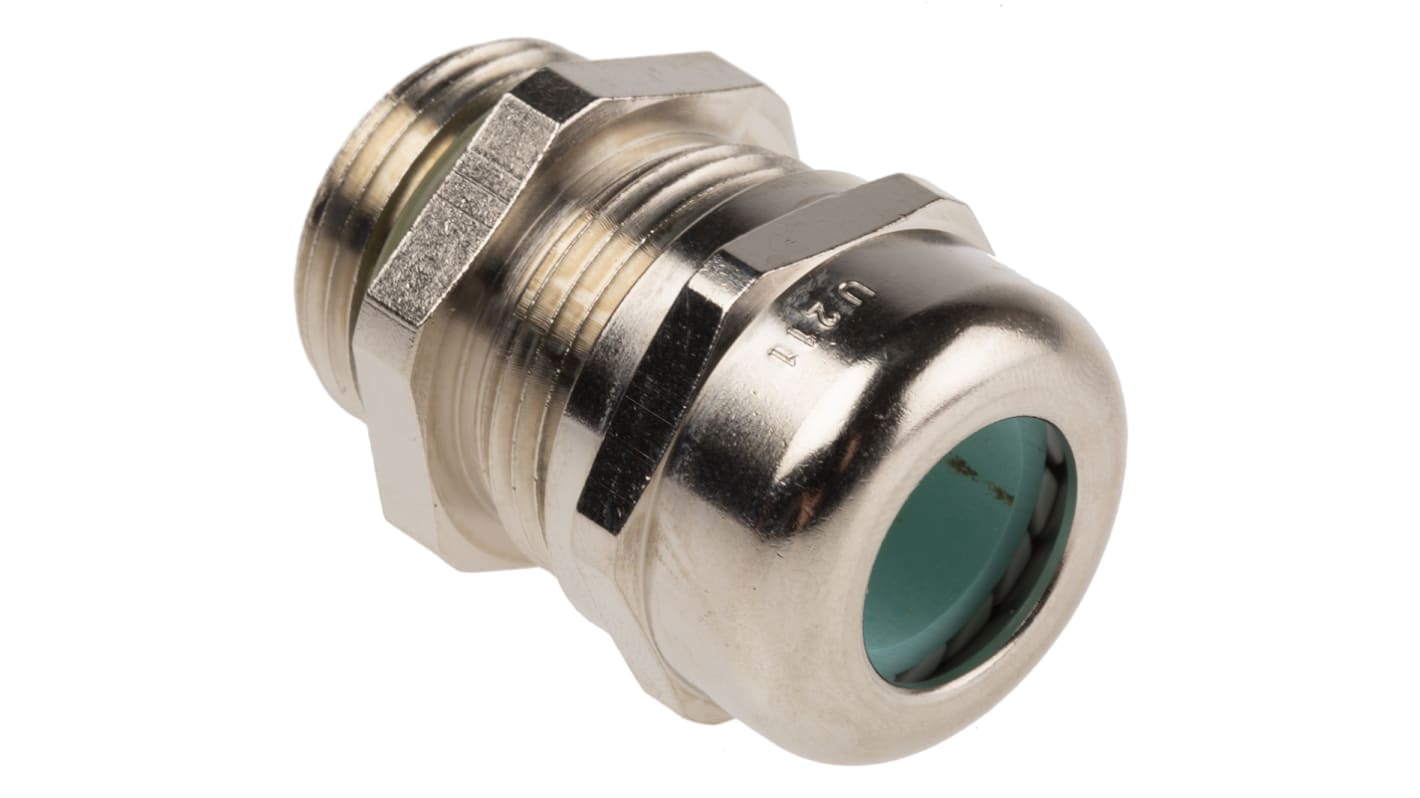

Lapp SKINTOP Series Nickel Plated Brass Cable Gland, M20 Thread, 7mm min., 13mm max., IP68
- RS Stock No.:
- 136-8512
- Mfr. Part No.:
- 53112572
- Manufacturer:
- Lapp
Bulk discount available
Subtotal (1 pack of 5 units)**
Was PHP1,788.01
You pay
PHP1,991.88
(exc. VAT)
PHP2,230.90
(inc. VAT)
110 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP7,000.00 (ex VAT)
Units | Per Unit | Per Pack** |
---|---|---|
5 - 70 | PHP398.376 | PHP1,991.88 |
75 - 370 | PHP390.408 | PHP1,952.04 |
375 + | PHP321.308 | PHP1,606.54 |
**price indicative
- RS Stock No.:
- 136-8512
- Mfr. Part No.:
- 53112572
- Manufacturer:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Manufacturer | Lapp | |
Thread Size | M20 | |
Maximum Cable Diameter | 13mm | |
Minimum Cable Diameter | 7mm | |
Material | Nickel Plated Brass | |
Series | SKINTOP | |
IP Rating | IP68 | |
Locknut Included | No | |
Hazardous Area Certification | HL 3 | |
Fire Behaviour | Flame Retardant, Halogen Free | |
Maximum Operating Temperature | (Dynamic) +100 °C, (Static) +100°C | |
Minimum Operating Temperature | (Dynamic) -25 °C, (Static) -40°C | |
Standards Met | CE Certified, DIN EN 13501-2: Classification E30, DIN EN 1363-1: 2012-10, DIN EN 45545-2, DIN EN 45545-3: 2013-08, DIN EN 60423, DIN IEC 62444, UL 94V-0 | |
Reference | SKINTOP MS-HF-M | |
Select all | ||
---|---|---|
Manufacturer Lapp | ||
Thread Size M20 | ||
Maximum Cable Diameter 13mm | ||
Minimum Cable Diameter 7mm | ||
Material Nickel Plated Brass | ||
Series SKINTOP | ||
IP Rating IP68 | ||
Locknut Included No | ||
Hazardous Area Certification HL 3 | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Maximum Operating Temperature (Dynamic) +100 °C, (Static) +100°C | ||
Minimum Operating Temperature (Dynamic) -25 °C, (Static) -40°C | ||
Standards Met CE Certified, DIN EN 13501-2: Classification E30, DIN EN 1363-1: 2012-10, DIN EN 45545-2, DIN EN 45545-3: 2013-08, DIN EN 60423, DIN IEC 62444, UL 94V-0 | ||
Reference SKINTOP MS-HF-M | ||
