BK Precision Digital Bench Power Supply, 1 → 40V, 1 → 5A, 1-Output, 200W
- RS Stock No.:
- 197-8462
- Mfr. Part No.:
- BK1697B
- Manufacturer:
- BK Precision
Temporarily out of stock - back order for despatch 16/07/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP35,268.52
(exc. VAT)
PHP39,500.74
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP35,268.52 |
- RS Stock No.:
- 197-8462
- Mfr. Part No.:
- BK1697B
- Manufacturer:
- BK Precision
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

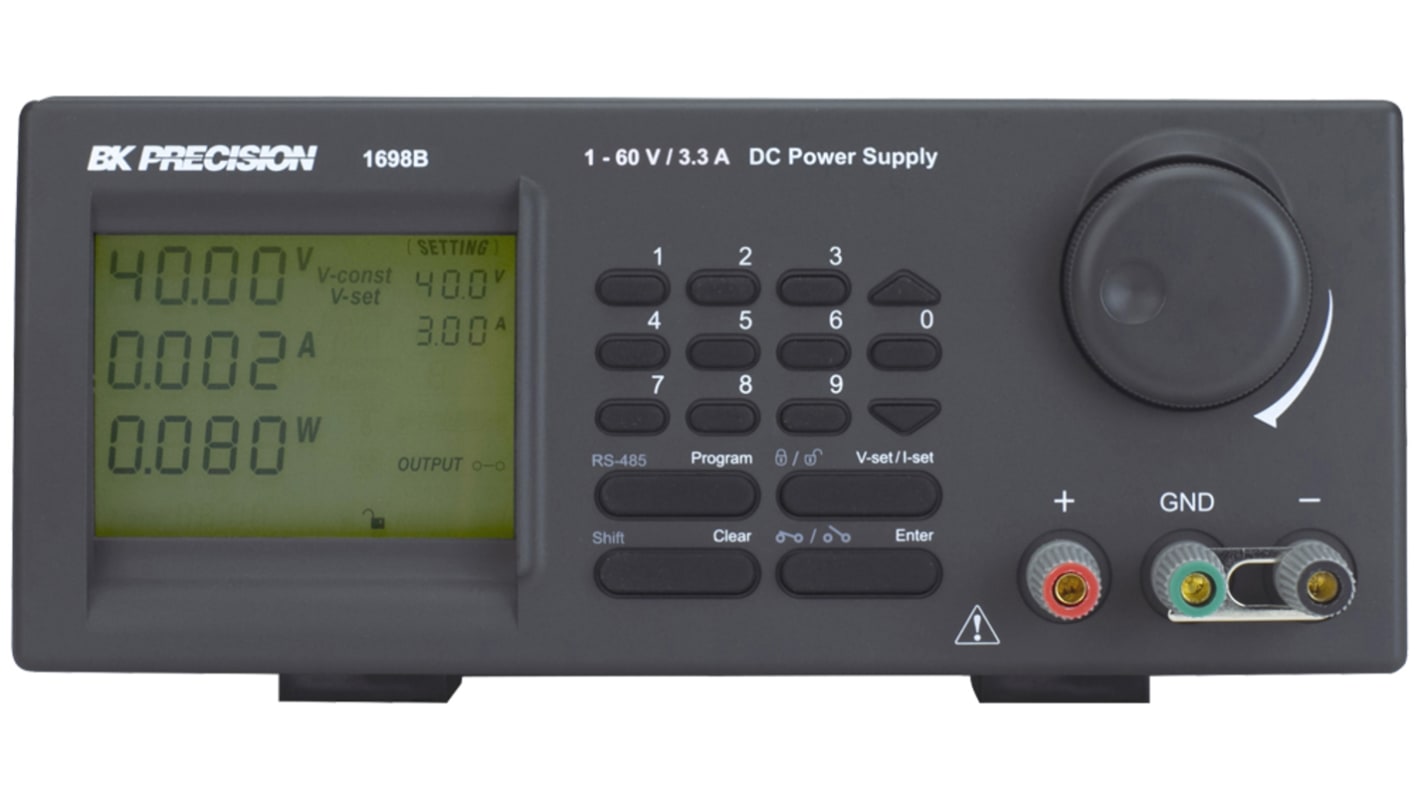

The BK1696B, BK1697B, and BK1698B programmable DC power supplies deliver exceptional cost/watt value with several programming and protection features. This series improves upon previous models with increased display accuracy, simplified programming, and a USB interface with added support for basic SCPI commands. PC software is provided for timed list mode programming and data logging.
Well suited for R&D, service, production testing, and education environments all models are equipped with overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP).
Features:
Automatic CV/CC crossover operation
Store up to 10 voltage and current combinations for quick output
Lightweight and compact
Built-in voltage, current, and power meter
List mode (timed programming): program up to 20 steps
USB and RS485 interfaces
Control up to 31 power supplies from one PC through RS485, any combination of models
Protection features: Over voltage (OVP), Over current (OCP), Over Temperature (OTP), and key-lock function
Thermostatically-controlled fan (linear-speed control to minimize fan noise)
PC software included for remote control, test sequence generation, and data logging
Specifications
Attribute | Value |
|---|---|
| Model Number | BK1697B |
| Number of Outputs | 1 |
| Output Voltage | 1 → 40V |
| Output Current | 1 → 5A |
| Power Rating | 200W |
| Bench Power Supply Type | Programmable DC Power Supply |
| Type | Digital |
| Digital/Analogue | Digital |
