SKF 6200-2RSH/C3 1 Row Ball Bearing - 10 mm ID, 30 mm OD
- RS Stock No.:
- 667-1178
- Mfr. Part No.:
- 6200-2RSH/C3
- Manufacturer:
- SKF
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP532.40
(exc. VAT)
PHP596.29
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 255 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | PHP532.40 |
| 6 - 24 | PHP516.44 |
| 25 + | PHP500.95 |
*price indicative
- RS Stock No.:
- 667-1178
- Mfr. Part No.:
- 6200-2RSH/C3
- Manufacturer:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 10mm | |
| Outside Diameter | 30mm | |
| Race Width | 9mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 2.36kN | |
| Dynamic Load Rating | 5.4kN | |
| Series | 6200 | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 17000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 10mm | ||
Outside Diameter 30mm | ||
Race Width 9mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 2.36kN | ||
Dynamic Load Rating 5.4kN | ||
Series 6200 | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 17000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

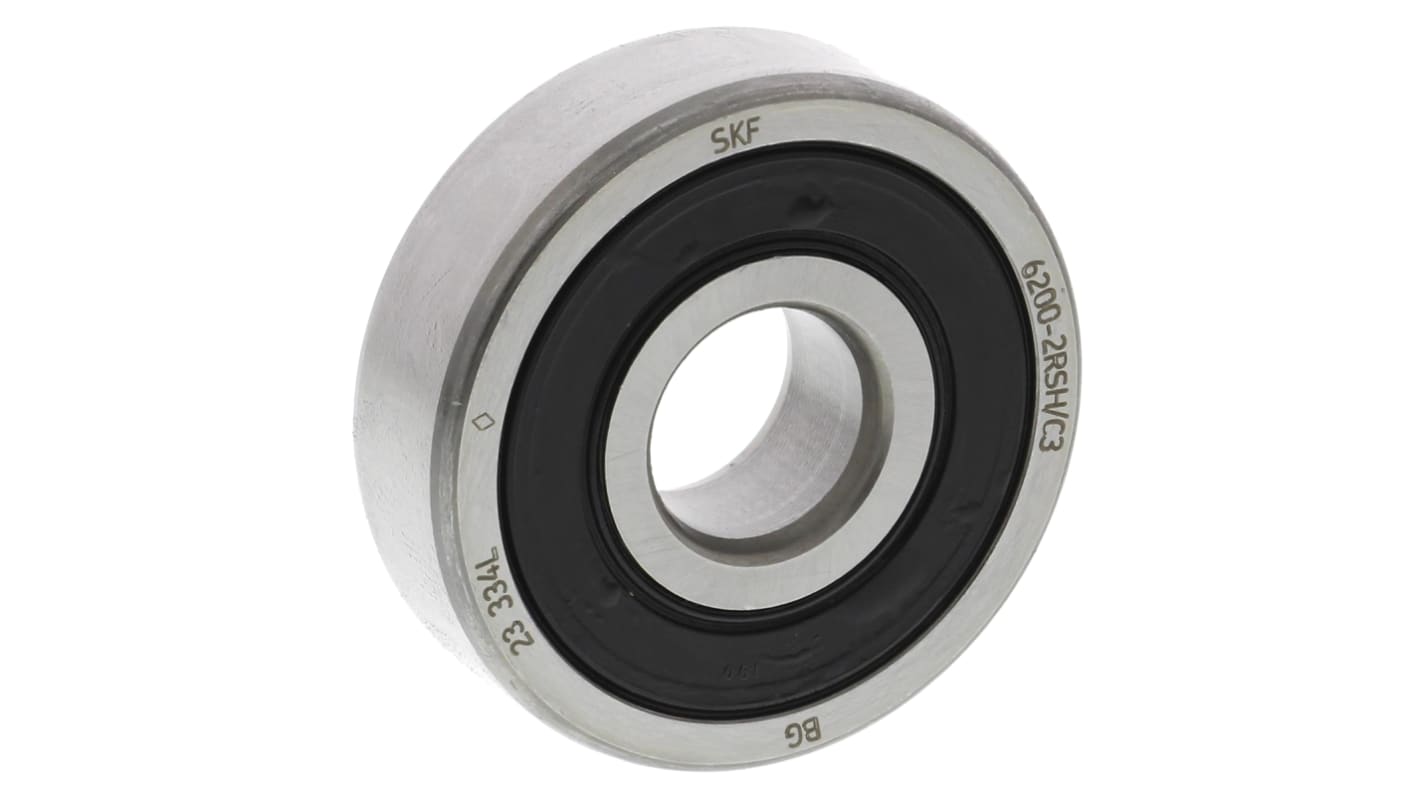

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed, 10mm ID, 30mm OD - 6200-2RSH/C3
For efficient movement around smaller shafts, use this deep-groove single-row ball bearing from SKF. As it's fitted with a sheet-metal cage, the balls are spaced at equal intervals inside the plain 9mm raceway, so this unit works efficiently at turning speeds of up to 17,000rpm. Both sides are sealed to ensure the grease stays inside the bearing to support a long lifespan. Thanks to wide operating temperature range of -40°C to +120°C, this steel cylindrical-bore ball bearing can be used in demanding industrial environments.
• Versatile deep-groove bearing type supports axial and radial loads
• Inside diameter of 10mm for use on smaller shafts
• Precision engineered cage to suppress noise levels and vibrations
• Steel material to ensure strength and durability
• Contact seal on both sides, so no need for relubrication
Applications
• Hot rolling mills
• Wire production
• Baking ovens
• Metal industry
What are the load ratings of this ball bearing?
This heavy-duty unit has a dynamic load rating of 5.4kN. When it isn't rotating, the static bearing can withstand loads of up to 2.36kN.
