FAG 7200-B-XL-2RS-TVP 1 Row Ball Bearing - 10 mm ID, 30 mm OD 9 mm Race Width
- RS Stock No.:
- 187-9501
- Mfr. Part No.:
- 7200-B-XL-2RS-TVP
- Manufacturer:
- FAG
Subtotal (1 unit)*
PHP7,366.07
(exc. VAT)
PHP8,250.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 4 unit(s) shipping from April 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP7,366.07 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 187-9501
- Mfr. Part No.:
- 7200-B-XL-2RS-TVP
- Manufacturer:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 10mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 30mm | |
| Race Width | 9mm | |
| Cage Material | Polyamide | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 2.6kN | |
| Contact Angle | 40° | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 5.6kN | |
| Standards/Approvals | No | |
| Series | 2 Light | |
| Bore Type | Parallel | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Limiting Speed | 16100rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 10mm | ||
Product Type Ball Bearing | ||
Outside Diameter 30mm | ||
Race Width 9mm | ||
Cage Material Polyamide | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 2.6kN | ||
Contact Angle 40° | ||
Internal Clearance CN | ||
Dynamic Load Rating 5.6kN | ||
Standards/Approvals No | ||
Series 2 Light | ||
Bore Type Parallel | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
Limiting Speed 16100rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
Race Type Plain | ||
- COO (Country of Origin):
- DE

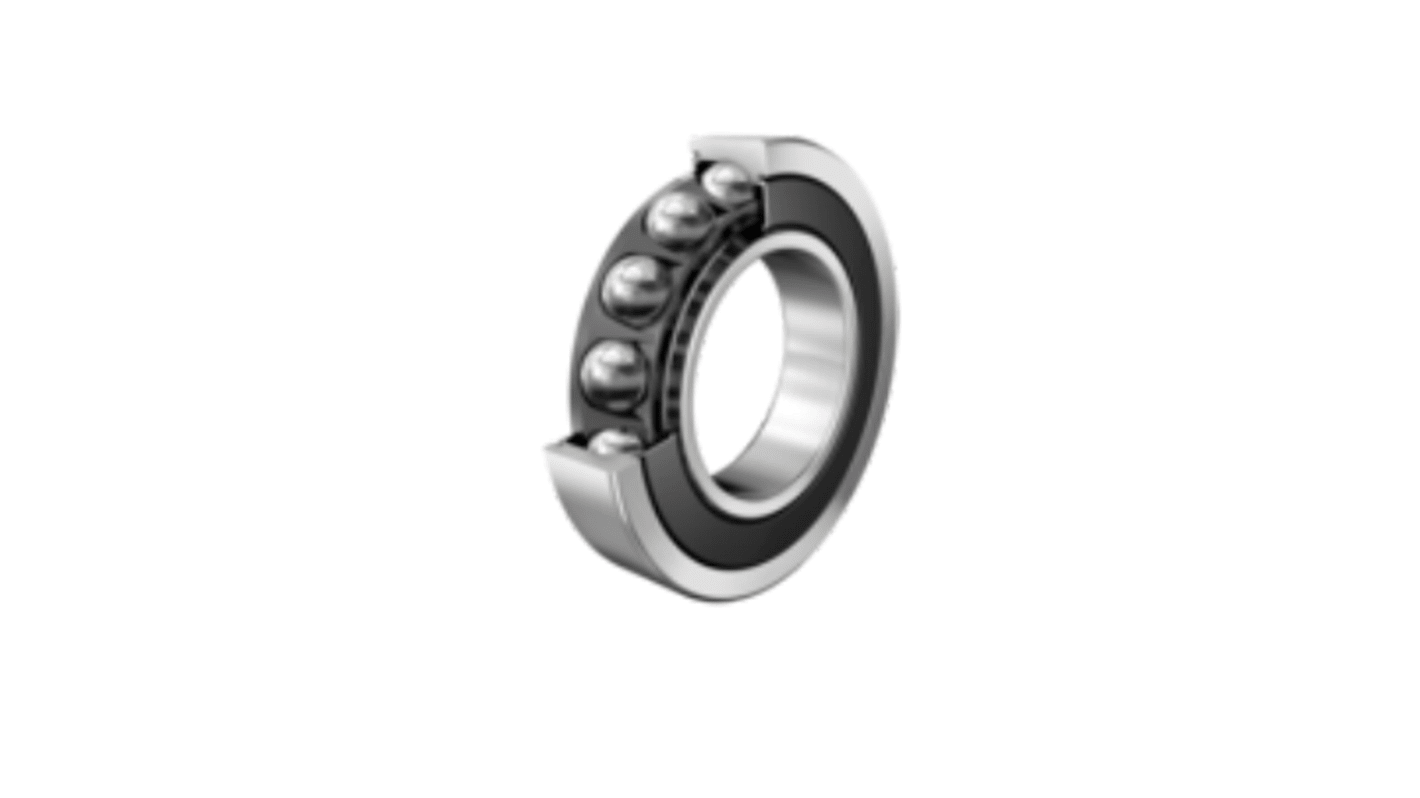

Schaeffler Angular Contact Ball Bearing, 10mm Inside Diameter, 30mm Outside Diameter - 7200-B-XL-2RS-TVP
This angular contact ball bearing is characterised by a precision design ideal for high-load applications. The bearing features an inner diameter of 10mm and an outer diameter of 30mm, along with a race width of 9mm. This sealed ball bearing offers enhanced durability and reliability for various engineering tasks.
Features & Benefits
• Crafted from high-quality steel for robust performance
• Single row angular contact design enables efficient load handling
• Sealed on both sides, ensuring protection against contaminants
• CN clearance maintains optimal performance under varying loads
• Polyamide cage optimises weight while promoting strength
Applications
• Used for precision machinery requiring high load capacity
• Ideal for within the automation industry
• Suitable for various electrical and mechanical assemblies
• Used with rotating components needing stability and strength
What is the significance of the sealing arrangement?
The dual sealing arrangement enhances protection against external contaminants, ensuring the longevity and reliability of operation in various environments.
How does the polyamide cage benefit performance?
The polyamide cage reduces friction and weight, facilitating smoother operation and increased efficiency while maintaining structural integrity under stress.
What types of loads can this bearing handle effectively?
With a dynamic load rating of 5600N, it accommodates both radial and axial loads, making it suitable for demanding applications in machinery and equipment.
