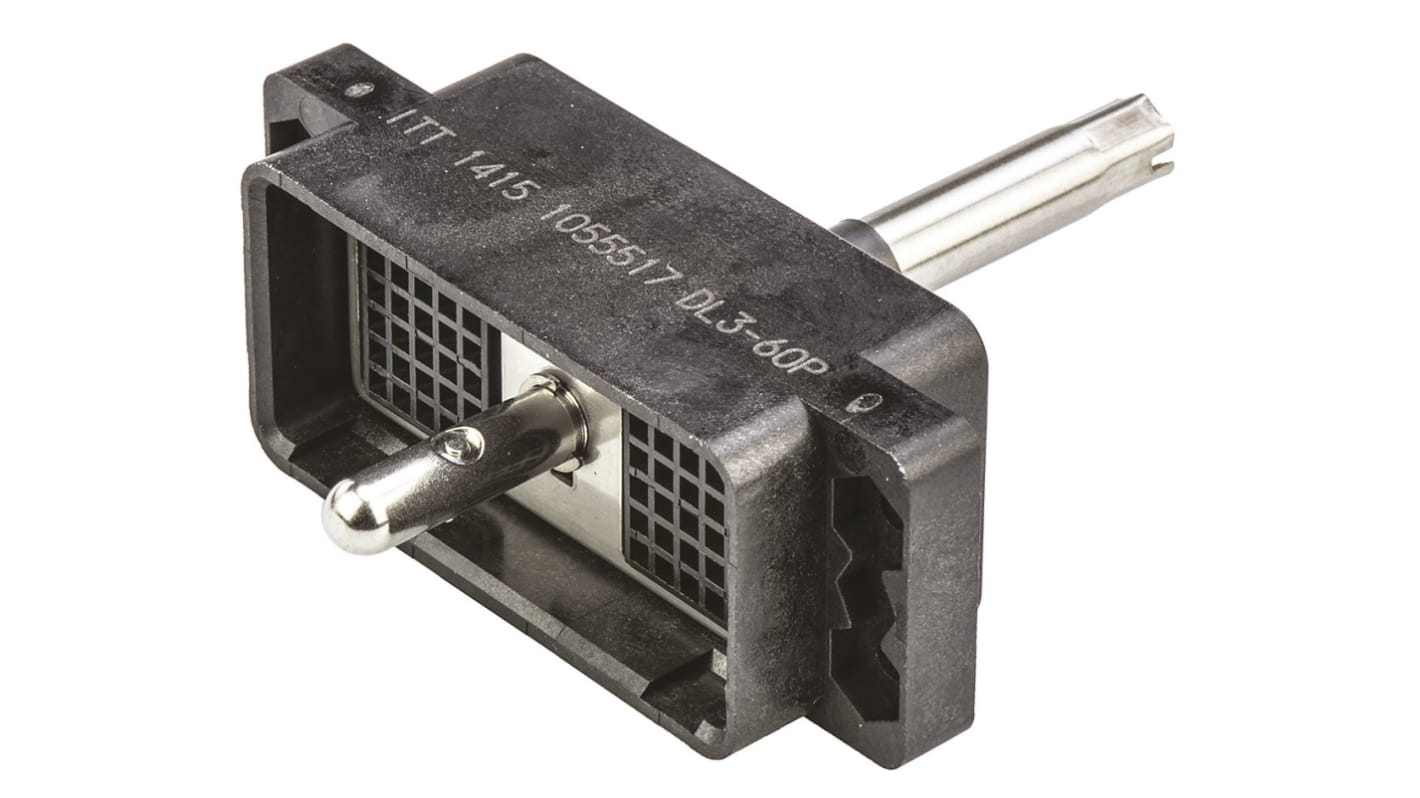

ITT Cannon, DL 2.54 mm Pitch CanNon-ZIF Plug Body, Straight Male, 60 Way
- RS Stock No.:
- 129-6094
- Mfr. Part No.:
- DL3-60P
- Manufacturer:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
PHP8,388.71
(exc. VAT)
PHP9,395.36
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 143 unit(s) shipping from February 23, 2026
- Plus 1 unit(s) shipping from March 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 19 | PHP8,388.71 |
| 20 - 39 | PHP8,137.05 |
| 40 + | PHP7,892.92 |
*price indicative
- RS Stock No.:
- 129-6094
- Mfr. Part No.:
- DL3-60P
- Manufacturer:
- ITT Cannon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Product Type | Plug Body | |
| Backplane Connector Type | CanNon-ZIF | |
| Current | 5A | |
| Number of Contacts | 60 | |
| Orientation | Straight | |
| Voltage | 1.2 V | |
| Connector Gender | Male | |
| Housing Material | Thermoplastic | |
| Pitch | 2.54mm | |
| Contact Material | Copper Alloy | |
| Mount Type | Panel | |
| Contact Plating | Gold over Nickel | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Series | DL | |
| Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Product Type Plug Body | ||
Backplane Connector Type CanNon-ZIF | ||
Current 5A | ||
Number of Contacts 60 | ||
Orientation Straight | ||
Voltage 1.2 V | ||
Connector Gender Male | ||
Housing Material Thermoplastic | ||
Pitch 2.54mm | ||
Contact Material Copper Alloy | ||
Mount Type Panel | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Series DL | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
ITT Cannon ZIP Connector Plug
The ITT Cannon DL series high-density 60-way ZIP connector plug has zero insertion force. This male connector has 60 contacts and it is made of beryllium copper with gold plating. The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is extremely important. This connector has backshell/strain relief and polarising option, which ensures correct orientation. The housing is made of thermoplastic material.
Features and Benefits
Any number of contacts can be loaded into individual cavities, up to the maximum stated
Current rating is 5A
Voltage rating is 1.2kVAC
Long life - 10000 mating cycles
Moulded alpha numeric cavity grid reference
Operating temperature ranges between -55°C and 105°C
Panel mounting holes accept back shells and polarising pillars
Termination type is crimp
Applications
Broadcast and avionics industry
Computers
Instrumentation equipment in medical field
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
