Nisshinbo Micro Devices Microphone Amplifier, 14-Pin SSOP-14
- RS Stock No.:
- 244-9781
- Mfr. Part No.:
- NJM2783V-TE1
- Manufacturer:
- Nisshinbo Micro Devices

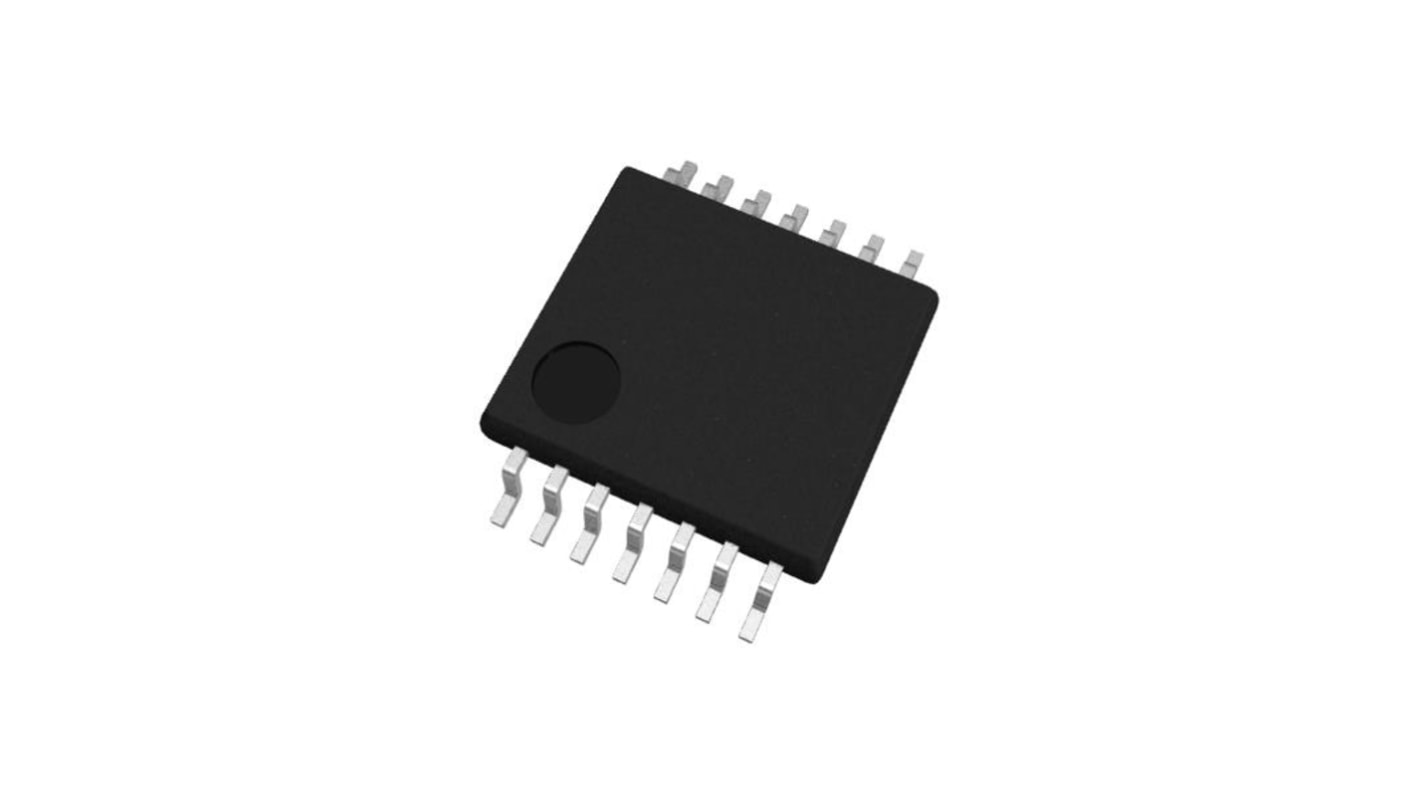

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 reel of 2000 units)*
PHP86,730.00
(exc. VAT)
PHP97,138.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 2,000 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | PHP43.365 | PHP86,730.00 |
| 4000 - 4000 | PHP42.064 | PHP84,128.00 |
| 6000 + | PHP40.381 | PHP80,762.00 |
*price indicative
- RS Stock No.:
- 244-9781
- Mfr. Part No.:
- NJM2783V-TE1
- Manufacturer:
- Nisshinbo Micro Devices
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Amplifier Type | Microphone Amplifier | |
| Product Type | Microphone Amplifier | |
| Application | Audio Equipment | |
| Mount Type | Surface | |
| Number of Channels | 1 | |
| Package Type | SSOP-14 | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40°C | |
| Series | NJM2783 | |
| Standards/Approvals | No | |
| Maximum Supply Voltage | 14V | |
| Minimum Supply Voltage | 2.7V | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Amplifier Type Microphone Amplifier | ||
Product Type Microphone Amplifier | ||
Application Audio Equipment | ||
Mount Type Surface | ||
Number of Channels 1 | ||
Package Type SSOP-14 | ||
Pin Count 14 | ||
Minimum Operating Temperature -40°C | ||
Series NJM2783 | ||
Standards/Approvals No | ||
Maximum Supply Voltage 14V | ||
Minimum Supply Voltage 2.7V | ||
Automotive Standard No | ||
Maximum Operating Temperature 85°C | ||
The New Japan Radio NJM2783 series is a monaural microphone amplifier with auto level control function to avoid distortion due to clipping. The voltage gain and the limit level are adjustable by external resistors. It is suitable for mini component audio system, home audio system, karaoke and others.
Monaural Microphone Amplifier
Auto level control function
Adjustable voltage gain by external resistors
Additional Gain Amplifier
Built in Buffer Amplifier
Low Equivalent Input Noise
Carefully designed to reject RF noise
Bipolar Technology
