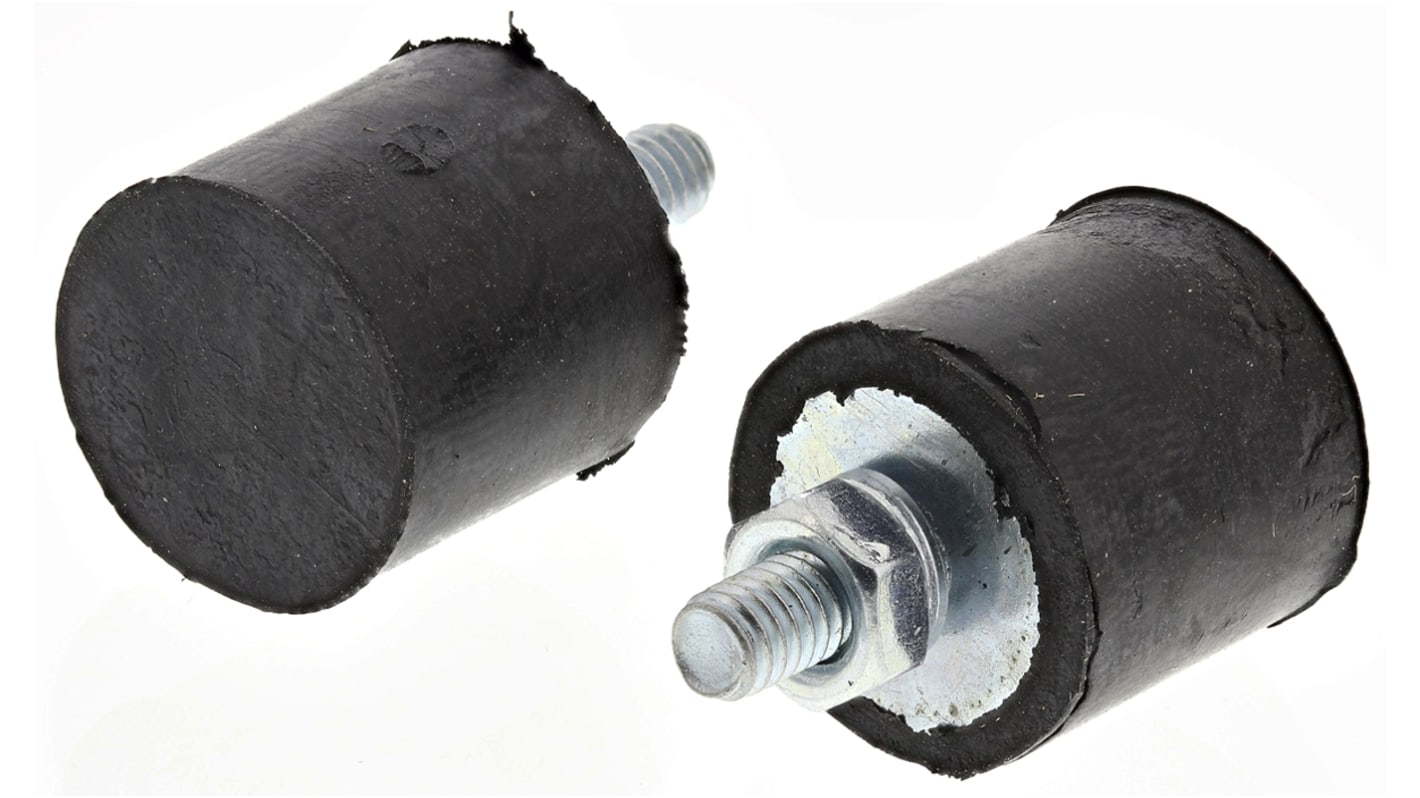

FIBET Cylindrical M4 x 10 mm Anti-Vibration Mount, Male Buffer Foot with 22.8 daN Compression, 16 mm OD, 25 mm H
- RS Stock No.:
- 720-3348
- Mfr. Part No.:
- 1615VE10-60
- Manufacturer:
- FIBET
Get a bulk buy discount
Add 20 more to save 3%
View bulk pricing optionsSubtotal (1 pack of 4 units)*
PHP817.64
(exc. VAT)
PHP915.76
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 388 unit(s) shipping from November 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* | Saving |
|---|---|---|---|
| 4 - 16 | PHP204.41 | PHP817.64 | - |
| 20 - 36 | PHP198.275 | PHP793.10 | 3% |
| 40 + | PHP192.325 | PHP769.30 | 5% |
*price indicative
- RS Stock No.:
- 720-3348
- Mfr. Part No.:
- 1615VE10-60
- Manufacturer:
- FIBET
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FIBET | |
| Anti Vibration Mount Type | Male Buffer Foot | |
| Product Type | Anti-Vibration Mount | |
| Thread Size | M4 x 10 mm | |
| Foot Height | 15mm | |
| Overall Height | 25mm | |
| Static Load Rating | 7.6daN | |
| Outside Diameter | 16mm | |
| Material | Nitrile Rubber (NBR), Galvanised Steel | |
| Mount Type | Screw | |
| Standards/Approvals | RoHS | |
| Foot Shape | Cylindrical | |
| Compression Load | 22.8daN | |
| Shore Hardness | 60 IRHD | |
| Compression Deflection | 3mm | |
| Series | VE | |
| Select all | ||
|---|---|---|
Brand FIBET | ||
Anti Vibration Mount Type Male Buffer Foot | ||
Product Type Anti-Vibration Mount | ||
Thread Size M4 x 10 mm | ||
Foot Height 15mm | ||
Overall Height 25mm | ||
Static Load Rating 7.6daN | ||
Outside Diameter 16mm | ||
Material Nitrile Rubber (NBR), Galvanised Steel | ||
Mount Type Screw | ||
Standards/Approvals RoHS | ||
Foot Shape Cylindrical | ||
Compression Load 22.8daN | ||
Shore Hardness 60 IRHD | ||
Compression Deflection 3mm | ||
Series VE | ||
Male Light Duty Buffer Feet - Type VE
Zinc plated steel with bonded natural rubber
Ideal for sensitive apparatus
Male threaded version
