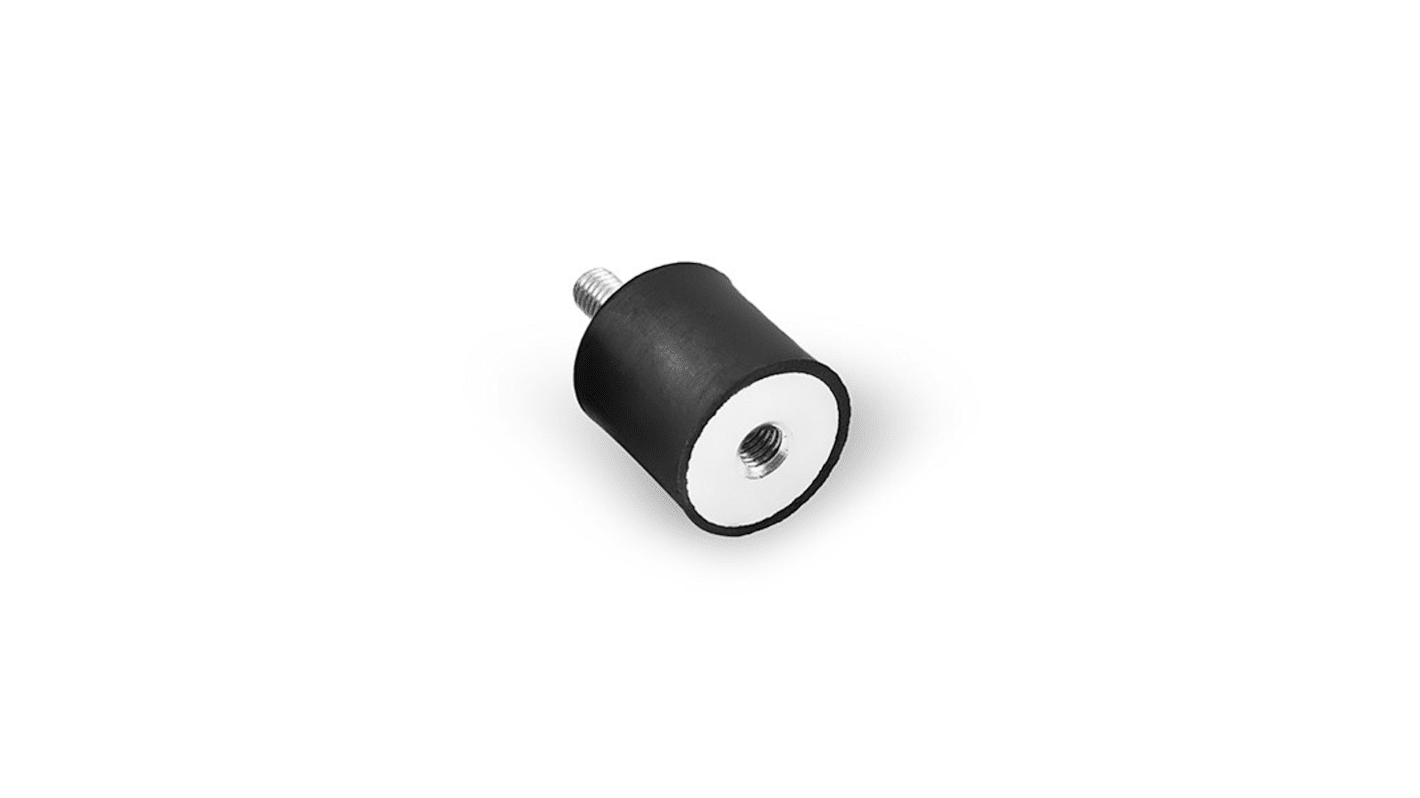

FIBET M4 x 10 mm Anti-Vibration Mount, Male to Female Bobbin with 11.7 daN Compression, 10 mm OD, 8 mm H
- RS Stock No.:
- 720-3313
- Mfr. Part No.:
- 1008VD10-60
- Manufacturer:
- FIBET
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 4 units)*
PHP688.83
(exc. VAT)
PHP771.49
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 616 unit(s) shipping from November 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 4 - 16 | PHP172.208 | PHP688.83 |
| 20 - 36 | PHP167.04 | PHP668.16 |
| 40 + | PHP162.033 | PHP648.13 |
*price indicative
- RS Stock No.:
- 720-3313
- Mfr. Part No.:
- 1008VD10-60
- Manufacturer:
- FIBET
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FIBET | |
| Anti Vibration Mount Type | Male to Female Bobbin | |
| Product Type | Anti-Vibration Mount | |
| Thread Size | M4 x 10 mm | |
| Overall Height | 8mm | |
| Static Load Rating | 7.3daN | |
| Outside Diameter | 10mm | |
| Material | Rubber, Galvanised Steel | |
| Mount Type | Bobbin | |
| Standards/Approvals | RoHS | |
| Compression Load | 11.7daN | |
| Shore Hardness | 60 IRHD | |
| Compression Deflection | 1.6mm | |
| Series | VD | |
| Select all | ||
|---|---|---|
Brand FIBET | ||
Anti Vibration Mount Type Male to Female Bobbin | ||
Product Type Anti-Vibration Mount | ||
Thread Size M4 x 10 mm | ||
Overall Height 8mm | ||
Static Load Rating 7.3daN | ||
Outside Diameter 10mm | ||
Material Rubber, Galvanised Steel | ||
Mount Type Bobbin | ||
Standards/Approvals RoHS | ||
Compression Load 11.7daN | ||
Shore Hardness 60 IRHD | ||
Compression Deflection 1.6mm | ||
Series VD | ||
Male-Female Mounts
VD Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male To Female
Cylindrical Mounts
Multiple-use bobbin mounts manufactured from natural rubber in 3 fitting options (male/male, male/female and female/female)
Good vibration isolation in rotating/reciprocating equipment
