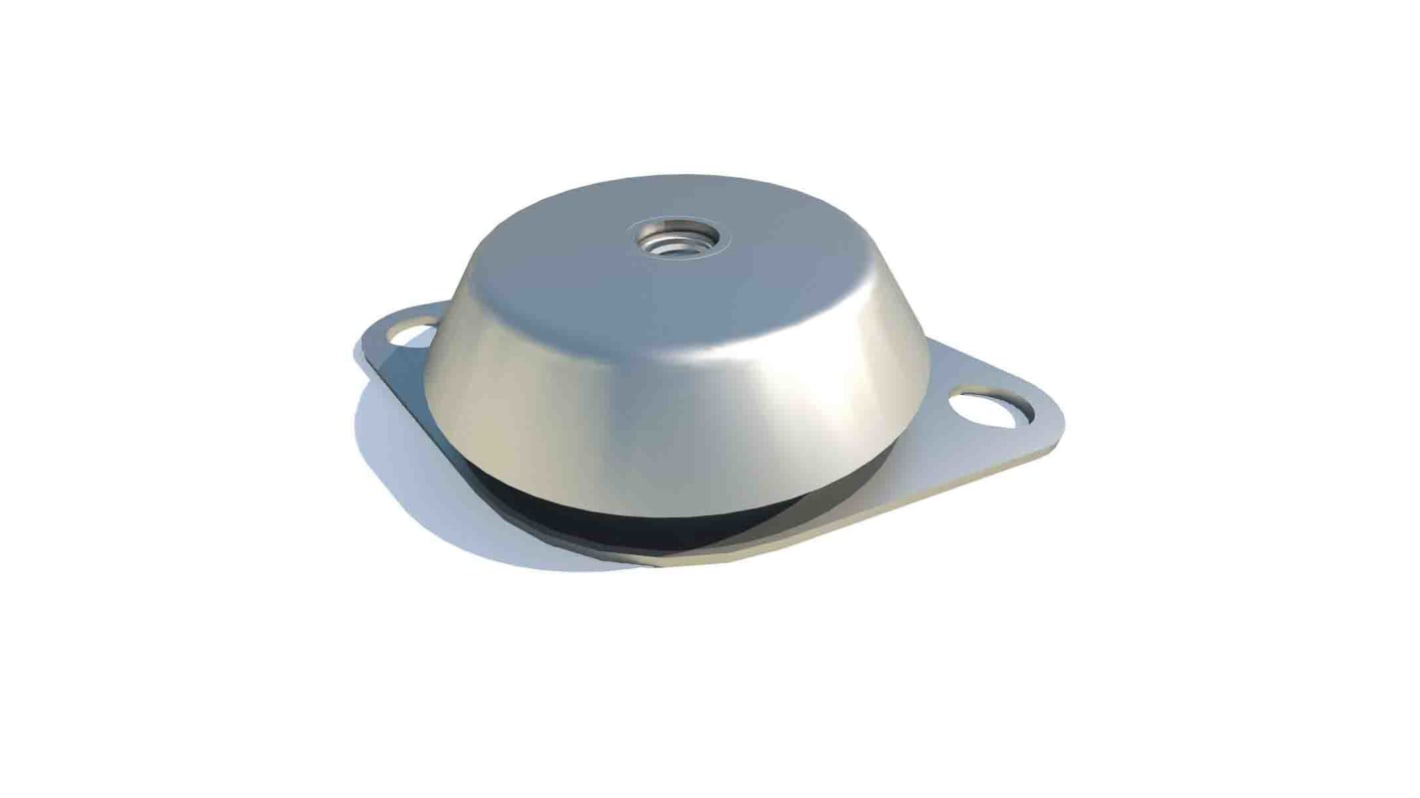

FIBET Round M12 Anti-Vibration Mount, Bell Mount with 660 daN Compression, 12mm Bore, 20 mm OD, 38 mm H
- RS Stock No.:
- 201-2307
- Mfr. Part No.:
- CCF1063812M
- Manufacturer:
- FIBET
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP3,009.60
(exc. VAT)
PHP3,370.75
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 6 unit(s) shipping from August 31, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP3,009.60 |
| 5 - 9 | PHP2,858.64 |
| 10 + | PHP2,798.81 |
*price indicative
- RS Stock No.:
- 201-2307
- Mfr. Part No.:
- CCF1063812M
- Manufacturer:
- FIBET
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FIBET | |
| Anti Vibration Mount Type | Bell Mount | |
| Product Type | Anti-Vibration Mount | |
| Thread Size | M12 | |
| Bore Diameter | 12mm | |
| Foot Height | 38mm | |
| Bore Length | 38mm | |
| Overall Height | 38mm | |
| Static Load Rating | 660daN | |
| Outside Diameter | 20mm | |
| Foot Colour | Black | |
| Minimum Operating Temperature | -25°C | |
| Material | Natural Rubber | |
| Mount Type | Bell Mount | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Foot Shape | Round | |
| Shore Hardness | 60 | |
| Compression Load | 660daN | |
| Compression Deflection | 3.5mm | |
| Series | 70 Shore A | |
| Select all | ||
|---|---|---|
Brand FIBET | ||
Anti Vibration Mount Type Bell Mount | ||
Product Type Anti-Vibration Mount | ||
Thread Size M12 | ||
Bore Diameter 12mm | ||
Foot Height 38mm | ||
Bore Length 38mm | ||
Overall Height 38mm | ||
Static Load Rating 660daN | ||
Outside Diameter 20mm | ||
Foot Colour Black | ||
Minimum Operating Temperature -25°C | ||
Material Natural Rubber | ||
Mount Type Bell Mount | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Foot Shape Round | ||
Shore Hardness 60 | ||
Compression Load 660daN | ||
Compression Deflection 3.5mm | ||
Series 70 Shore A | ||
- COO (Country of Origin):
- IT
The FIBET 60 IRHD CCF type bell mount offers a high level insulation and operating frequency of around 25 Hz (1,500 RPM). It is designed with a fail-safe function making it an ideal solution for applications where safety is paramount.
Axial stresses perfectly absorbed
Fail-safe function making
Toolroom machinery
