MEAN WELL AC/DC Adapter 264V ac Output 2500 mA, 24 V dc

RS Stock No.:: 880-8414
Distrelec Article No.:: 300-42-810
Mfr. Part No.:: GST60A24-P1J
Manufacturer:: MEAN WELL

MEAN WELL AC/DC Adapter 264V ac Output 2500 mA, 24 V dc

Bulk discount available

Subtotal (1 unit)*

PHP1,192.16

(exc. VAT)

PHP1,335.22

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

475 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 9	PHP1,192.16
10 - 49	PHP1,156.40
50 +	PHP1,110.14

*price indicative

RS Stock No.:: 880-8414
Distrelec Article No.:: 300-42-810
Mfr. Part No.:: GST60A24-P1J
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	AC/DC Adapter
	Maximum Output Current	2500mA
	Cable Length	1800mm
	Overall Length	125mm
	Input Connector Type	IEC 320-C14
	Maximum Operating Temperature	70°C
	Overall Width	50mm
	Standards/Approvals	UL 60950-1, IEC 60950-1, CE
	Maximum Input Voltage	264V ac
	Overall Depth	31.5 mm
	Series	GST60A
	Minimum Output Voltage	24V dc
	Minimum Input Voltage	90V ac

	Select all
	Brand MEAN WELL
	Product Type AC/DC Adapter
	Maximum Output Current 2500mA
	Cable Length 1800mm
	Overall Length 125mm
	Input Connector Type IEC 320-C14
	Maximum Operating Temperature 70°C
	Overall Width 50mm
	Standards/Approvals UL 60950-1, IEC 60950-1, CE
	Maximum Input Voltage 264V ac
	Overall Depth 31.5 mm
	Series GST60A
	Minimum Output Voltage 24V dc
	Minimum Input Voltage 90V ac

Datasheet

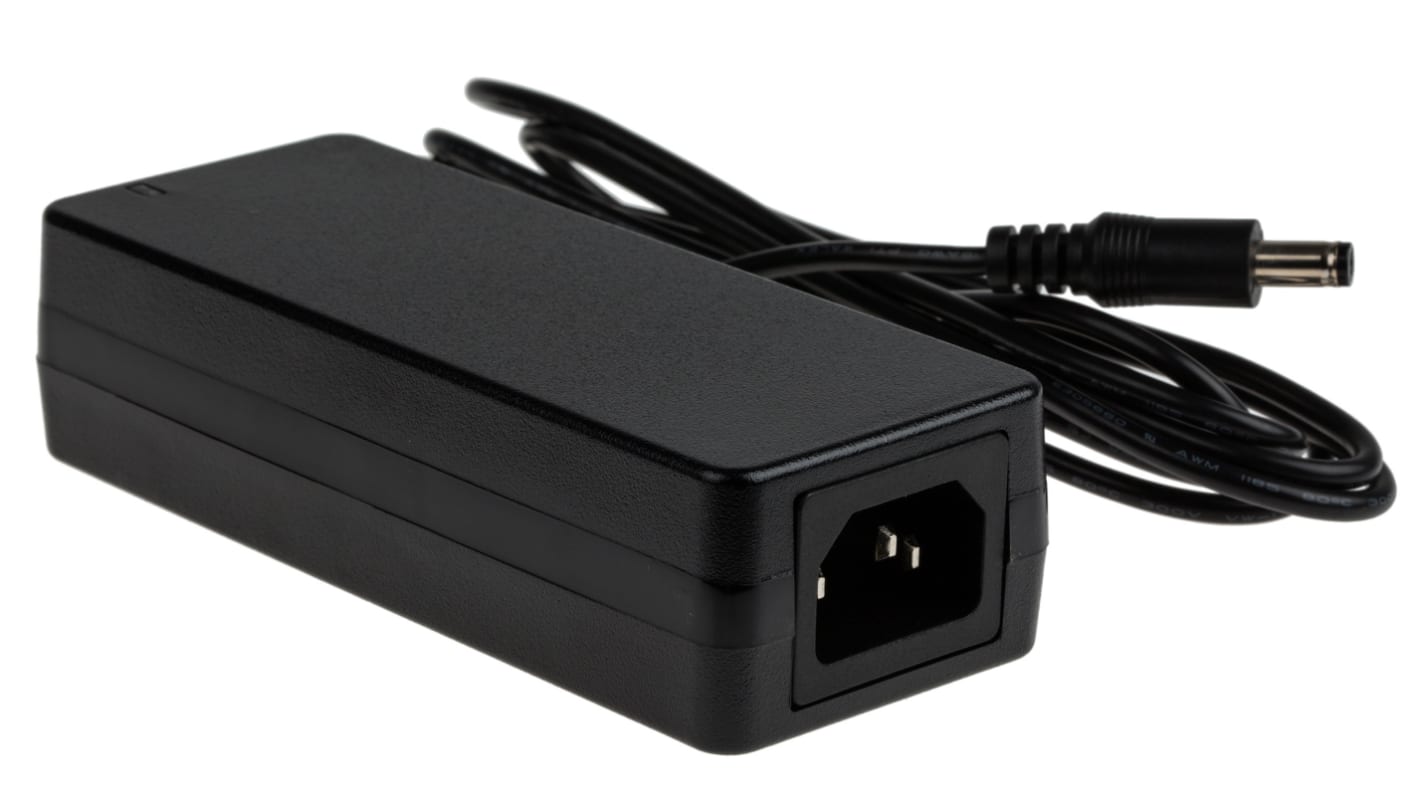

Mean Well Desktop Power Supply

The Mean Well GST60A series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 24VDC. It provides 60W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 85VAC to 264VAC/135VDC to 370VDC, its maximum input leakage current is 0.75mA. This product is equipped with a 3-pin standard IEC320-C14 power plug. This power supply boasts an efficiency rating of up to 90.5%, coupled with an extremely low no-load consumption rating of below 0.075W.

Features and Benefits

Output current is 2.5A

Protections for short-circuit, overload and over voltage

Fully enclosed plastic case

Class I power with earth pin

LED indicator for power on

No load power consumption less than 0.075W

ErP level VI compliant

Working temperature ranges between -30°C and 70°C

Applications

Consumer electronic devices

Telecommunication devices

Office facilities

Industrial equipment

Certifications

UL60950-1

TUV EN60950-1

BSMI CNS14336

CCC GB4943

J60950-1EN55022 class B

EN61000-3-2,3

FCC PART 15 / CISPR22 class B

CNS13438 class B

GB9254

GB17625.1

EN61000-4-2,3,4,5,6,8,11

Light industry level, criteria A
