Microchip, 2-Channel Buck, Boost, Buck Boost Controller, 35 A, 5.25 V 2 MHz, QFN 28-Pin

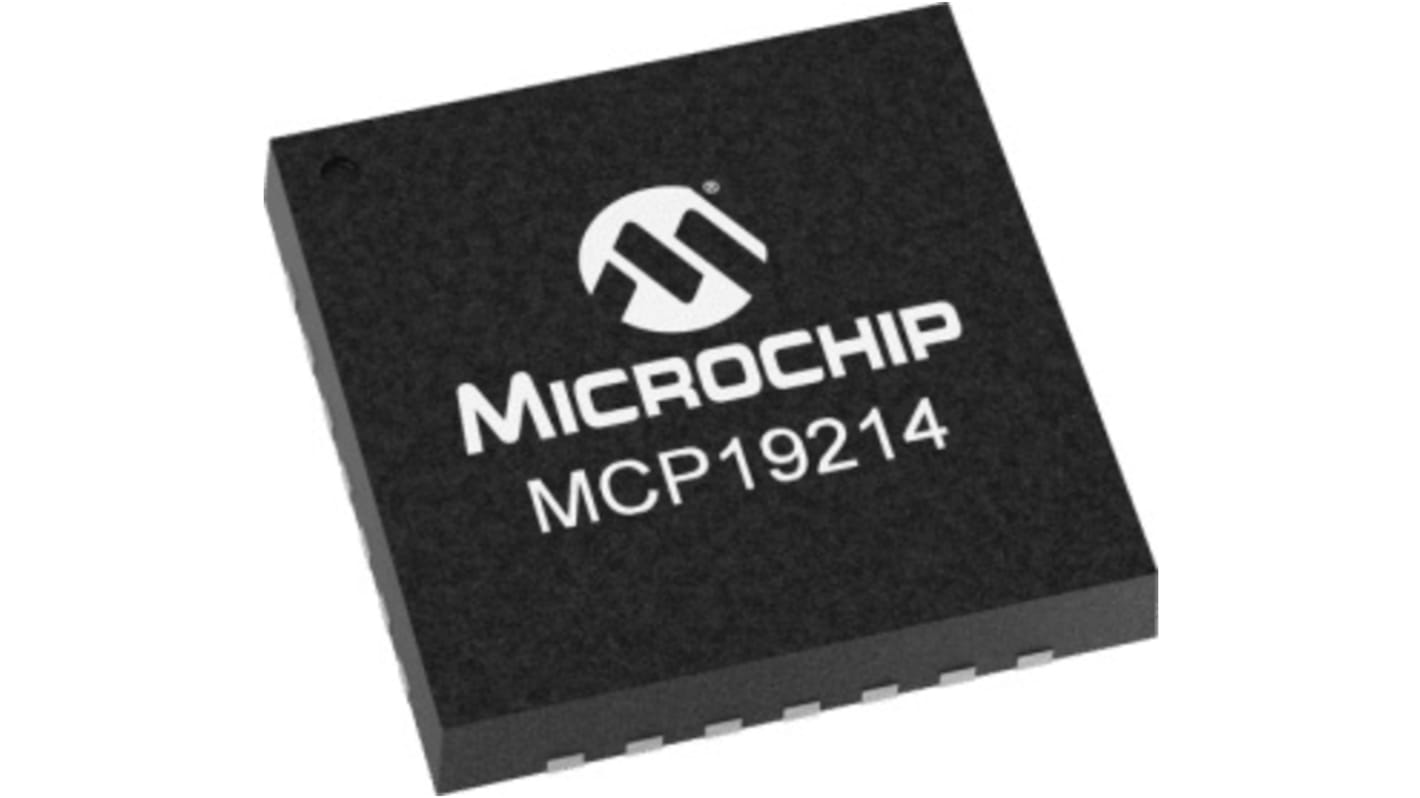

This image is representative of the product range

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
175-3139
Mfr. Part No.:
MCP19214-E/MQ
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Buck Boost Controller

Regulator Type

Buck, Boost

Output Voltage

5.25 V

Number of Outputs

2

Switching Frequency

2MHz

Line Regulation

0.1 %/V

Load Regulation

±1 %

Mount Type

Surface

Polarity

Positive

Package Type

QFN

Quiescent Current

6mA

Pin Count

28

Output Current

35A

Output Type

Adjustable

Switching Regulator

Yes

Height

0.95mm

Width

5 mm

Series

MCP19214

Length

5mm

Standards/Approvals

No

Maximum Input Voltage

42V

Minimum Input Voltage

4.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Automotive Standard

AEC-Q100

COO (Country of Origin):
US
The MCP19214 is a dual-channel, mid-voltage (4.5-42V) analog-based PWM controller with an integrated 8-bit PICTM Microcontroller. This unique product family combines the performance of a high-speed analog control solution, including high-efficiency and fast transient response, with the configurability and communication interface of a digital solution.

Dual channel, for operating two power outputs from one controller

Constant-current or constant-voltage operation, with dynamic switching between those two control modes, and dynamic adjustment of the output level

Capable of bi-directional power supply control

Wide input operating voltage range: 4.5-42V

Analog peak-current mode Pulse-Width Modulation (PWM) control

Integrated 8-Bit PIC® Microcontroller

Complete configurability: adjustable output voltage, output current, MOSFET deadtime, leading edge blanking time, thermal responses, slope compensation, over-current
