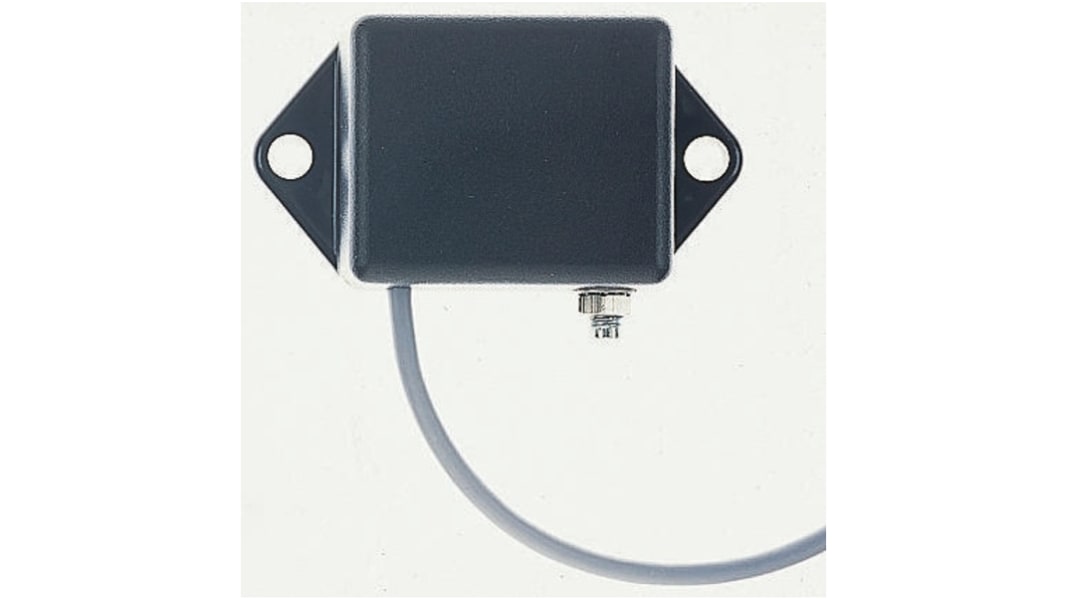

Assemtech 15° Horizontal Tilt Switch 40mA, 60V
- RS Stock No.:
- 331-7531
- Mfr. Part No.:
- CW 60A/30
- Manufacturer:
- Assemtech
Price Each
PHP4,683.56
(exc. VAT)
PHP5,245.59
(inc. VAT)
79 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Units | Per Unit |
|---|---|
| 1 - 4 | PHP4,683.56 |
| 5 - 9 | PHP4,543.04 |
| 10 + | PHP4,406.74 |
- RS Stock No.:
- 331-7531
- Mfr. Part No.:
- CW 60A/30
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Tilt Switch with Adjustment
Adjustable sensitivity via an internal potentiometer
IP65 ABS housing which is prewired with 300mm (Vibration/Movement version) or 100mm (Tilt version) of 3 core PVC cable
Tilt switch features anti vibration circuitry
Differential angle 15°
IP65 ABS housing which is prewired with 300mm (Vibration/Movement version) or 100mm (Tilt version) of 3 core PVC cable
Tilt switch features anti vibration circuitry
Differential angle 15°
Specifications
Attribute | Value |
|---|---|
| Differential Angle | 15° |
| Mounting Orientation | Horizontal |
| Electrical Output | Logic |
| Maximum Current | 40mA |
| Maximum AC Voltage | 60V |
| Maximum DC Voltage | 5V |
| Terminal Type | Wire Lead |
| Length | 50.8mm |
| Width | 32mm |
| Depth | 20.3mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Dimensions | 50.8 x 32 x 20.3mm |
