XP Power Switching Regulator, Surface Mount, 2.5V dc Output Voltage, 4.75 → 32V dc Input Voltage, 500mA Output

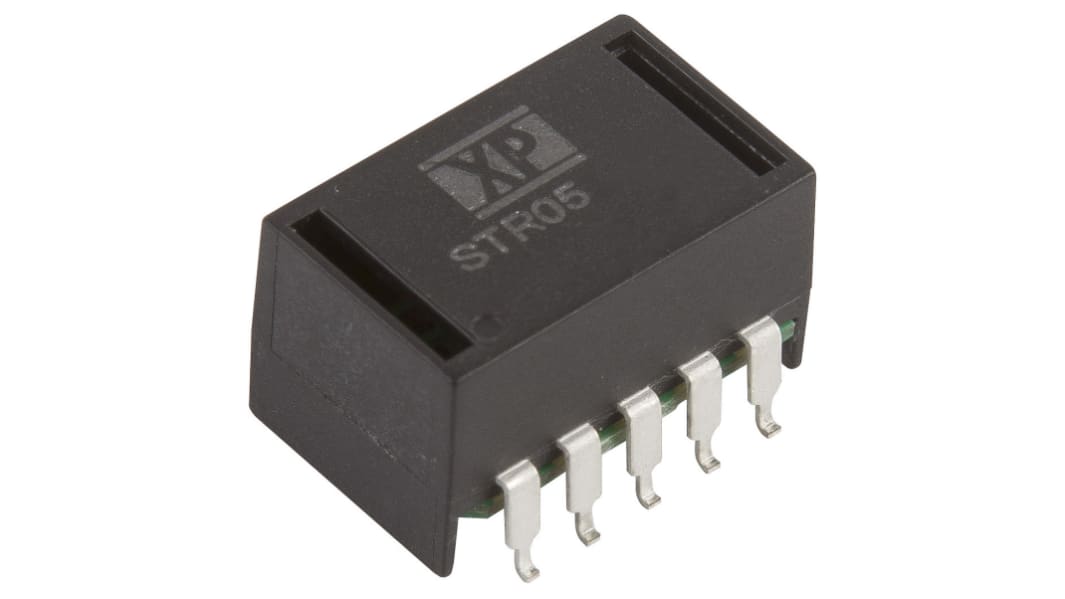

This image is representative of the product range

View all Switching Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
167-1977
Mfr. Part No.:
STR05S2V5
Manufacturer:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

2.5V dc

Output Current

500mA

Input Voltage

4.75 → 32V dc

Mounting Type

Surface Mount

Number of Outputs

1

Package

SMD

Power Rating

1.25W

Efficiency

77%

Ripple And Noise

30mV Pk-Pk

Maximum Temperature

+100°C

Minimum Temperature

-40°C

Series

STR

Line Regulation

±0.4%

MTBF

2Mh

Depth

8.8mm

Rated Output Power

1.25W

Power Signal Conversion Type

DC-DC

Length

15.3mm

Output Voltage Adjustment Range

1.5-3.0V

Special Features

Wide Input Range

Load Regulation

±0.6%

Switching Frequency Range

280 → 380kHz

Protection Features

Short Circuit Protection

Weight

1.7g

Width

9.6mm

Maximum Input Current

5mA

COO (Country of Origin):
TW

XP Power - STR Series of Switching Regulators


The STR series from XP Power offers a highly reliable range of 0.5 Amp, regulated single output DC-DC converters. The range has been designed in a compact SMD package and has a high efficiency of up to 97%.

0.5 Amp
Regulated single output
Compact SMD package
-40°C to +100 °C Operating Temperature
Remote On/Off
Output voltage trim
Wide input range
3-year warranty
