RS PRO 10 Tooth Pilot Sprocket 05B-1 Chain Type
- RS Stock No.:
- 146-5425
- Manufacturer:
- RS PRO
18 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
54 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP283.04
(exc. VAT)
PHP317.00
(inc. VAT)
| Units | Per Unit |
| 1 - 4 | PHP283.04 |
| 5 - 9 | PHP279.07 |
| 10 - 24 | PHP273.49 |
| 25 + | PHP268.03 |
- RS Stock No.:
- 146-5425
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

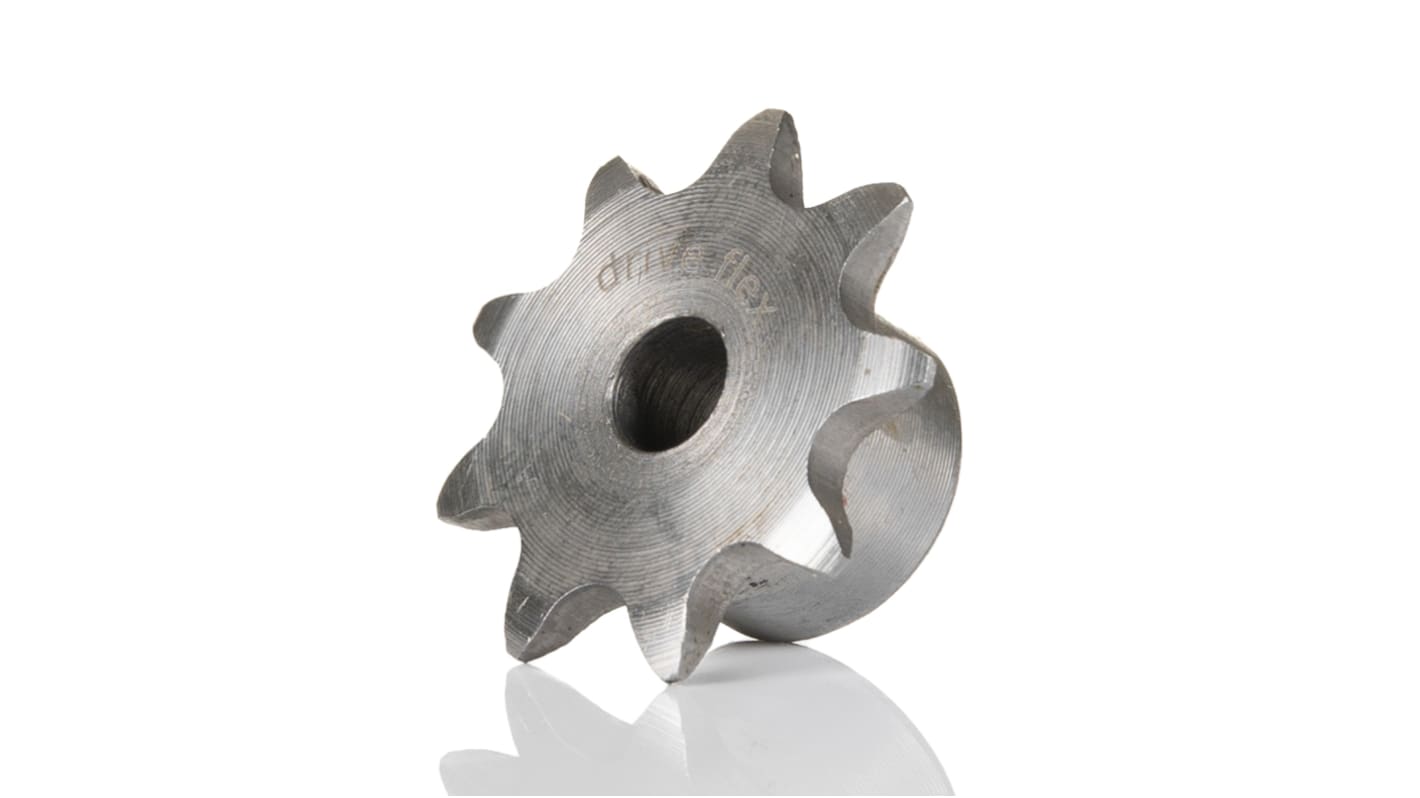

RS PRO 05B 10 Tooth Pilot Sprocket (8mm Bore)
An 05B pilot socket for use with the British standard 05B chain size (5mm) and is usually used for light duty applications under normal stress levels. Pilot sprockets (or rough sock bore sprockets) are designed with a hub that sits on the centre of the shaft and provides a secure and stable method of power transmission to the chain.
The 05B sprockets are constructed from high quality Steel for excellent tooth strength and protection from and deformation, they are maintenance free once installed and can easily be re-bored by the operator to meet their required needs.
Pilot sprockets are commonly used in vehicle gear boxes, industrial machinery, drive chains, gearboxes, motor bikes and bicycles.
Features and Benefits
05B Pilot Sprocket
10 tooth design
8mm bore size
Steel construction
Maintenance free
Easily re-bored
10 tooth design
8mm bore size
Steel construction
Maintenance free
Easily re-bored
RS PRO 05B Pilot Sprockets Variants
8 teeth - RS PRO 146-5423
9 teeth - RS PRO 146-5424
10 teeth - RS PRO 146-5425
11 teeth - RS PRO 146-5426
12 teeth - RS PRO 146-5427
13 teeth - RS PRO 182-880
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Number of Teeth | 10 |
| To Fit British Standard Chain Type | 05B-1 |
| Bore Type | Pilot |
| Maximum Bore Diameter | 8mm |
| Pitch Diameter | 25.89mm |
| Material | Steel |
| Sprocket Width | 12mm |
