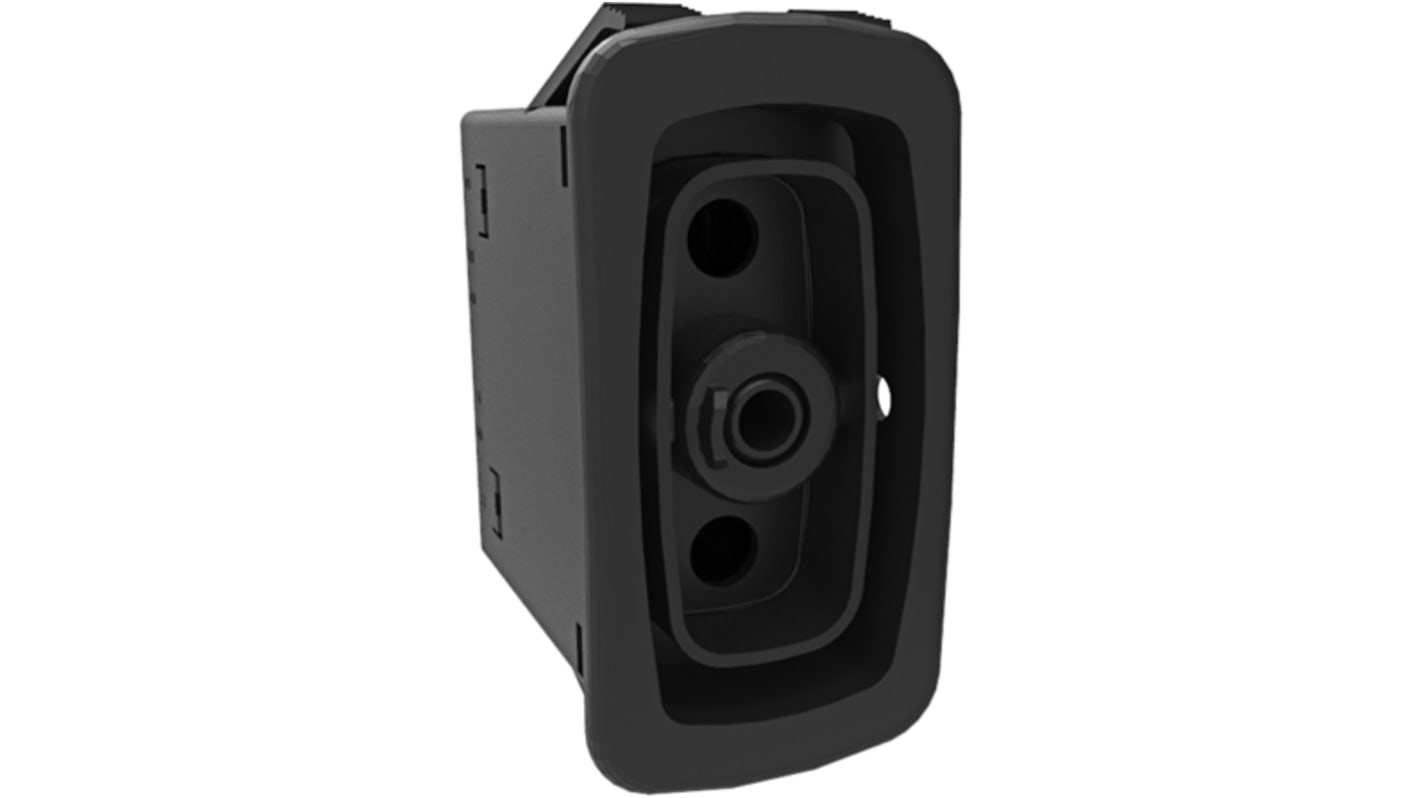

Carling Technologies DPST, (On)-None-Off Rocker Switch Panel Mount
- RS Stock No.:
- 913-1872
- Mfr. Part No.:
- L2241S001-00000-000-XWL1
- Manufacturer:
- Carling Technologies
Bulk discount available
Subtotal (1 unit)*
PHP352.53
(exc. VAT)
PHP394.83
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 9 | PHP352.53 |
| 10 - 49 | PHP343.56 |
| 50 - 99 | PHP325.60 |
| 100 - 249 | PHP315.85 |
| 250 + | PHP296.23 |
*price indicative
- RS Stock No.:
- 913-1872
- Mfr. Part No.:
- L2241S001-00000-000-XWL1
- Manufacturer:
- Carling Technologies
Specifications
Technical data sheets
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carling Technologies | |
| Contact Configuration | DPST | |
| Switch Operation | (On)-None-Off | |
| Panel Cut Out Width | 22.02mm | |
| Panel Cut Out Height | 44.04mm | |
| Contact Current Rating | 15 A | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Mounting Type | Panel Mount | |
| IP Rating | IP67, IP68 | |
| Terminal Type | Quick Connect | |
| Actuator Shape | Rectangular | |
| AC Voltage Rating | 125 V, 250 V | |
| Panel Cut Out Size | 44.04 x 22.02mm | |
| DC Voltage Rating | 24V | |
| Mechanical Life | 250000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Contact Material | Gold, Silver Nickel, Silver Tin Oxide | |
| Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Case Material | Polyester | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Carling Technologies | ||
Contact Configuration DPST | ||
Switch Operation (On)-None-Off | ||
Panel Cut Out Width 22.02mm | ||
Panel Cut Out Height 44.04mm | ||
Contact Current Rating 15 A | ||
Illuminated No | ||
Actuator Colour Black | ||
Mounting Type Panel Mount | ||
IP Rating IP67, IP68 | ||
Terminal Type Quick Connect | ||
Actuator Shape Rectangular | ||
AC Voltage Rating 125 V, 250 V | ||
Panel Cut Out Size 44.04 x 22.02mm | ||
DC Voltage Rating 24V | ||
Mechanical Life 250000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
Contact Material Gold, Silver Nickel, Silver Tin Oxide | ||
Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Case Material Polyester | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- MX
