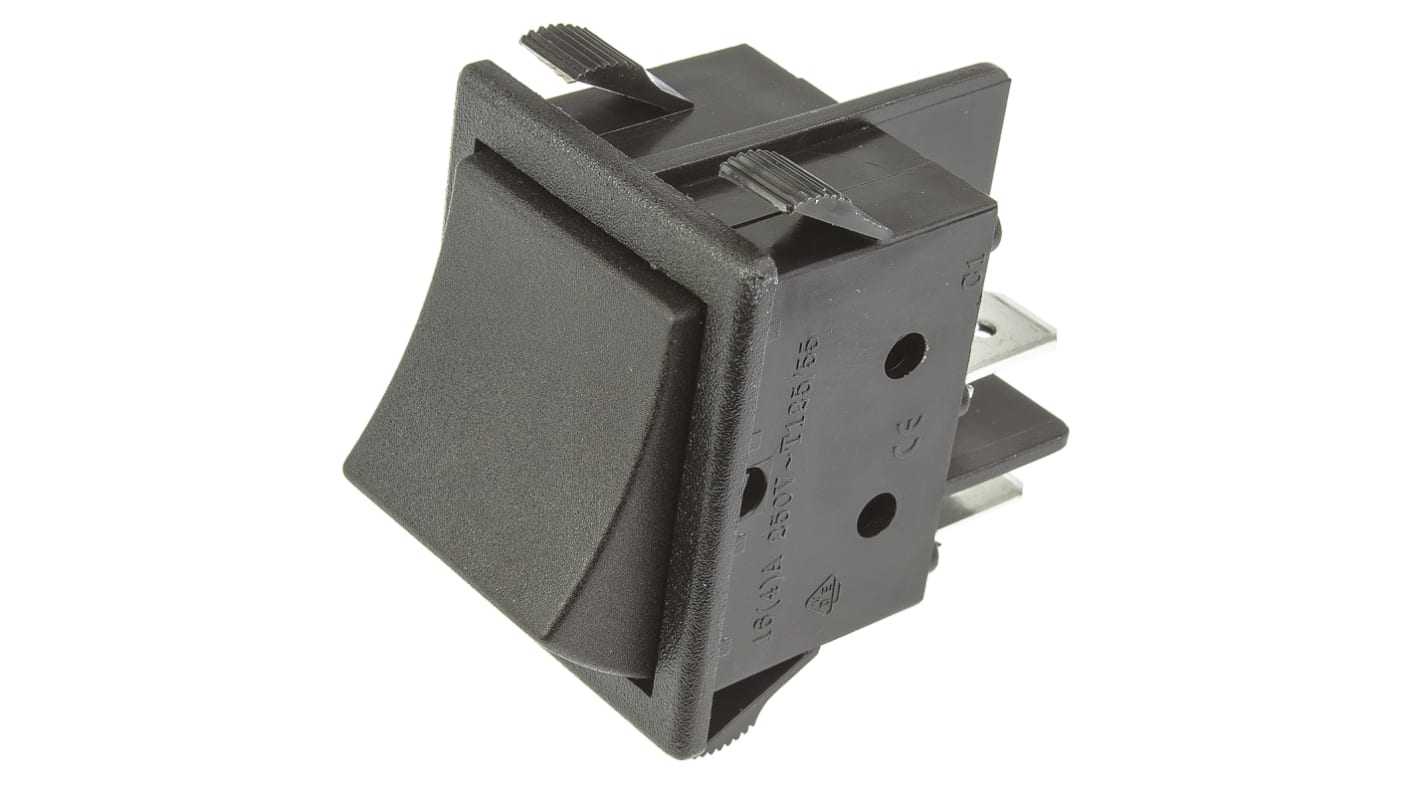

ZF DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 440-6834
- Mfr. Part No.:
- WRG32F2BBBNN
- Manufacturer:
- ZF
197 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Price Each
PHP281.85
(exc. VAT)
PHP315.67
(inc. VAT)
Units | Per Unit |
|---|---|
| 1 + | PHP281.85 |
- RS Stock No.:
- 440-6834
- Mfr. Part No.:
- WRG32F2BBBNN
- Manufacturer:
- ZF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Double Pole
Double pole rocker switch in black or grey and a number of functions
Rugged construction for high current applications
Single and double throw available
Durable silver alloy contacts for up to 16A switching
Connection via .250in faston terminals
Nylon 66 94 V-2 actuator
Rugged construction for high current applications
Single and double throw available
Durable silver alloy contacts for up to 16A switching
Connection via .250in faston terminals
Nylon 66 94 V-2 actuator
Approvals
VDE; UL; CSA
Approvals
VDE; UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 22mm |
| Panel Cut Out Height | 30.2mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Panel Cut Out Size | 30.2 x 22mm |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 125 V, 250V |
| Contact Resistance | 20mΩ |
| Operating Temperature Range | -20 → +65°C |
| Mechanical Life | 50000Operations |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
