Nisshinbo Micro Devices RF Switch SP4T, 6 GHz Max, 20 dB Isolation, 250 ns, 50Ω Output
- RS Stock No.:
- 244-9756
- Mfr. Part No.:
- NJG1809ME7-TE1
- Manufacturer:
- Nisshinbo Micro Devices

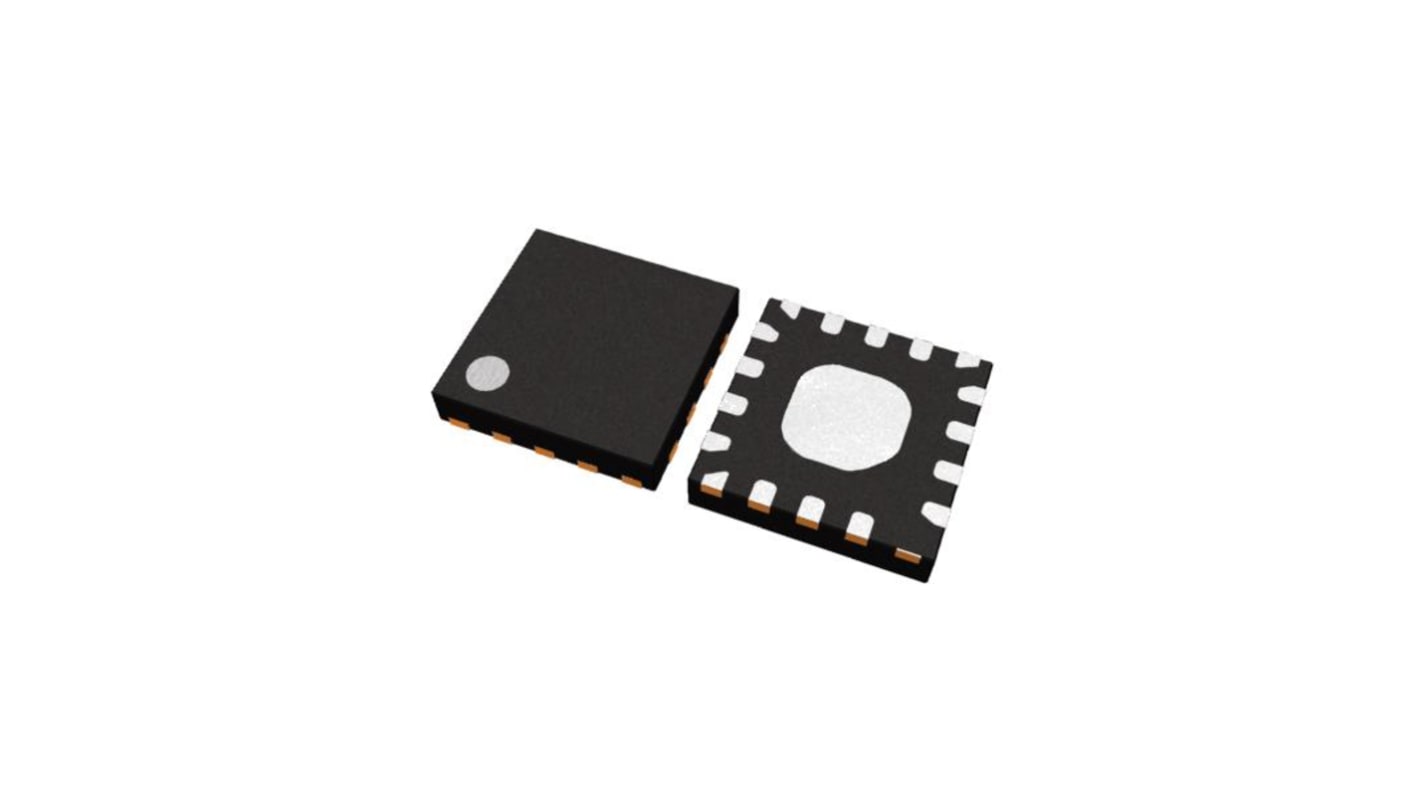

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP557.03
(exc. VAT)
PHP623.875
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2,150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 5 | PHP111.406 | PHP557.03 |
| 10 - 95 | PHP105.734 | PHP528.67 |
| 100 - 245 | PHP100.468 | PHP502.34 |
| 250 - 495 | PHP95.606 | PHP478.03 |
| 500 + | PHP90.744 | PHP453.72 |
*price indicative
- RS Stock No.:
- 244-9756
- Mfr. Part No.:
- NJG1809ME7-TE1
- Manufacturer:
- Nisshinbo Micro Devices
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Product Type | RF Switch | |
| Switching Speed | 250ns | |
| Port to Port Isolation | 20dB | |
| Maximum Insertion Loss | 0.75dB | |
| Contact Configuration | SP4T | |
| Output Impedance | 50Ω | |
| Contact Current | 10μA | |
| Contact DC Voltage | 2.75V dc | |
| Minimum Operating Temperature | -40°C | |
| Height | 0.39mm | |
| Maximum Operating Temperature | 105°C | |
| Length | 2mm | |
| Series | NJG1809ME7 | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 6GHz | |
| Width | 2 mm | |
| Minimum Frequency | 2.7GHz | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Product Type RF Switch | ||
Switching Speed 250ns | ||
Port to Port Isolation 20dB | ||
Maximum Insertion Loss 0.75dB | ||
Contact Configuration SP4T | ||
Output Impedance 50Ω | ||
Contact Current 10μA | ||
Contact DC Voltage 2.75V dc | ||
Minimum Operating Temperature -40°C | ||
Height 0.39mm | ||
Maximum Operating Temperature 105°C | ||
Length 2mm | ||
Series NJG1809ME7 | ||
Standards/Approvals RoHS | ||
Maximum Frequency 6GHz | ||
Width 2 mm | ||
Minimum Frequency 2.7GHz | ||
The New Japan Radio NJG1809ME7 series is a high power SP4T switch. This switch features very low insertion loss and high isolation up to 6GHz and excellent linearity performance with 1.8V control voltage. This switch achieves high speed switching time for WLAN application. Integrated ESD protection device on each port achieves excellent ESD robustness. No DC Blocking capacitors are required for all RF ports unless DC is biased externally.
Low voltage logic control
Low insertion loss
High isolation
High speed switching time
Small and thin package
RoHS compliant and Halogen Free
