RS PRO 6 A 250V ac 50/60 Hz, Chassis Mount Power Line Filter, Fast-On 1 Phase
- RS Stock No.:
- 278-5152
- Manufacturer:
- RS PRO

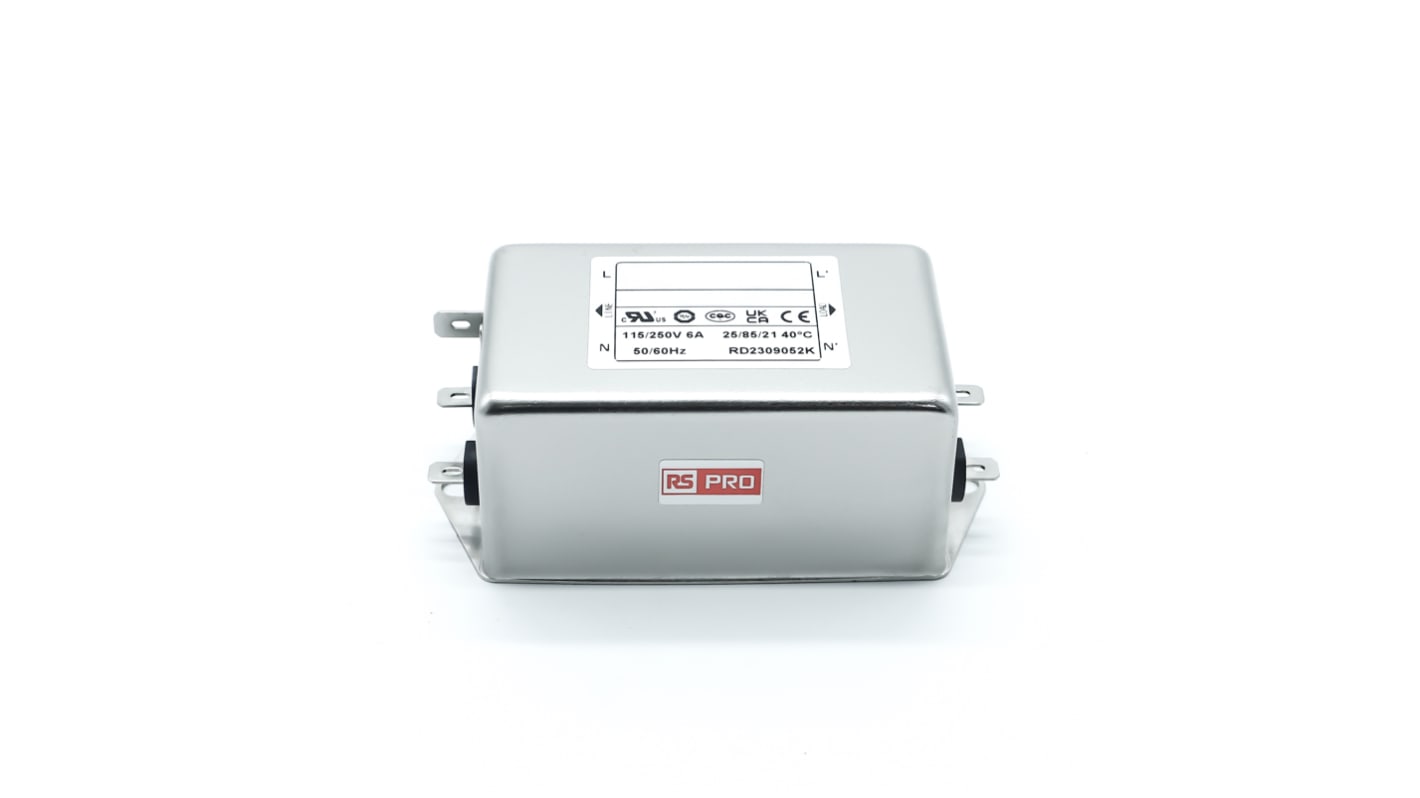

This image is representative of the product range
Subtotal (1 box of 32 units)*
PHP57,029.536
(exc. VAT)
PHP63,873.088
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Box* |
|---|---|---|
| 32 + | PHP1,782.173 | PHP57,029.54 |
*price indicative
- RS Stock No.:
- 278-5152
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Power Line Filter | |
| Maximum Current | 6A | |
| Maximum Voltage | 250V ac | |
| Mount Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Number of Stages | 2 | |
| Operating Frequency | 50/60 Hz | |
| Capacitance | 4700pF | |
| Inductance | 2 x 7.8 mH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 1mA | |
| Maximum Operating Temperature | 85°C | |
| Length | 114mm | |
| Height | 44.5mm | |
| Depth | 57mm | |
| Resistance | 220kΩ | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Power Line Filter | ||
Maximum Current 6A | ||
Maximum Voltage 250V ac | ||
Mount Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Number of Stages 2 | ||
Operating Frequency 50/60 Hz | ||
Capacitance 4700pF | ||
Inductance 2 x 7.8 mH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 1mA | ||
Maximum Operating Temperature 85°C | ||
Length 114mm | ||
Height 44.5mm | ||
Depth 57mm | ||
Resistance 220kΩ | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
RS PRO 6A Single Phase Power Line EMI Filter
A high quality EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.;Designed for chassis mounting and built to a Compact size the power line filter is Ideal for areas with limited space and is easily connected using the fast on 6.3 x 0.8mm.;Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and is Ideal for general purpose filtering. ;Suitable for use with a wide range of general electrical and electronic equipment, sensitive medical equipment, new energy, office and communication equipment.
Features and Benefits
Power line EMI filter;Voltage rated to 115/250 Vac;Current rated to 6A;Chassis mount;Inductance of 2 x 7.8mH;Capacitance of 1.0uF; 4700pF;Hipot Rating 2250vdc (line to ground), 500Vdc (line to line);IP40 rated;Fast on 6.3 x 0.8mm;Dimensions of 114 x 57 x 44.5mm;Mounting hole space 104mm;Weight of 400g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, Reach, RoHS, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
