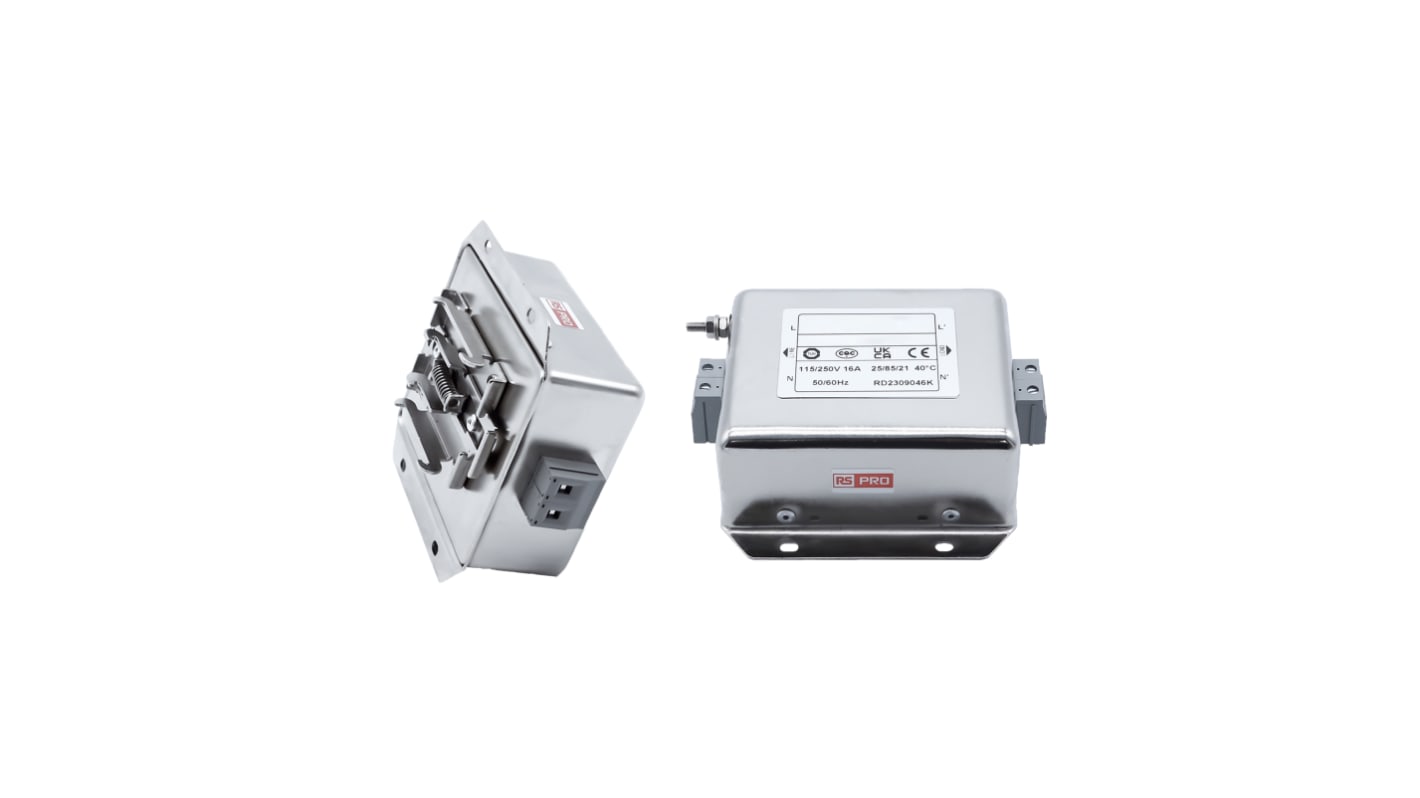

RS PRO 16A 250 V ac 50/60Hz, Chassis Mount, DIN Rail Power Line Filter, Terminal Block Single Phase

RS Stock No.:: 278-5146
Manufacturer:: RS PRO

RS PRO 16A 250 V ac 50/60Hz, Chassis Mount, DIN Rail Power Line Filter, Terminal Block Single Phase

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO 16A 250 V ac 50/60Hz, Chassis Mount, DIN Rail Power Line Filter, Terminal Block Single Phase

RS Stock No.: 278-5147

Each

PHP4,062.83

(exc. VAT)

PHP4,550.37

(inc. VAT)

RS Stock No.:: 278-5146
Manufacturer:: RS PRO

RS PRO Datasheet

Attribute	Value
Maximum Current Rating	16A
Maximum Voltage Rating	250 V ac
Mounting Type	Chassis Mount, DIN Rail
Termination Style	Terminal Block
Number of Phases	Single
Number of Stages	Single Stage
Operating Frequency	50/60Hz
Length	105mm
Depth	96mm
Capacitance	1.0uF, 10000pF
Height	41mm
Dimensions	105 x 96 x 41mm
Inductance	2 x 2.5mH
Minimum Operating Temperature	-25°C
Leakage Current	1.0/1.9mA
Maximum Operating Temperature	+85°C
Resistance	470kΩ

RS PRO 16A 250 V ac 50/60Hz, Chassis Mount, DIN Rail Power Line Filter, Terminal Block Single Phase

Alternative

RS PRO 16A DIN Rail Mount Single Phase Power Line EMI Filter
