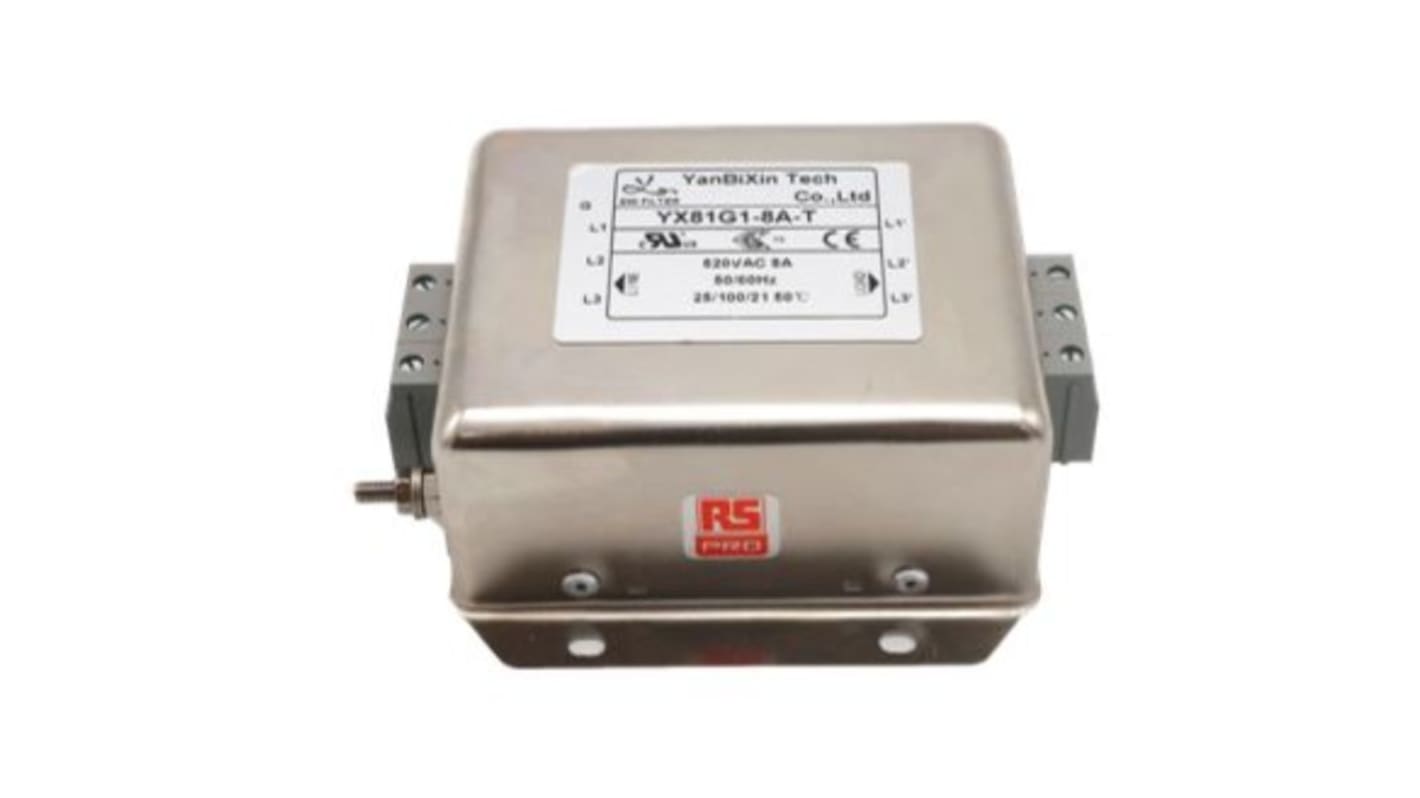

RS PRO 8A 300/520 V ac 50/60Hz, Chassis Mount Power Line Filter, Terminal Block 3 Phase

RS Stock No.:: 237-8738
Manufacturer:: RS PRO

RS PRO 8A 300/520 V ac 50/60Hz, Chassis Mount Power Line Filter, Terminal Block 3 Phase

Price Each (In a Box of 40)**

Was PHP3,771.376

You pay

PHP3,017.101

(exc. VAT)

PHP3,379.153

(inc. VAT)

11 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP7,000.00 (ex VAT)

Units	Per Unit	Per Box**
40 +	PHP3,017.101	PHP120,684.04

**price indicative

RS Stock No.:: 237-8738
Manufacturer:: RS PRO

RS PRO Datasheet

RS PRO Power Line Filter

This range of RS PRO Power Line Filters have been designed with the highest quality and versatility in mind

a compact component that can be connected to electrical devices to prevent external radio frequencies from impairing performance.
This power line filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits, and nearby lightning strikes.
This RS PRO filter is available with fuse holder for two (5*20mm) fuses (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing. There are a variety of parts and combinations to meet different customer's EMC tests.

Features and Benefits

Rated currents up to 10A

Quick connect(6.3*0.8mm)

There are a variety of

parts and combinations to meet different customer's EMC tests

Customized products according to customer's requirementss

Applications

These RS PRO Power Line Filters can ensure equipment runs safely and reliably by Preventing interference, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great size for small and medium-sized machines and household equipment and is a good way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Also available for purchase in a pack size of 1. Please see RS 237-8739

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Attribute	Value
Maximum Current Rating	8A
Maximum Voltage Rating	300/520 V ac
Mounting Type	Chassis Mount
Termination Style	Terminal Block
Number of Phases	3
Number of Stages	Single Stage
Operating Frequency	50/60Hz
Length	85
Depth	65
Height	39
Capacitance	0.22µF
Dimensions	856239mm
Inductance	3*2.5mH
Minimum Operating Temperature	-25°C
Leakage Current	1.7/2.6mA
Maximum Operating Temperature	+100°C
Resistance	1MΩ*3
