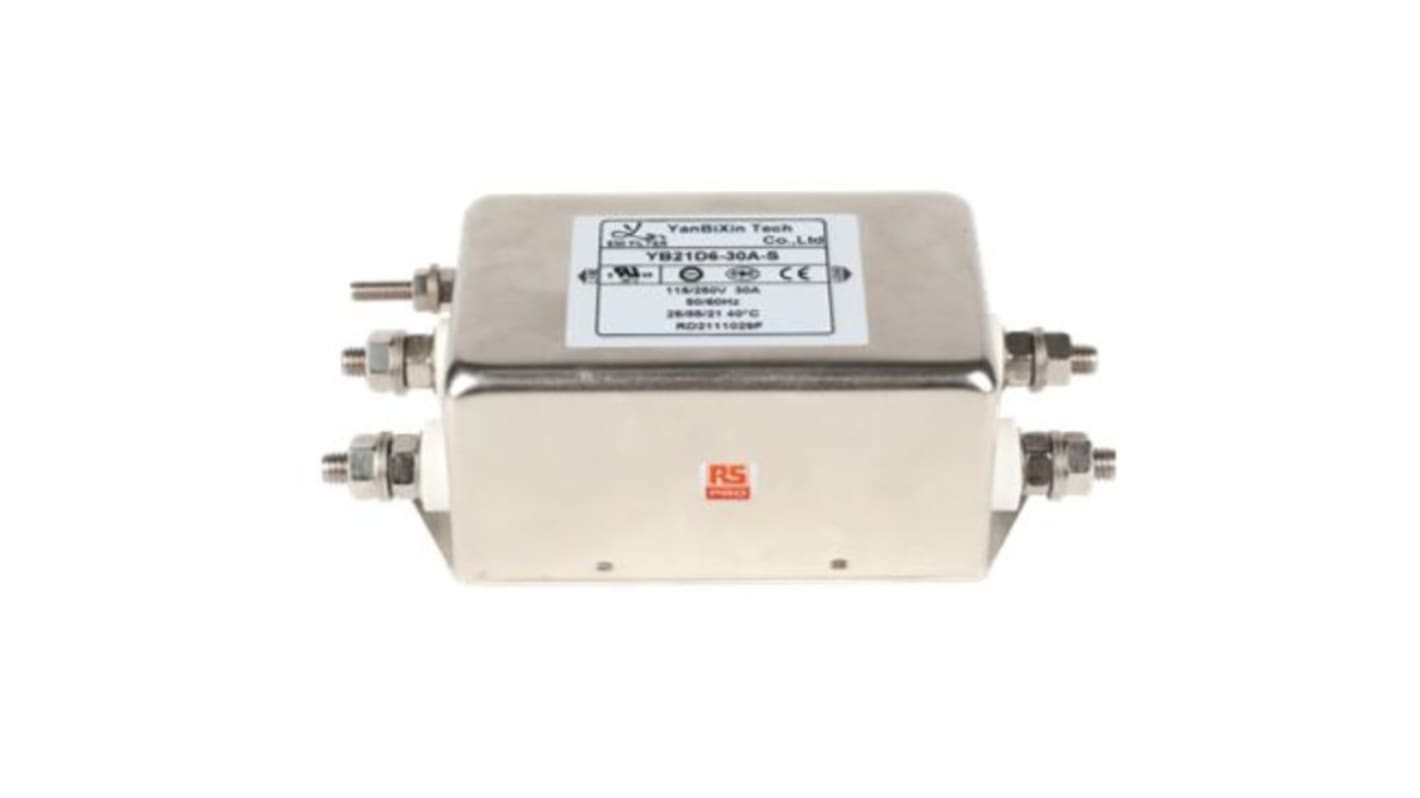

RS PRO 30A 115/250 V ac 50/60Hz, Chassis Mount EMI Filter, Screw, Single Phase
- RS Stock No.:
- 237-8709
- Manufacturer:
- RS PRO
Subtotal (1 box of 32 units)**
PHP99,829.66
(exc. VAT)
PHP111,809.22
(inc. VAT)
64 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP3,000.00 (ex VAT)
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 32 + | PHP3,119.677 | PHP99,829.664 |
**price indicative
- RS Stock No.:
- 237-8709
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Current Rating | 30A | |
| Maximum Voltage Rating | 115/250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw | |
| Number of Phases | 1 | |
| Number of Stages | Two Stage | |
| Operating Frequency | 50/60Hz | |
| Length | 114 | |
| Depth | 57 | |
| Height | 44.5 | |
| Capacitance | 0.47µF | |
| Inductance | 2*1.2mH | |
| Dimensions | 114*57*45.5mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.6/1.2mA | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 2.2MΩ | |
| Standards Met | UL 1283 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Current Rating 30A | ||
Maximum Voltage Rating 115/250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Screw | ||
Number of Phases 1 | ||
Number of Stages Two Stage | ||
Operating Frequency 50/60Hz | ||
Length 114 | ||
Depth 57 | ||
Height 44.5 | ||
Capacitance 0.47µF | ||
Inductance 2*1.2mH | ||
Dimensions 114*57*45.5mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.6/1.2mA | ||
Maximum Operating Temperature +85°C | ||
Resistance 2.2MΩ | ||
Standards Met UL 1283 | ||
