TDK, B84143A*166 20 A 520V ac 50Hz, 60 Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase
- RS Stock No.:
- 170-1360
- Mfr. Part No.:
- B84143A0020A166
- Manufacturer:
- TDK

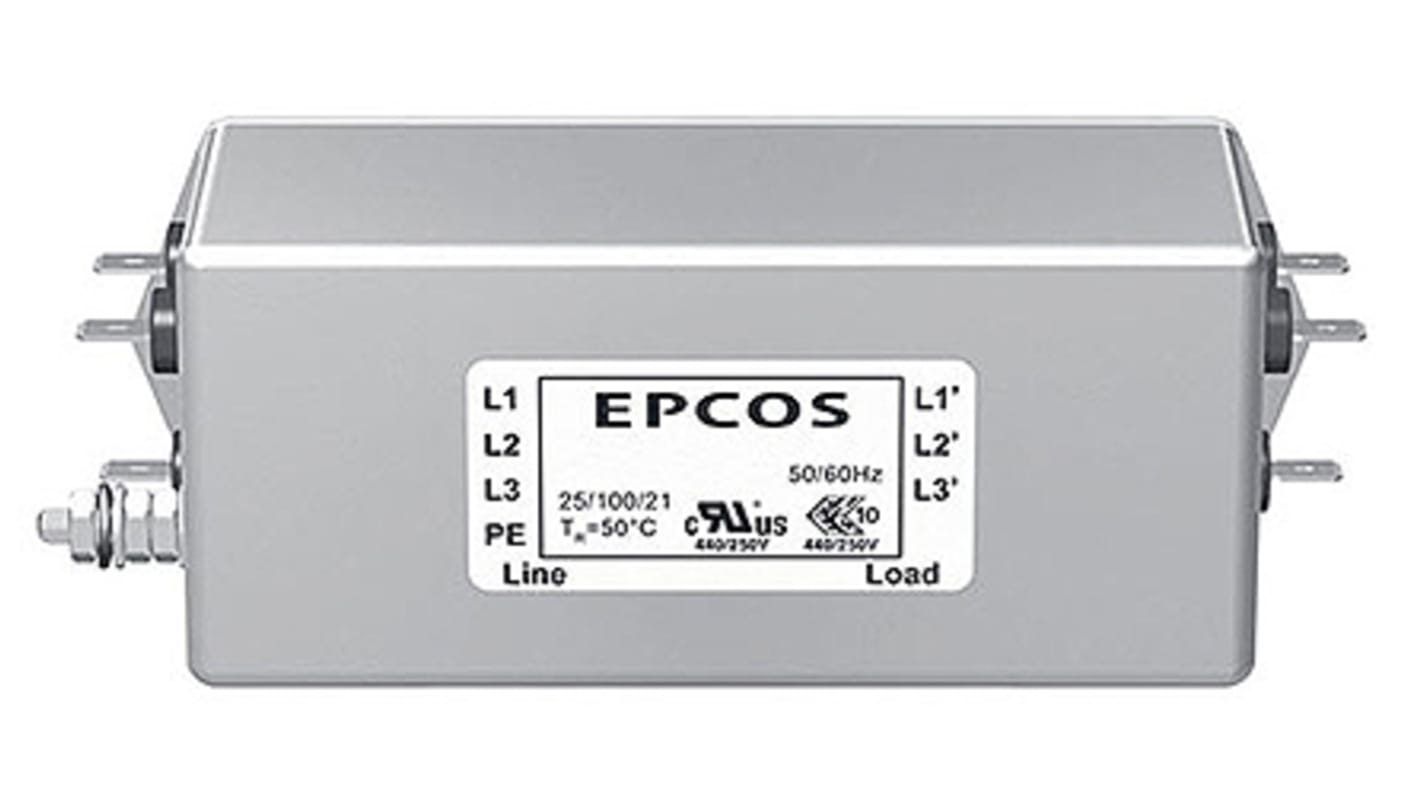

This image is representative of the product range
Subtotal (1 box of 16 units)*
PHP105,571.824
(exc. VAT)
PHP118,240.448
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 16 + | PHP6,598.239 | PHP105,571.82 |
*price indicative
- RS Stock No.:
- 170-1360
- Mfr. Part No.:
- B84143A0020A166
- Manufacturer:
- TDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Maximum Current | 20A | |
| Product Type | EMC Filter | |
| Maximum Voltage | 520V ac | |
| Mount Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Number of Stages | 1 | |
| Series | B84143A*166 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 100°C | |
| Leakage Current | 3.1mA | |
| Height | 53mm | |
| Length | 133mm | |
| Depth | 58mm | |
| Resistance | 4.9mΩ | |
| Standards/Approvals | UL1283 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Maximum Current 20A | ||
Product Type EMC Filter | ||
Maximum Voltage 520V ac | ||
Mount Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Number of Stages 1 | ||
Series B84143A*166 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 100°C | ||
Leakage Current 3.1mA | ||
Height 53mm | ||
Length 133mm | ||
Depth 58mm | ||
Resistance 4.9mΩ | ||
Standards/Approvals UL1283 | ||
B84143-Ax-R Series
Very high insertion loss
Low leakage current
Optimised for long motor cables under full load
Applications include frequency converters for motor drives including lifts, pumps, traction systems, conveyor systems, Air conditioning systems, wind-driven power plants, and power supplies
Standards
UL 1283, CSA 22.2 No. 8 1996
