ROHM BD7693FJ-E2, PFC Controller 50 kHz 8-Pin, SOP 38 V
- RS Stock No.:
- 235-2584
- Mfr. Part No.:
- BD7693FJ-E2
- Manufacturer:
- ROHM

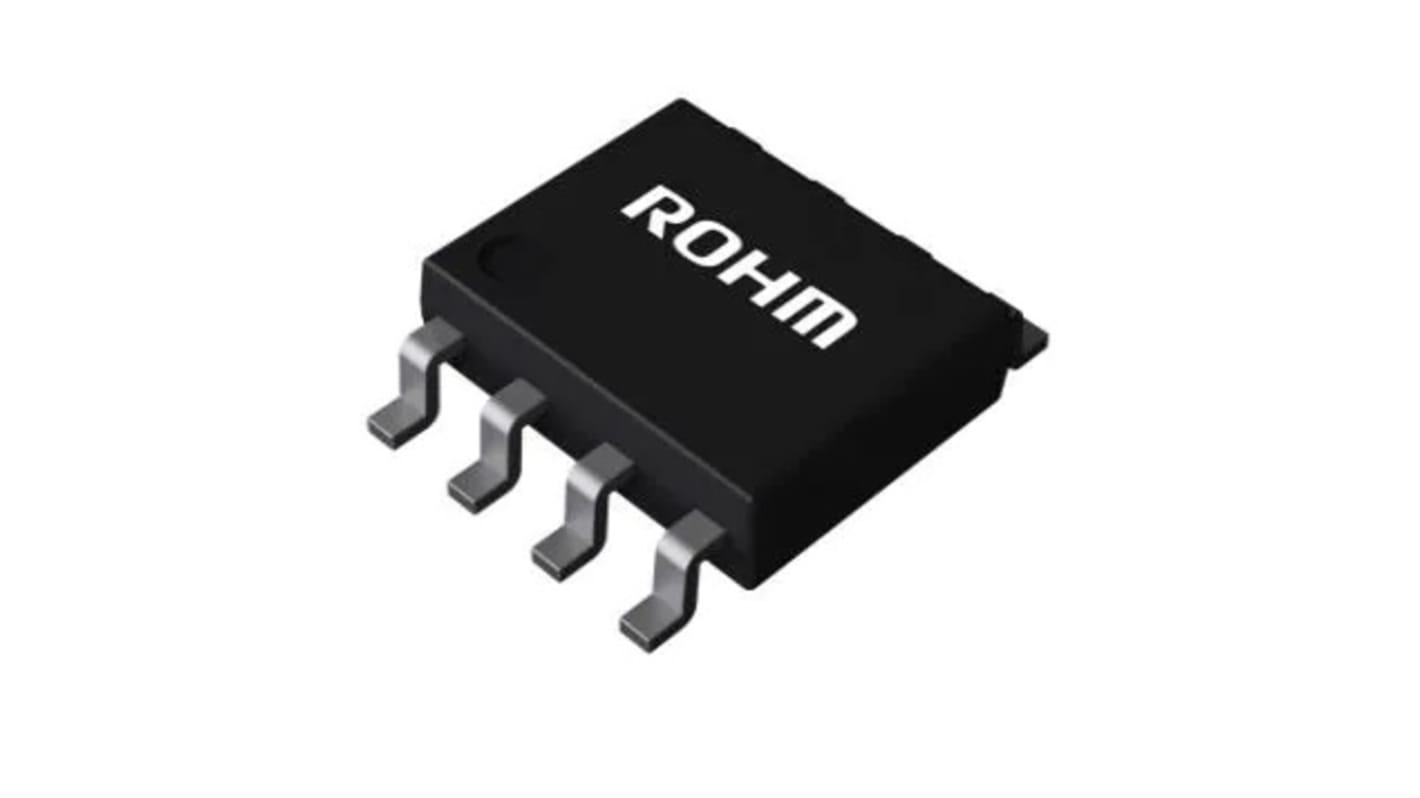

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2500 units)*
PHP58,732.50
(exc. VAT)
PHP65,780.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stock information currently inaccessible
Units | Per Unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | PHP23.493 | PHP58,732.50 |
| 5000 + | PHP21.227 | PHP53,067.50 |
*price indicative
- RS Stock No.:
- 235-2584
- Mfr. Part No.:
- BD7693FJ-E2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | PFC Controller | |
| Start-up Supply Current | 100μA | |
| Sub Type | Power Factor Controller | |
| Maximum Source Current | -0.5A | |
| Maximum Sink Current | 1A | |
| Switching Frequency | 50kHz | |
| Supply Current | 2mA | |
| Zero Power Detection | Yes | |
| Mount Type | Surface | |
| Package Type | SOP | |
| Minimum Supply Voltage | 10V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 38V | |
| Minimum Operating Temperature | -40°C | |
| Width | 3.9 mm | |
| Height | 1.3mm | |
| Length | 4.9mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 105°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type PFC Controller | ||
Start-up Supply Current 100μA | ||
Sub Type Power Factor Controller | ||
Maximum Source Current -0.5A | ||
Maximum Sink Current 1A | ||
Switching Frequency 50kHz | ||
Supply Current 2mA | ||
Zero Power Detection Yes | ||
Mount Type Surface | ||
Package Type SOP | ||
Minimum Supply Voltage 10V | ||
Pin Count 8 | ||
Maximum Supply Voltage 38V | ||
Minimum Operating Temperature -40°C | ||
Width 3.9 mm | ||
Height 1.3mm | ||
Length 4.9mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 105°C | ||
Automotive Standard No | ||
The ROHM power factor correction IC for AC/DC supplies the system which is suitable for all the products needing power factor improvement. The PFC adopts boundary conduction mode, and switching loss reduction and noise reduction are possible by zero current detection. This IC incorporates a circuit lowering total harmonics distortion and can support IEC61000-3-2 Class-C.
Low THD circuit incorporation
Low power consumption
ZCD by auxiliary winding
Error amplifier input short protection
Stable MOSFET gate drive
Soft start
