Festo Vacuum Filter - VAF-DB Series, 80 μm, G 1/4 Female Port Connection

RS Stock No.:: 202-3611
Mfr. Part No.:: VAF-DB-1/4
Manufacturer:: Festo

Festo Vacuum Filter - VAF-DB Series, 80 μm, G 1/4 Female Port Connection

Subtotal (1 unit)*

PHP5,996.01

(exc. VAT)

PHP6,715.53

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

20 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP5,996.01

*price indicative

RS Stock No.:: 202-3611
Mfr. Part No.:: VAF-DB-1/4
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Size	G 1/4 Female
	Product Type	Vacuum Filter
	Filtration Size	80μm
	Connection Thread Standard	G
	Series	VAF-DB
	Housing Material	Polypropylene
	Seal Material	Nitrile Rubber (NBR)
	Element Material	Polyethylene
	Maximum Operating Temperature	50°C
	Maximum Operating Pressure	0 bar
	Minimum Operating Pressure	-0.95bar
	Minimum Operating Temperature	-5°C
	Standards/Approvals	RoHS

	Select all
	Brand Festo
	Port Size G 1/4 Female
	Product Type Vacuum Filter
	Filtration Size 80μm
	Connection Thread Standard G
	Series VAF-DB
	Housing Material Polypropylene
	Seal Material Nitrile Rubber (NBR)
	Element Material Polyethylene
	Maximum Operating Temperature 50°C
	Maximum Operating Pressure 0 bar
	Minimum Operating Pressure -0.95bar
	Minimum Operating Temperature -5°C
	Standards/Approvals RoHS

COO (Country of Origin):: DE

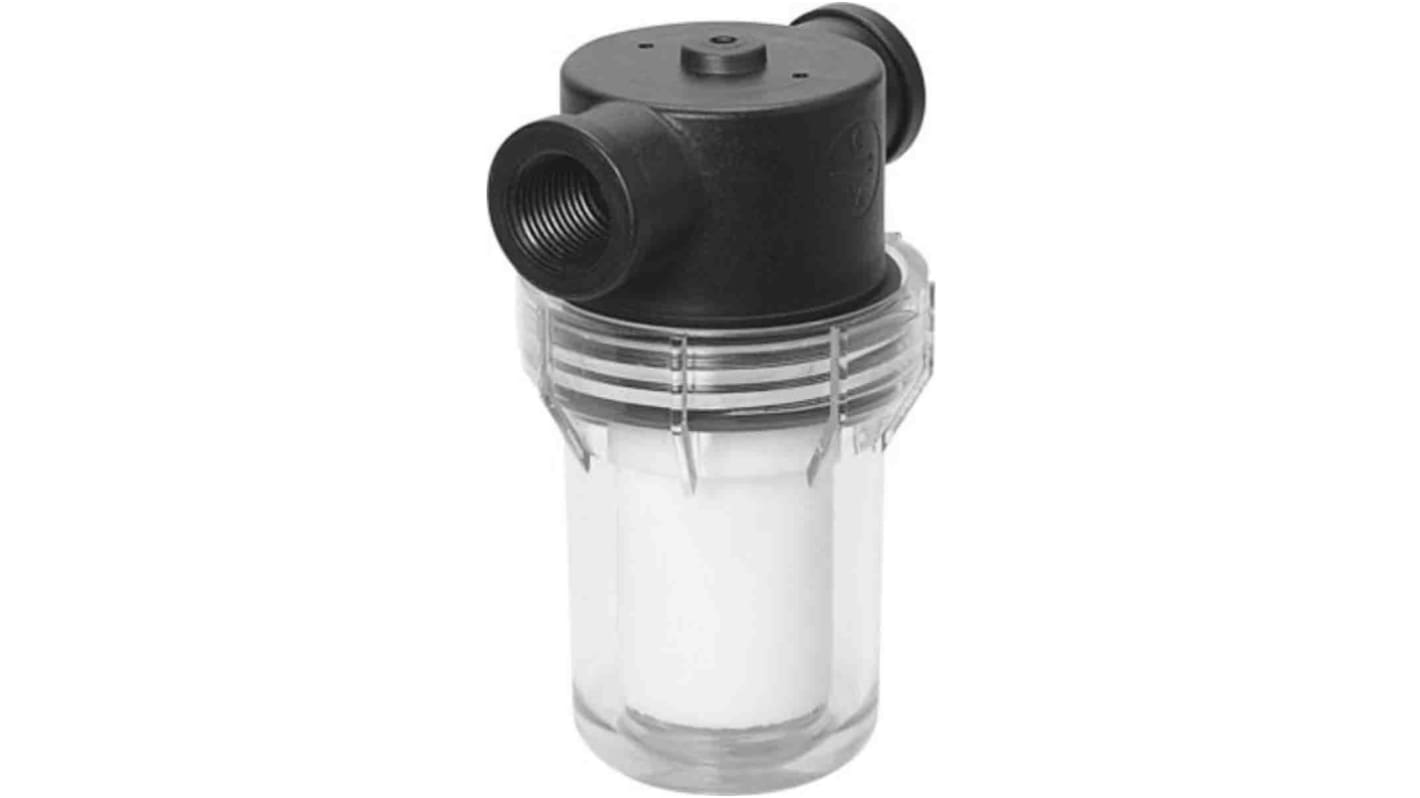

Festo Vacuum Filter, G 1/4 Connection - VAF-DB-1/4

Need to prevent dust from causing issues with your vacuum pads? This vacuum filter from Festo will do the job. It's suitable for use in an open vacuum system and will remove any particles larger than 80μm from the circulating air to keep your system operating smoothly. The filter can be installed inline with wall or surface fixings. The housing is made from reinforced PP (polypropylene) which makes the unit strong and light. This device can be used at pressures between -0.95 bar and 0 bar.

• Reliable nitrile rubber seals guard against leakage

• G 1/4 connections are compatible with a wide range of equipment

• Vertical orientation makes it suitable for installation in horizontal air lines

Applications

• Warehouses and distribution centres

• Engineering workshops

• Clean rooms

Why should I use a vacuum filter?

Vacuum filters keep the air in your workspace clean. Installing these in your system can also guard against dust interfering with the performance of sensitive equipment.

Are vacuum filters easy to maintain?

Because of their compact size and light weight, vacuum filters are easy to manage when you need to make repairs or modifications to your system.
