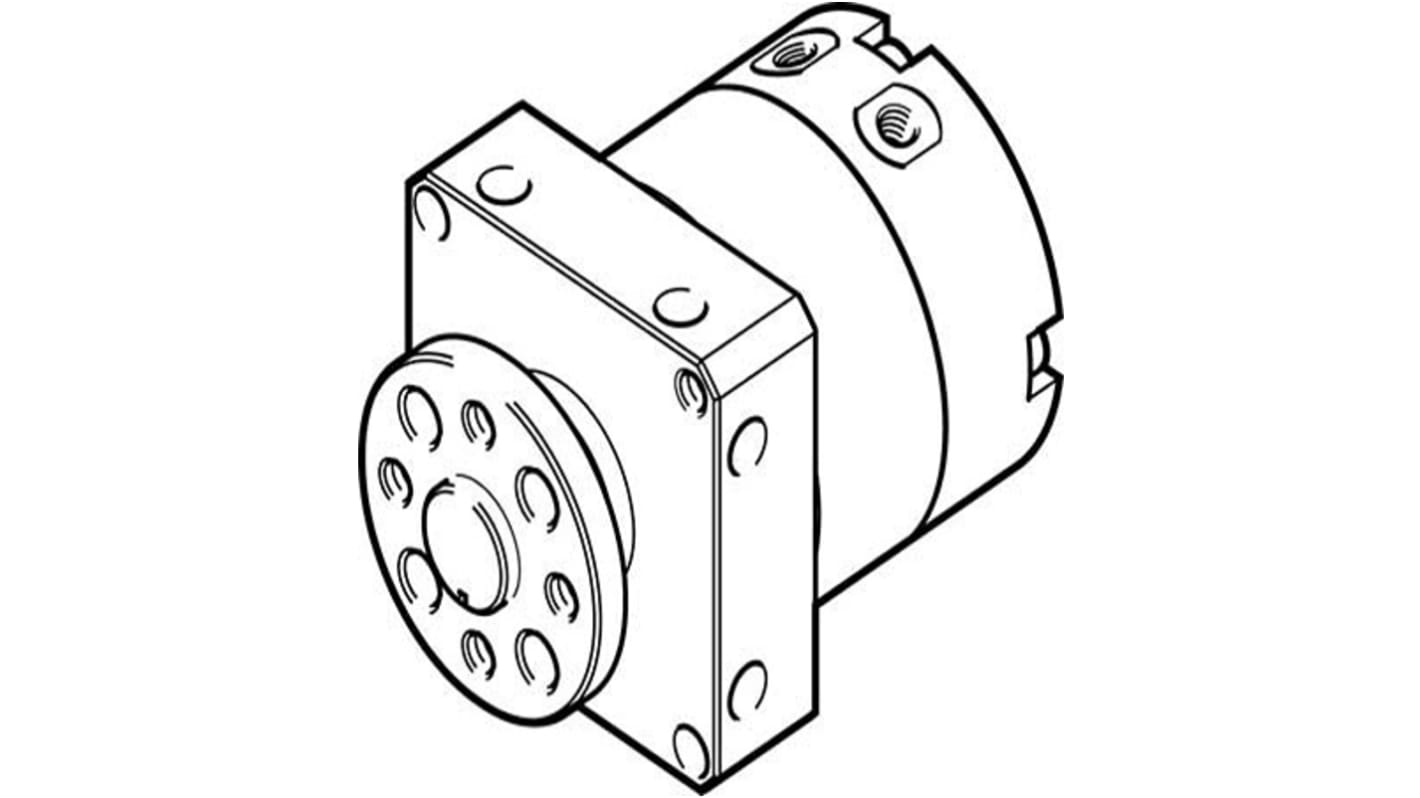

Festo 8 bar Double Acting Action Pneumatic Rotary Actuator, 8 mm Bore, 90 °
- RS Stock No.:
- 271-6277
- Mfr. Part No.:
- DSM-T-8-90-P-FW
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP34,745.71
(exc. VAT)
PHP38,915.20
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 15, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP34,745.71 |
*price indicative
- RS Stock No.:
- 271-6277
- Mfr. Part No.:
- DSM-T-8-90-P-FW
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Rotary Actuator | |
| Action Type | Double Acting | |
| Shaft Type | High Alloy Stainless Steel | |
| Bore Size | 8 mm | |
| Maximum Operating Pressure | 8 bar | |
| Cushioning Type | Elastic | |
| Minimum Operating Temperature | 0°C | |
| Angle of Rotation | 90° | |
| Maximum Operating Temperature | 60°C | |
| Weight | 117g | |
| Standards/Approvals | VDMA24364-B2-L, RoHS-compliant, ISO 8573-1:2010 | |
| Port Thread Size | M3 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Rotary Actuator | ||
Action Type Double Acting | ||
Shaft Type High Alloy Stainless Steel | ||
Bore Size 8 mm | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Elastic | ||
Minimum Operating Temperature 0°C | ||
Angle of Rotation 90° | ||
Maximum Operating Temperature 60°C | ||
Weight 117g | ||
Standards/Approvals VDMA24364-B2-L, RoHS-compliant, ISO 8573-1:2010 | ||
Port Thread Size M3 | ||
- COO (Country of Origin):
- DE
The Festo semi-rotary drive with tandem rotary vanes and swivel angle is infinitely adjustable across the entire swivel range. The polyurethane ensures a long service life for the rotary vane and sealing system.
High precision with metal fixed stops
