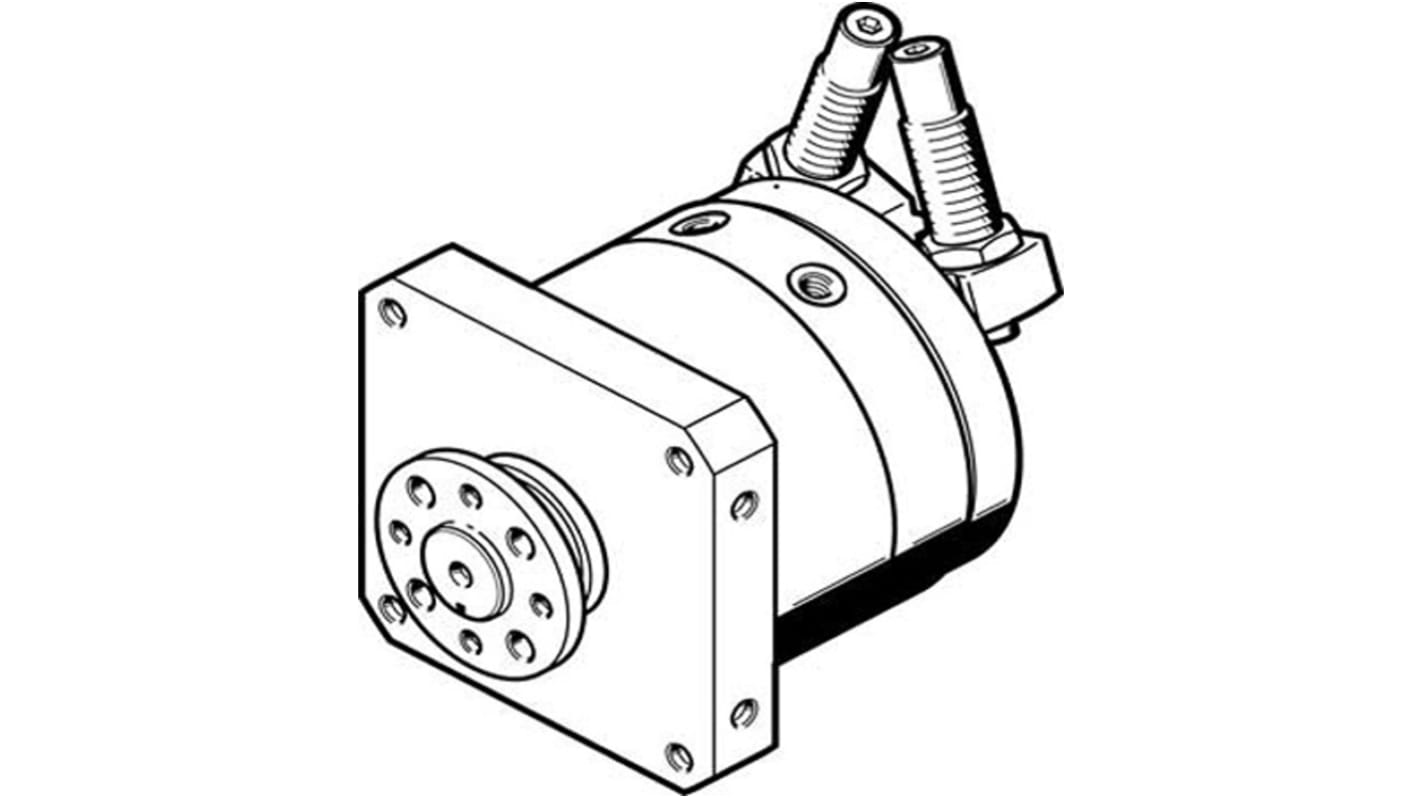

Festo 10 bar Double Acting Action Pneumatic Rotary Actuator, 32 mm Bore, 246 °
- RS Stock No.:
- 271-6251
- Mfr. Part No.:
- DSM-T-32-270-CC-FW-A-B
- Manufacturer:
- Festo
Subtotal (1 unit)*
PHP74,377.07
(exc. VAT)
PHP83,302.32
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP74,377.07 |
*price indicative
- RS Stock No.:
- 271-6251
- Mfr. Part No.:
- DSM-T-32-270-CC-FW-A-B
- Manufacturer:
- Festo
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Rotary Actuator | |
| Shaft Type | Steel Nickel Plated | |
| Action Type | Double Acting | |
| Bore Size | 32 mm | |
| Maximum Operating Pressure | 10 bar | |
| Cushioning Type | Shock Absorber at Both Ends | |
| Maximum Radial Force | 200N | |
| Minimum Operating Temperature | -10°C | |
| Maximum Axial Force | 75N | |
| Maximum Torque Rating | 20Nm | |
| Angle of Rotation | 246° | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | VDMA464BL, ISO 8571:010, RoHS | |
| Weight | 2165g | |
| Port Thread Size | 1/8 in | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Rotary Actuator | ||
Shaft Type Steel Nickel Plated | ||
Action Type Double Acting | ||
Bore Size 32 mm | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Shock Absorber at Both Ends | ||
Maximum Radial Force 200N | ||
Minimum Operating Temperature -10°C | ||
Maximum Axial Force 75N | ||
Maximum Torque Rating 20Nm | ||
Angle of Rotation 246° | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals VDMA464BL, ISO 8571:010, RoHS | ||
Weight 2165g | ||
Port Thread Size 1/8 in | ||
- COO (Country of Origin):
- DE
The Festo semi-rotary drive with tandem rotary vanes and swivel angle is infinitely adjustable across the entire swivel range. The polyurethane ensures a long service life for the rotary vane and sealing system.
High precision with metal fixed stops
